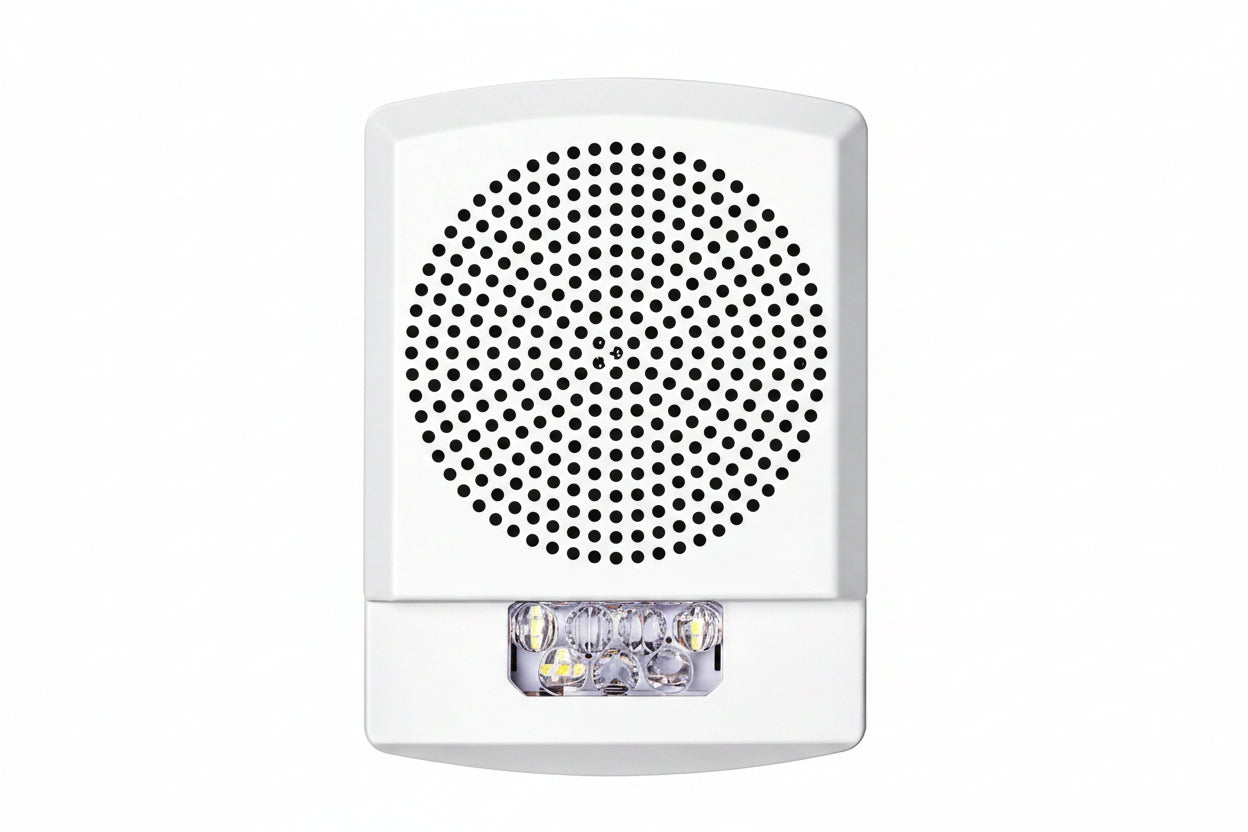

Eaton ELFHSW Wheelock Eluxa Low Frequency Sounder Strobe, Wall, FIRE Lettering, 24V, 110/177 cd, Indoor, White

The Eaton ELFHSW is a wall-mount Wheelock Eluxa low frequency sounder strobe with FIRE lettering, built for indoor fire alarm systems. It is designed to meet NFPA 72 low frequency sounder requirements for sleeping rooms, covering both fire and CO signaling in a single device. It suits installers and facility owners who need compliant notification in bedrooms and similar spaces, and it stands out for its low-profile white housing and LED strobe.

Key features

• Meets NFPA 72 fire and CO low frequency sounder codes for sleeping rooms in one device.
• Offers three horn patterns: Continuous, T3, and T3/T4.
• Uses LED technology, which Eaton says gives the industry's lowest current draw.
• Has a low-profile design with a small footprint and a modern look.
• Candela is field selectable between 110 and 177 cd.
• Lettering options include ALERT, CO, or no lettering.

Specifications

Model: ELFHSW

Brand: Eaton

Product line: Eluxa Indoor

Product type: Low frequency sounder and sounder strobe

Alarm type: Audible

Lettering: FIRE

Candela settings: 110/177 cd

Voltage: 24V

Input voltage: 33V DC

Power source: DC power

Lamp type: LED

Lens color: Clear

Color: White

Mount type: Wall mount

Application: Indoor

Connectivity: Wired

Shape: Rectangular

Durability: UV resistant

Height: 6.35″

Width: 4.56″

Depth: 2.63″

Weight: 1.20 lb

Operating temperature: 32-122°F

Certifications and standards: FCC

Environmental certification: RoHS compliant

Packaged quantity: 1

Package contents: Eluxa ELFHSW sounder/strobe, mounting plate

Installation notes

Mount the device on the wall using the included mounting plate, and confirm the candela setting and horn pattern match the project design before closing out the device. Keep it indoors within the listed temperature range, and test the unit after wiring to verify the signal operates as expected.
