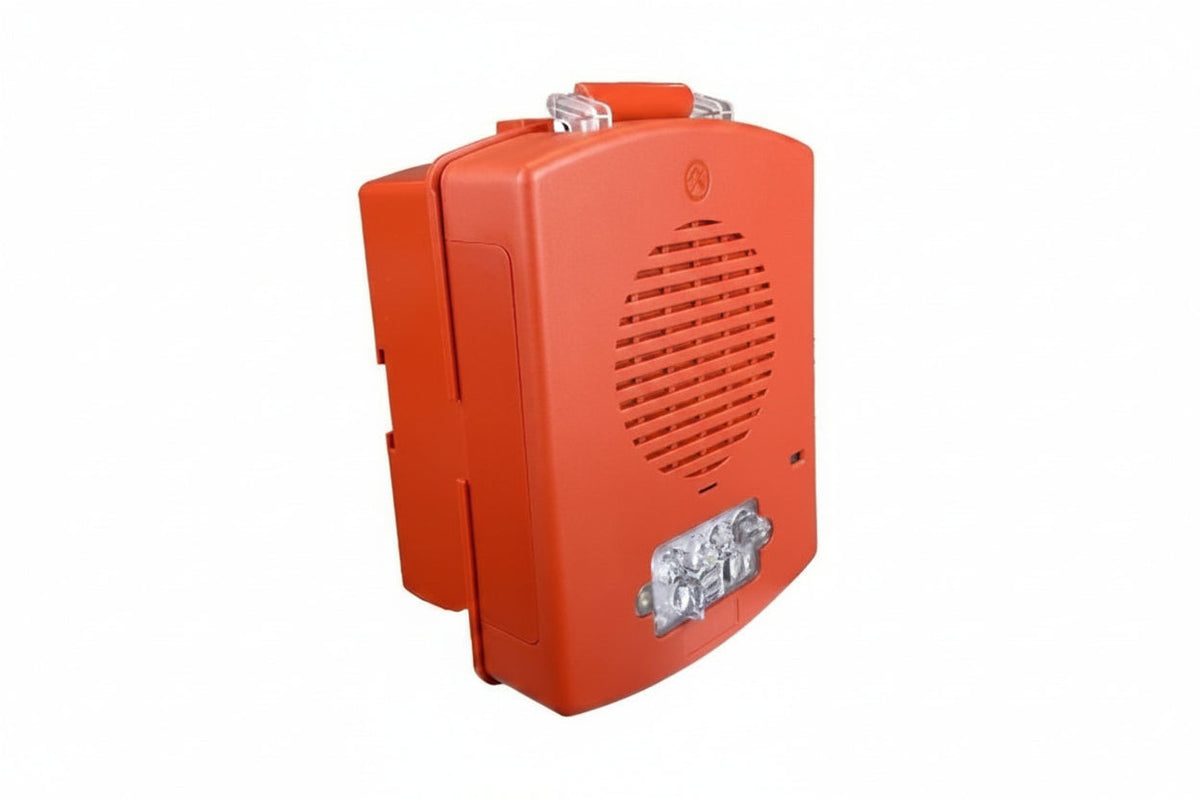

Eaton EL4XSPST-FR Eluxa Outdoor Series Speaker Strobe, 4X, IP66, Red

The Eaton EL4XSPST-FR is a red Eluxa Outdoor Series speaker strobe for fire alarm systems that need both voice or tone notification and a visible strobe in weather-exposed locations. It suits installers outfitting exterior areas and businesses that want a rectangular, clean-looking device in a clear-lens, weatherproof housing. It stands out for its choice of eight tones, its selectable 25 or 70 VRMS operation, and a design with no visible mounting screws.

Key features

• Offers a choice of eight different tones, and the tone can be coded without affecting the strobe.
• Requires two circuits (NACs): one for the Eluxa LED strobe and one for the Multi-Tone audible.
• Runs on 25 or 70 VRMS, with power taps from 1/8W up to 8W at 70V.
• Produces 76-94 dBA depending on the setting.
• Mounts on a wall or ceiling, and has no visible mounting screws.
• Synchronizes with Wheelock DSM SyncModules, PS Power Supplies, Intelligent Notification Controller or SAFEPATH products, and xenon and LED strobes can be mixed in the same field of view.

Specifications

Brand: Eaton

Model: EL4XSPST-FR

Product Type: Speaker Strobe

Product Line: Eluxa Outdoor Weatherproof

Product Series: Eluxa weatherproof

Color: Red

Lens Color: Clear

Shape: Rectangular

Indoor/Outdoor: Outdoor

Height: 6.00″

Width: 6.00″

Depth: 8.00″

Weight: 4.00 lb

Packaged Quantity: 1

Installation notes

Plan for two separate NAC circuits to each device, one for the strobe and one for the audible, and confirm the speaker line voltage and tap setting before commissioning. Choose a wall or ceiling location that gives clear sight lines to the strobe and covers the area where the tone needs to be heard.
