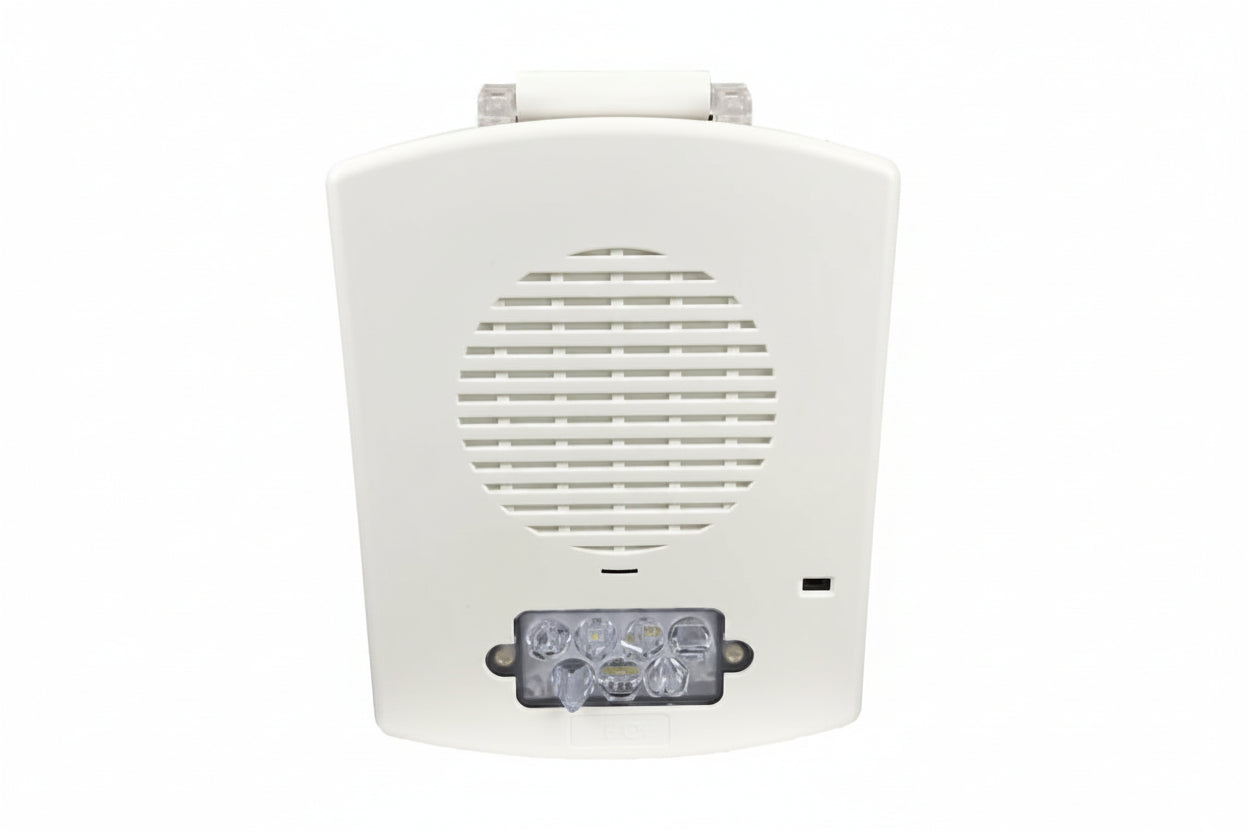

Eaton EL3RSPST-FW Outdoor Speaker Strobe with 3R Plate, 'FIRE' Marked, White

The Eaton EL3RSPST-FW is an outdoor fire alarm speaker strobe from the Eluxa Outdoor Weatherproof line, supplied with a 3R plate and marked "FIRE" in white. It handles voice notification and visual alerting in one device, which suits installers outfitting exterior areas of commercial and public buildings. It stands out for its clean, modern look with no visible mounting screws, and it mounts on either a wall or a ceiling.

Key features

• The design is robust, built for an outdoor speaker strobe.
• The modern, low-profile look hides the mounting screws.
• It can be mounted on a wall or on a ceiling.
• Speaker power is selectable from 1/8W up to 8W at 70V.
• It operates on either 25 or 70 VRMS circuits.
• Sound output ranges from 76 to 94 dBA, depending on the setting.

Specifications

Brand: Eaton

Model: EL3RSPST-FW

Product Line: Eluxa Outdoor Weatherproof

Product Type: Speaker Strobe

Color: White

Lens Color: Clear

Indoor/Outdoor: Outdoor

Shape: Rectangular

Width: 6.00″

Height: 6.00″

Depth: 8.00″

Weight: 4.00 lb

Packaged Quantity: 1

Installation notes

Choose the mounting surface and the speaker tap and sound level settings before final installation, and match the device to the 25 or 70 VRMS circuit it will be wired to. Allow for the 8.00″ depth when planning the location, and test the audible and visual output after installation as part of commissioning.
