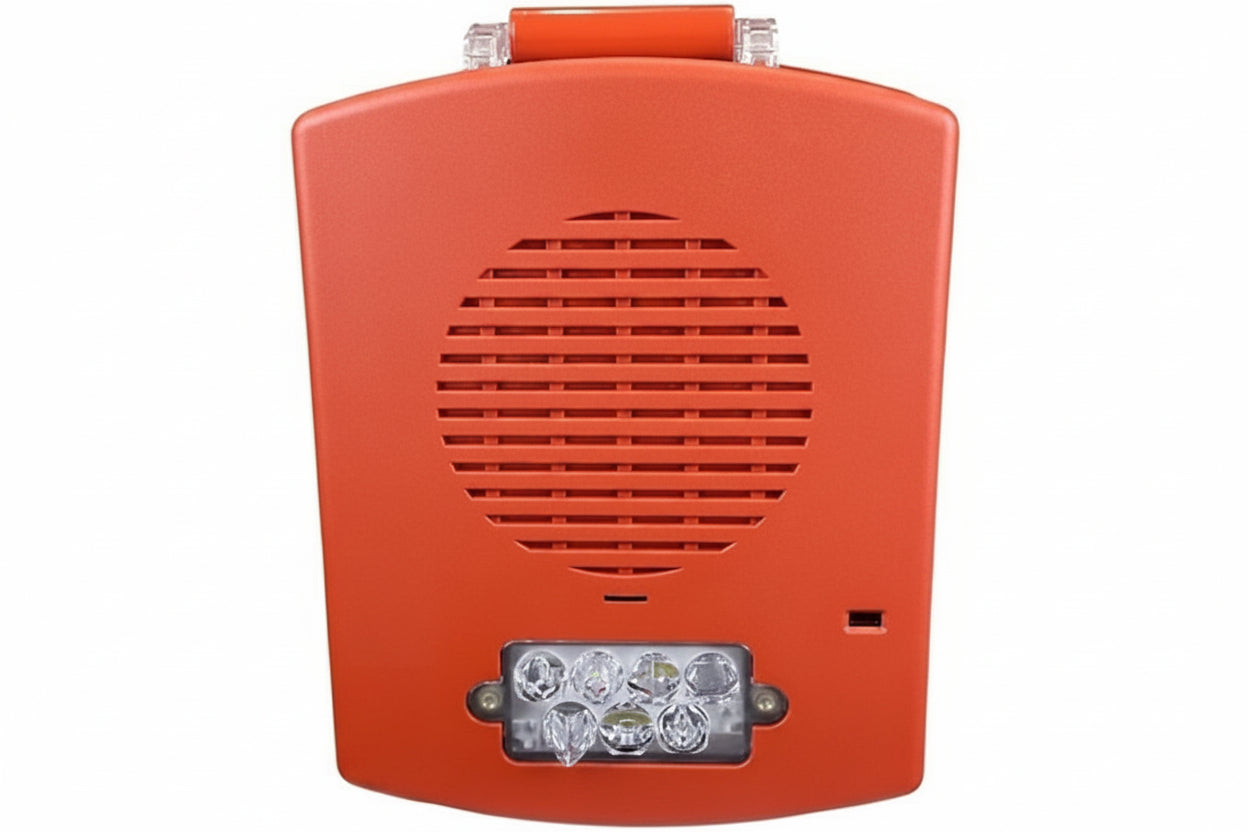

Eaton EL3RSPST-FR Eluxa NEMA 3R Speaker Strobe, Red

The Eaton EL3RSPST-FR Eluxa is a red, NEMA 3R outdoor speaker strobe that combines voice or tone audio with a visual strobe in a single fire alarm notification device. It suits installers and facility owners who need weatherproof audible and visual notification on exterior walls or ceilings. Its clean, modern look with no visible mounting screws helps it blend in on finished surfaces.

Key features

• The robust design is built for outdoor use as part of the Eluxa Outdoor Weatherproof line.
• Sleek, modern styling hides the mounting screws for a cleaner finished look.
• It mounts on either a wall or a ceiling, which gives you flexibility in placement.
• Power taps run from 1/8W up to 8W on a 70V system.
• It operates on either 25 or 70 VRMS speaker circuits.
• Sound output ranges from 76 to 94 dBA, depending on the setting.

Specifications

Brand: Eaton

Model: EL3RSPST-FR

Product Line: Eluxa Outdoor Weatherproof

Product Type: Speaker Strobe

Color: Red

Lens Color: Clear

Shape: Rectangular

Packaged Quantity: 1

Height: 6.00″

Width: 6.00″

Depth: 8.00″

Weight: 4.00 lb

Installation notes

Choose the wall or ceiling location with coverage in mind, and confirm the speaker circuit voltage (25 or 70 VRMS) and the wattage and sound level settings before final commissioning. Keep cable entries sealed and the device mounted as intended so the weather-resistant design does its job outdoors.
