Eaton DSM-12/24-R Wall Mounted 12/24V Wheelock DSM Sync Module, Red

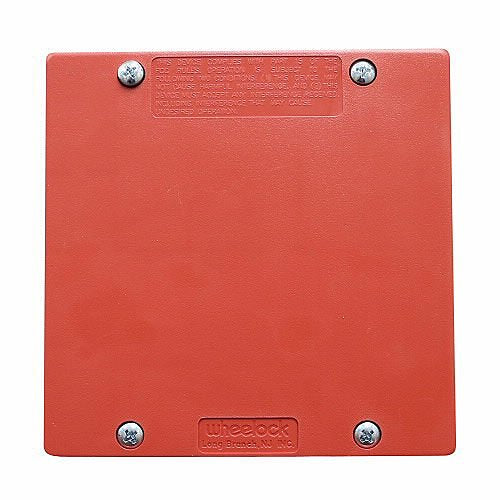

The Eaton DSM-12/24-R is a wall-mounted Wheelock DSM sync module in red, built for fire alarm installers who need to drive Wheelock-compatible appliances from a fire alarm control panel. It takes separate strobe and audible inputs from the panel and converts them into a single output for the connected appliances. It handles 3 amps per circuit at 12 or 24V DC and draws little operating current.

Key features

• Accepts independent strobe and audible inputs from the FACP and combines them into one output.
• That single output connects to Wheelock-compatible appliances.
• Handles 3 amps per circuit at 12 or 24V DC.
• Draws low operating current.
• Works with all standard fire alarm control panels.
• Meets the NFPA-72 Temporal Pattern requirement when used with the Series AS/AH and/or Series Exceder.

Specifications

Brand: Eaton

Model: DSM-12/24-R

Product Line: Eaton Wheelock

Product Type: Sync module

Color: Red

Mount Type: Wall Mount

Input Voltage: 24V DC

Compatibility: Fire Alarm Control Panels

Certifications & Standards: UL

Height: 5.00″

Width: 5.00″

Depth: 0.33″

Weight: 0.52 lb

Packaged Quantity: 1

Country of Origin: US

Installation notes

Mount the module on a wall and keep the strobe and audible inputs from the panel separate, so the module can combine them into the single output for the appliances. Confirm the circuit load stays within the module's current rating and test the synchronized operation during commissioning.
