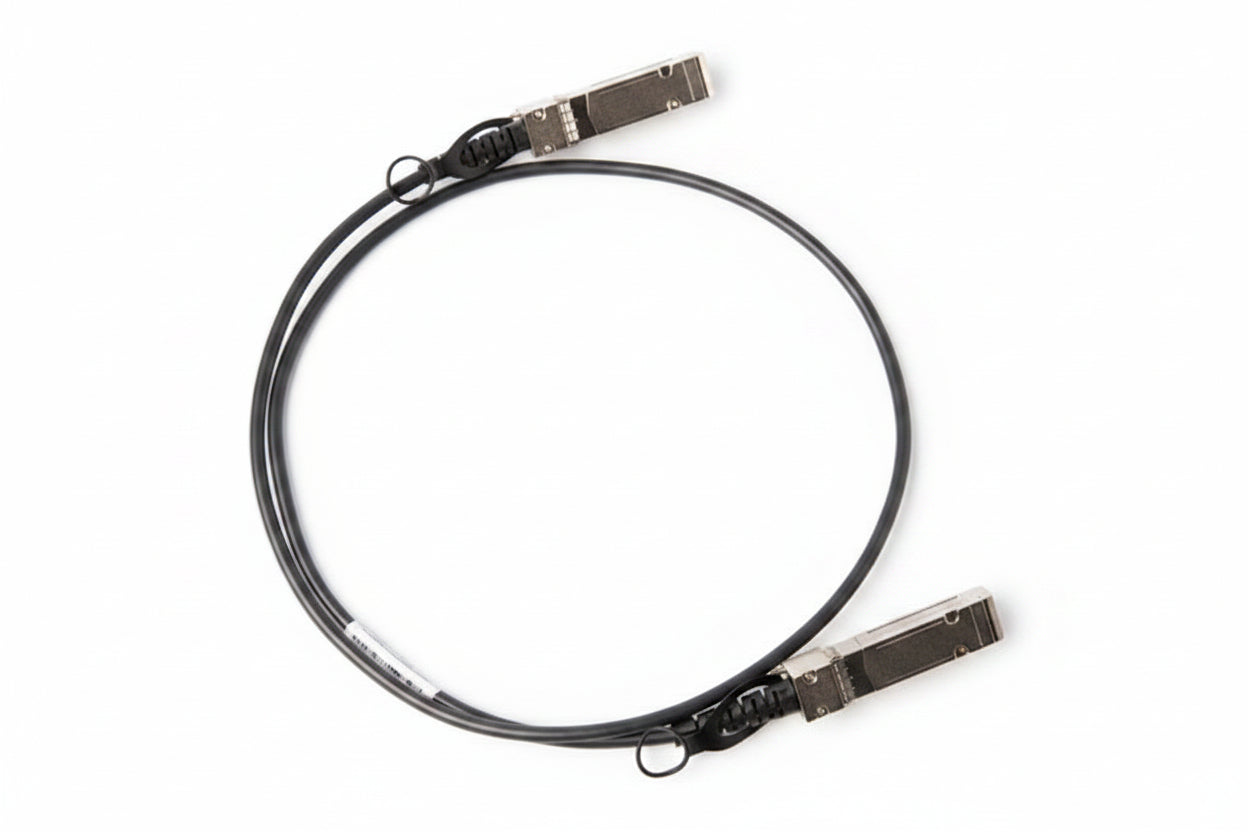

Araknis Networks AN-SFP-10-D-1 SFP+ Transceiver Module, DAC Connector, 10Gbps, 1m

The Araknis Networks AN-SFP-10-D-1 is a 1m passive copper SFP+ direct attach cable (DAC) that carries 10Gbps data between ports. It suits server racks and short runs, and it is optimized for Araknis switches. Pull-to-release latches and hot-swappable port changes make it easy to swap.

Key features

• Passive copper DAC design for high-speed data over short distances.
• Supports 10Gbps data transfer.
• Pull-to-release latches make swapping simple.
• Hot-swappable, so ports can be changed without a full shutdown.
• Plug-and-play installation with no extra setup listed.
• Durable metallic enclosure; also offered in a 3m length.

Specifications

Brand: Araknis

Model: AN-SFP-10-D-1

Product Type: Transceiver Module

Connector Type: DAC

Cable Type: Passive Copper

Data Transfer Rate: 10Gbps

American Wire Gauge: 30AWG

Dimensions: 39.37″ x 0.47″ x 0.53″

Operating Temperature: -4 to 185°F

Storage Temperature: -40 to 185°F

Installation notes

Plan the cable route in advance so the 1m length reaches both ports without strain, and avoid tight bends in the cable. Seat each connector fully until it latches, and pull the latch tab to release it when swapping.
