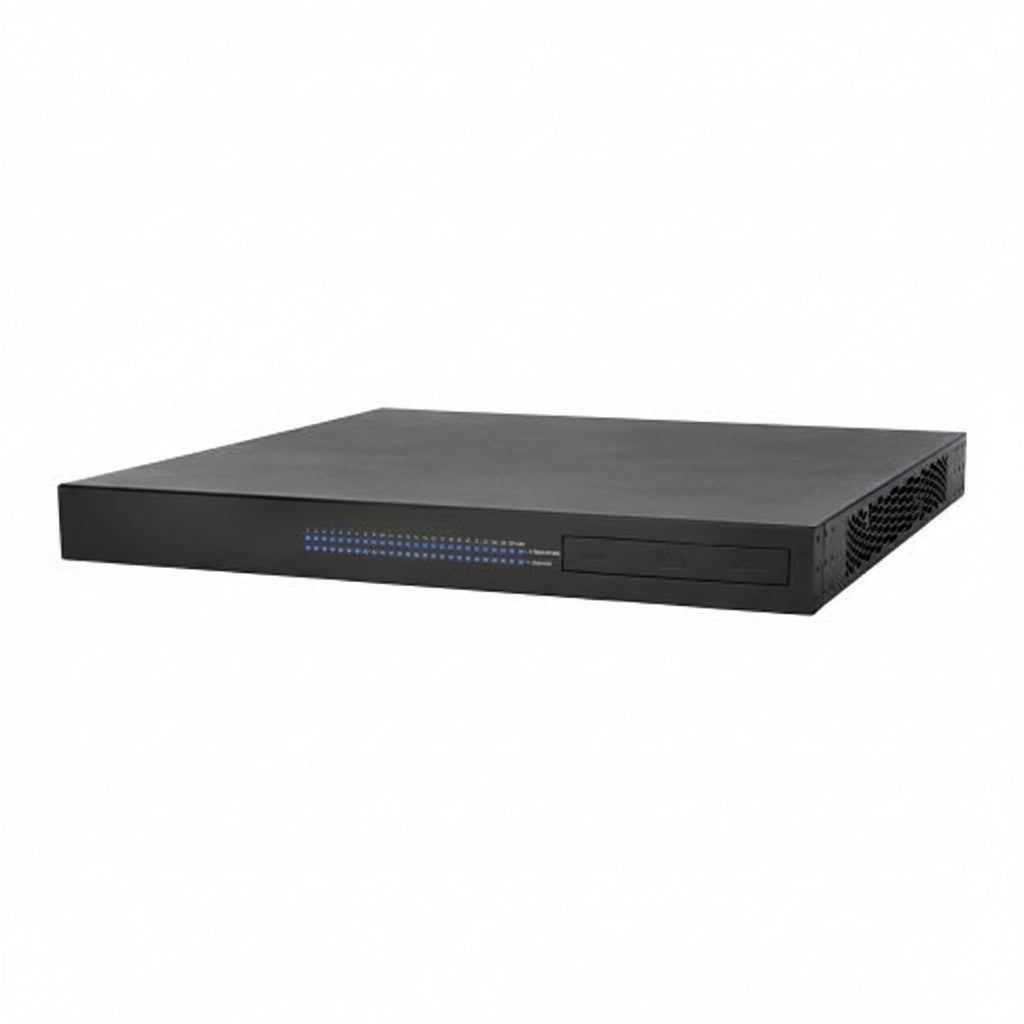

Araknis Networks AN-320-SW-R-24-POE 320 Series Managed Layer 2 Gigabit Switch with Full PoE+, 24-Ports, Rear Facing Ports

The Araknis Networks AN-320-SW-R-24-POE is a 24-port managed Layer 2 gigabit switch from the 320 Series that supplies full PoE+ to connected devices. It suits installers and businesses that need to power and manage cameras, access points and other PoE gear from one rack-mounted unit. Rear-facing ports, OvrC remote management and a browser-based GUI make it a practical choice for clean, centrally managed installs.

Key features

• Offers 24 managed Layer 2 gigabit ports, each running at 1Gbps.
• Delivers full PoE+ to support powered devices.
• Uses a graphical interface that keeps day-to-day management simple.
• Supports remote management through the OvrC platform.
• Shows port status on LEDs at both the front and rear of the unit.
• Provides multiple mounting options and plug-and-play setup.

Specifications

Brand: Araknis Networks

Model: AN-320-SW-R-24-POE

Product Series: 320

Product Type: Network Switch

Network Switch Type: PoE

Power over Ethernet (PoE): Yes

Total Number of Network Ports: 24

Number of Ports: 44

OvrC Enabled: Yes

Compatibility: Control4

Network Management: FW Upgrade: TFTP, HTTP

Power Consumption: 42W

Rack Width: 19″

Rack Depth: 16″

Dimensions: 17.32″ x 1.73″ x 16.14″

Operating Temperature: 32-122°F

Operating Humidity: 10-90%

Certifications: CE

Installation notes

Because the ports face the rear, plan cable routing and rack depth before mounting so patch cables have room to bend without strain. Place the switch where it gets steady airflow within its listed operating temperature range, and confirm the PoE load of your connected devices before powering up.
