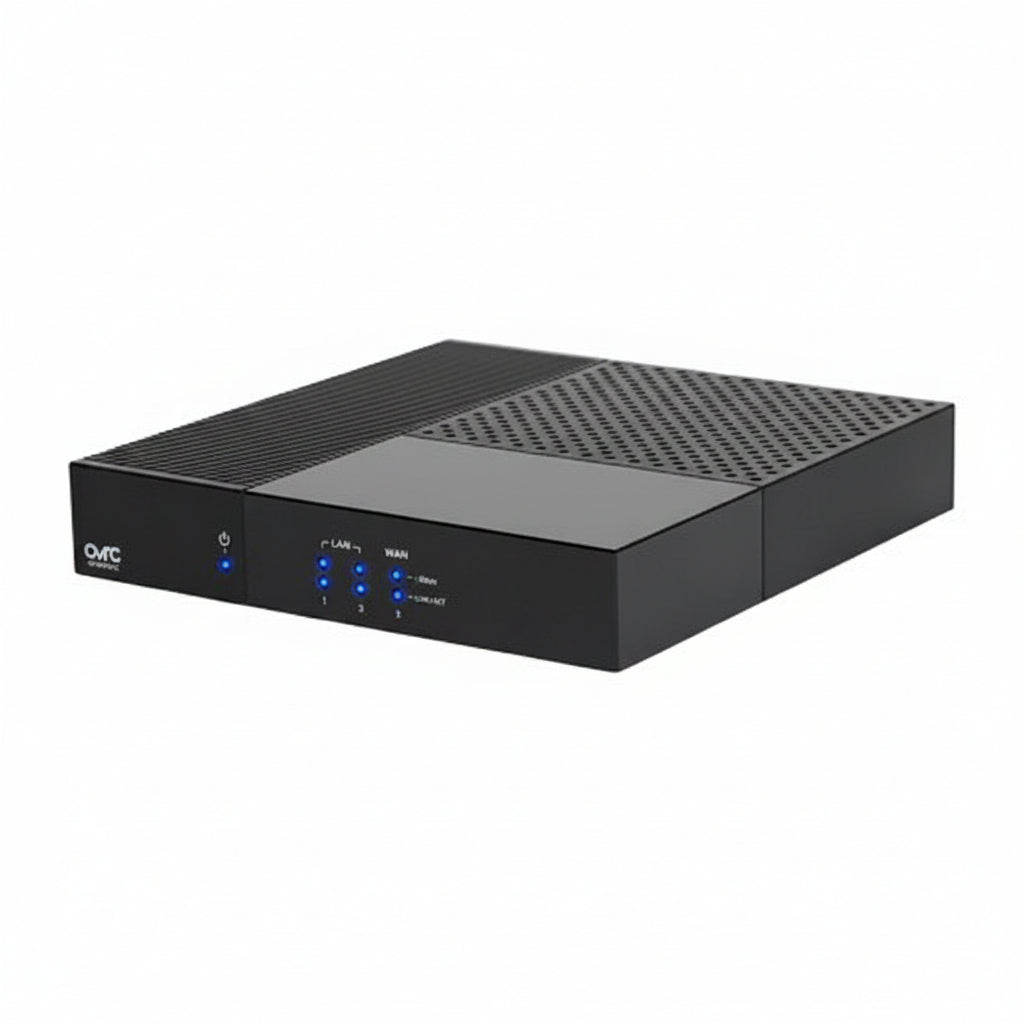

Araknis Networks AN-110-RT-2L1W 110-Series Single-WAN Gigabit VPN Router

The Araknis Networks AN-110-RT-2L1W is a compact single-WAN Gigabit VPN router from the 110 Series, with one Gigabit WAN port and two Gigabit LAN ports. It handles routing for small networks of up to 150 devices and supports Internet speeds up to Gigabit. It suits installers and homeowners who want OvrC Pro visibility and built-in troubleshooting tools in a small, Control4-compatible package.

Key features

• The small footprint gives you flexibility in where you install it.
• It has one Gigabit WAN port and two Gigabit LAN ports.
• OvrC Pro is embedded for network visibility, and troubleshooting tools are included.
• IPSec Passthrough is disabled by default for security. Enable it if you need Wi-Fi Calling services.
• Speed test results in OvrC top out at 300Mbps.
• It is intended for small networks of up to 150 devices.

Specifications

Model: AN-110-RT-2L1W

Brand: Araknis

Product Series: 110

Product Type: Router

Product Line: OvrC Pro

OvrC Enabled: Yes

Compatibility: Control4

Network Interface: LAN RJ-45 10/100/1000 Base-T

Ethernet Technology: 1 Gbps (Gigabit Ethernet)

Data Transfer Rate: 1Gbps

WAN-LAN Throughput (unidirectional): 1 Gbps

Wi-Fi: No

USB Standard: USB 2.0

Firewall Type: Stateful Inspection

Security Features: URL

Network Management: Cloud Management

Power Source: DC Power

Input Voltage: 12V DC

Power Consumption: 5.2300W

Dimensions: 6.75 x 1.25 x 6.75″

Rack Depth: 6.8″

Rack Width: 6.8″

Operating Temperature: 0°C - 40°C (32°F - 104°F)

Storage Temperature: 0°C - 70°C (32°F - 158°F)

Operating Humidity: 10-85% (Non-condensing)

UL Listed: Yes

Certifications: CE

Installation notes

Because the router has no built-in Wi-Fi, plan to connect wireless access points or other network gear to its LAN ports. Place it where it gets airflow and stays within the listed operating temperature and humidity range. Once it is online, claim it in OvrC Pro to confirm the connection and review the network.
