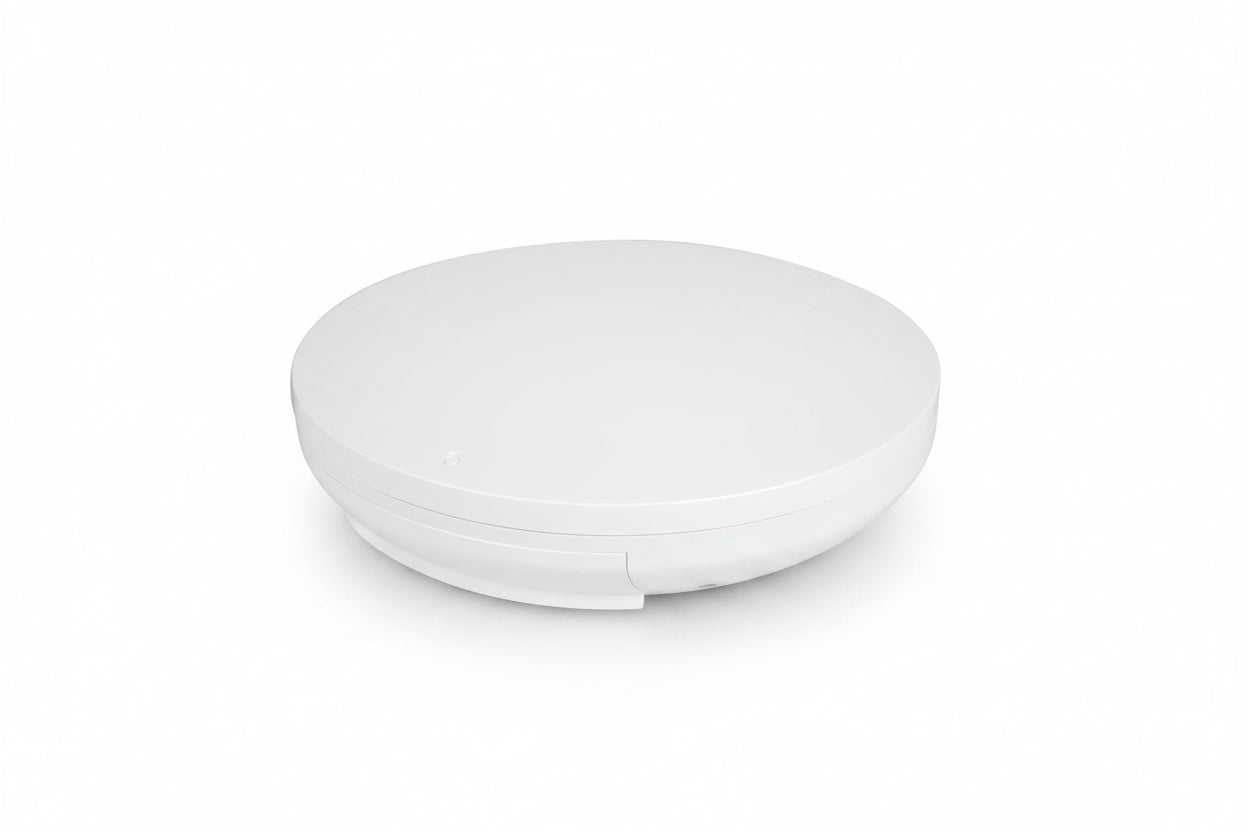

Araknis Networks AN-520-AP-I 520 Series Wi-Fi 6 Mid-Range Indoor Wireless Access Point

The Araknis Networks AN-520-AP-I is a Wi-Fi 6 indoor wireless access point from the 520 Series, built to add dependable wireless coverage in homes and businesses. Its 2x2 antenna design supports up to 3000Mbps, and a 2.5Gbps LAN port gives it multi-gig support. It suits installers who want OvrC-enabled, PoE-powered Wi-Fi that works with Control4.

Key features

• Automated AI-powered channel tuning optimizes performance in minutes.
• Wireless Bridge Mode extends coverage to remote areas that have no Ethernet run.
• Wi-Fi 6 with OFDMA, MU-MIMO, 1024 QAM and 160MHz channel bandwidth.
• Supports fast roaming, band steering, DFS and WPA3 mode.
• Works with Araknis In-Ceiling Brackets for a flush in-wall installation.
• Mixing with Wi-Fi 5 devices is not recommended.

Specifications

Brand: Araknis Networks

Model: AN-520-AP-I

Product Series: 520

Product Type: Access Point

Product Line: Wi-Fi 6

Wi-Fi Generation: Wi-Fi 6

Antenna Type: 2x2

Indoor/Outdoor: Indoor

Ethernet: Yes

Power over Ethernet (PoE): Yes

OvrC Enabled: Yes

Compatibility: Control4

Operating Temperature: 32-122°F

Storage Temperature: -4-140°F

Operating Humidity: 90% (Non-condensing)

Certifications: FCC DFS, IC DFS, CE DFS, AS DFS, Wi-Fi 6 CERTIFIED, WMM, WPA/WPA2/WPA3, IEC 60950-1, IEC 62368-1 3rd

Installation notes

Plan the cable run to a PoE-capable switch port, and use the 2.5Gbps LAN port with a multi-gig uplink if you want to take advantage of it. Mount it indoors in an open, central spot, using the Araknis In-Ceiling Brackets if you want a flush finish, and keep it within the listed operating temperature and humidity range.
