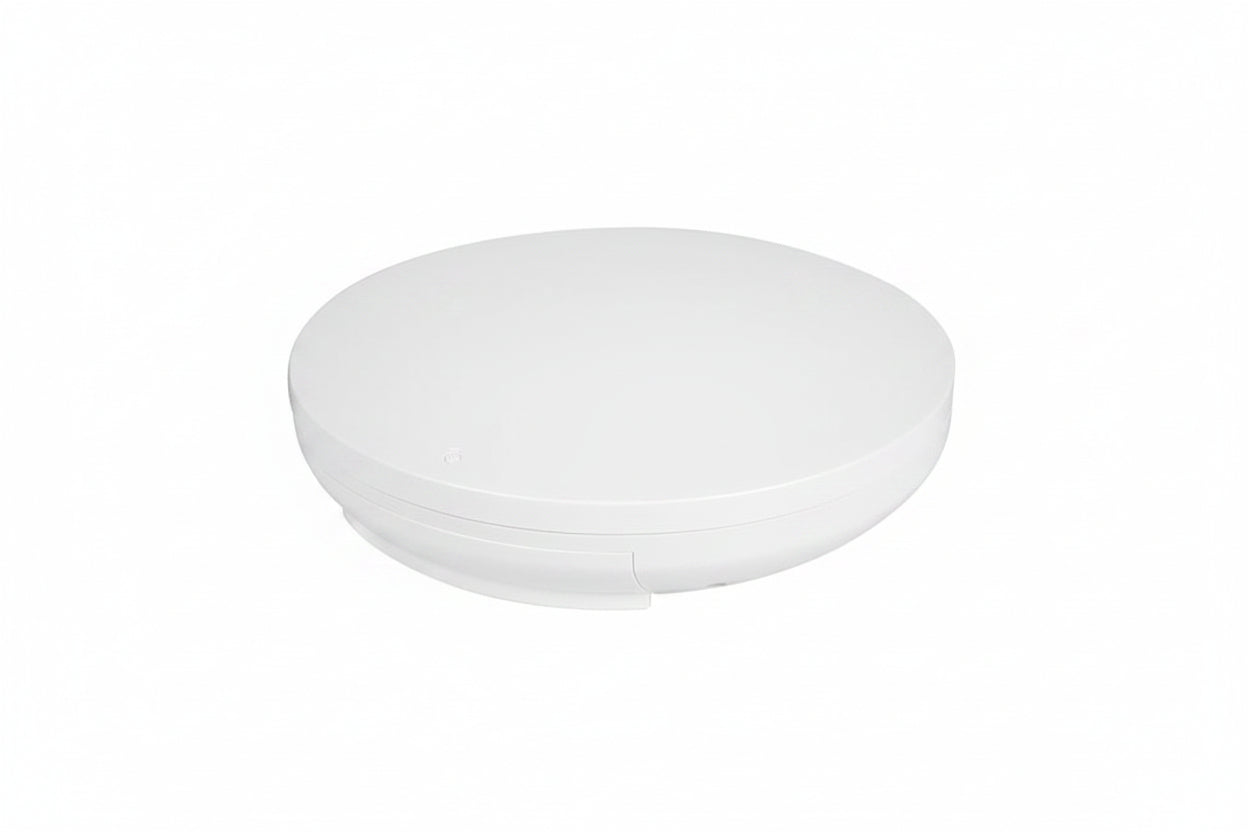

Araknis Networks AN-820-AP-I 820 Series High-Performaing Wi-Fi 6 Indoor Wireless Access Point

The Araknis Networks AN-820-AP-I is an indoor Wi-Fi 6 wireless access point from the 820 Series, built for larger and more complex network deployments. It uses OFDMA and MU-MIMO with a 2.5Gbps LAN port, and AI-powered channel tuning to optimize performance in minutes. It suits installers and integrators setting up single-family smart homes, with OvrC support and Control4 compatibility.

Key features

• Automated AI-powered channel tuning optimizes performance in minutes.
• Wireless Bridge Mode extends coverage to remote areas that have no Ethernet.
• Wi-Fi 6 with OFDMA, MU-MIMO, 1024 QAM and BSS Coloring supports reliability and higher network capacity.
• The 2.5Gbps LAN port handles multi-gig jobs.
• Fast roaming, band steering, DFS and WPA3 mode are supported.
• Araknis In-Ceiling Brackets allow flush in-wall installation. Mixing with Wi-Fi 5 devices is not recommended.

Specifications

Brand: Araknis Networks

Model: AN-820-AP-I

Product Type: Access Point

Product Series: 820

Product Line: Wi-Fi 6

Wi-Fi Generation: Wi-Fi 6

Operating Frequency: 2.4 GHz

Indoor/Outdoor: Indoor

Ethernet: Yes

Power over Ethernet (PoE): Yes

OvrC Enabled: Yes

Compatibility: Control4

Application/Usage: Single Family Smart Home

Operating Temperature: 32-122°F

Storage Temperature: -4-140°F

Operating Humidity: 90% (Non-condensing)

Certifications: FCC DFS, IC DFS, CE DFS, AS DFS, Wi-Fi 6 CERTIFIED, WMM, WPA/WPA2/WPA3, IEC 60950-1, IEC 62368-1 3rd

Installation notes

Power the access point over PoE from a switch port that can support its 2.5Gbps LAN connection, and keep it indoors within the listed temperature and humidity range. Plan placement for open coverage, and use the In-Ceiling Brackets where a flush mount is wanted. Where Ethernet is not available, Wireless Bridge Mode can reach remote areas.
