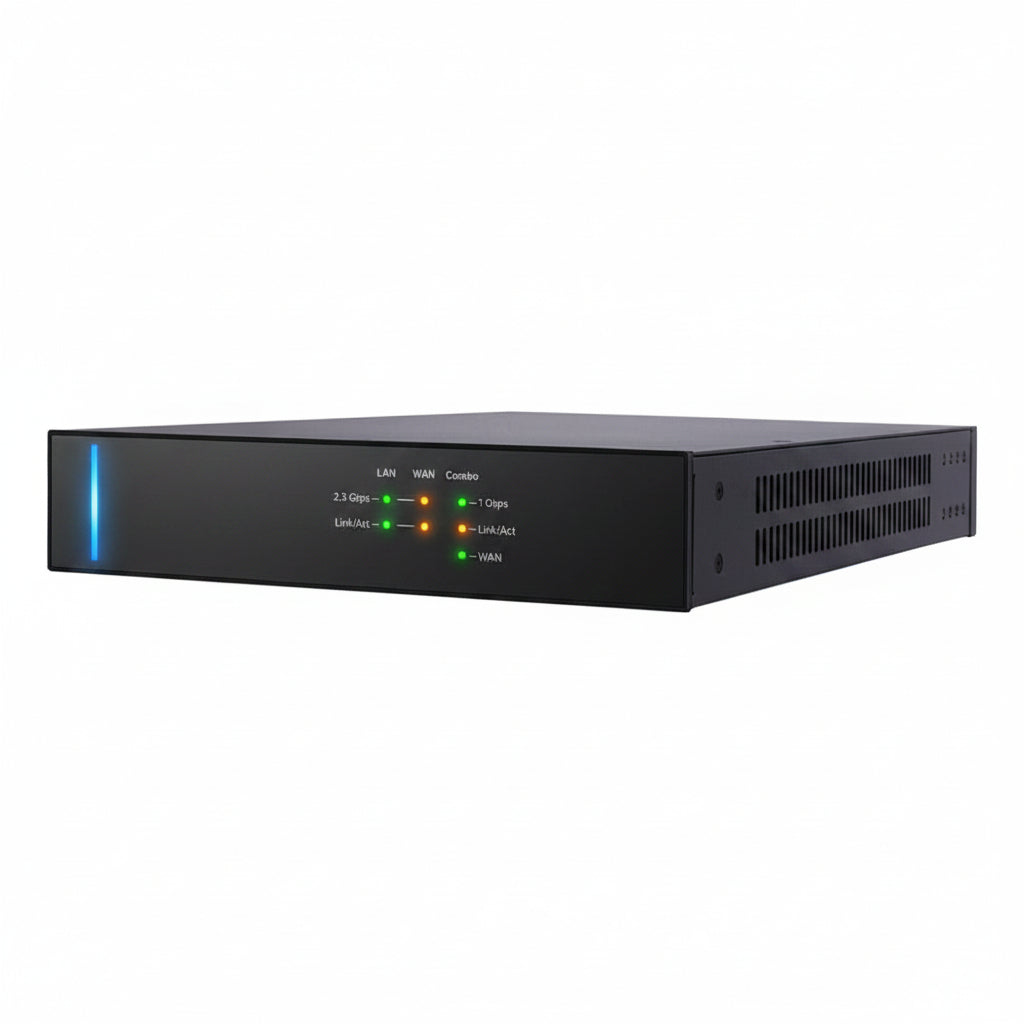

Araknis Networks AN-520-RT 520 Series Dual-WAN Multi-Gigabit VPN Router with OvrC Pro

The Araknis Networks AN-520-RT is a dual-WAN, multi-gigabit VPN router from the 520 Series, built for installers and businesses that need a wired routing core they can manage remotely. It handles load-balancing and failover across two internet connections, supports site-to-site VPN and remote access, and includes an embedded firewall. It is managed through OvrC Pro and has no Wi-Fi, so it pairs with separate access points.

Key features

• Two WAN connections can be used for load-balancing or failover.
• Multi-Gigabit LAN/WAN ports provide room for high-bandwidth traffic.
• The embedded firewall includes SPI, Denial of Service prevention and WAN Request Blocking.
• Site-to-site VPN connections are supported, along with PPTP and OpenVPN for remote access.
• OvrC Pro allows remote monitoring of the router.

Specifications

Brand: Araknis Networks

Model: AN-520-RT

Product Type: Router

Product Series: 520

Product Line: OvrC Pro

OvrC Enabled: Yes

Wi-Fi: No

Compatibility: Control4

Network Interface: WAN RJ-45: 2.5G BASE-T Ethernet

Dimensions: 6.69″ x 1.18″ x 6.69″

Installation notes

Plan the cabling so each WAN port connects to its own internet service before you configure load-balancing or failover. Since the router has no Wi-Fi, locate it near your switch and add access points where wireless coverage is needed, then claim it in OvrC Pro to enable remote monitoring.
