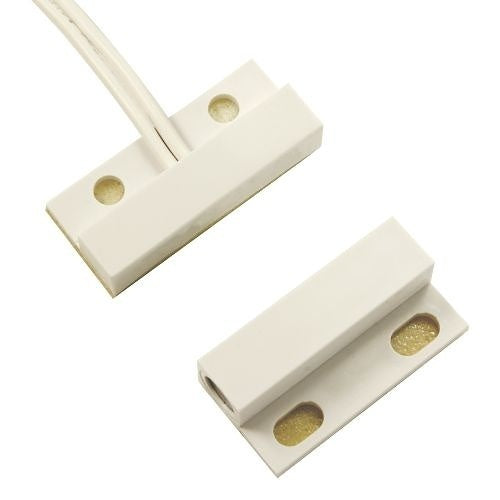

GRI 55F-12-W Miniature Surface-Mount Magnetic Switch Set with 1/2-Inch Standard Gap and 12-Inch Leads, White

The GRI 55F-12-W-BA is a miniature surface-mount magnetic contact switch set for wired alarm systems, used to detect when a door or window opens. It suits residential installs, and it combines a low-profile white case with self-adhesive tape mounting and a breakaway flange for screw mounting when needed. It has a 0.50″ standard gap and 12″ side-exit leads from the center of the case.

Key features

• GRI describes the 55F Series as the most chosen switch set configuration for residential installations.
• The low profile and self-adhesive 3M tape make mounting quick and simple.
• A breakaway flange is available where screw mounting is the better choice.
• The leads exit from the middle of the case.
• It is a closed-loop, normally open contact in white.

Specifications

Brand: GRI

Model: 55F-12-W-BA

Product type: Magnetic Contact

Vendor: George Risk Industries

Color: White

Mount type: Surface mount

Standard gap: 0.50″

Contact type: NO (Normally Open)

Loop: Closed loop

Switch rating: 10W, 200VDC, 0.50A

Power source: DC Power

Leads: 12″, 22AWG

Termination style: Center Lead

Connectivity: Wired

Installation type: Residential

Country of origin: US

Installation notes

Clean and dry the mounting surface before applying the adhesive tape, and use the breakaway flange with screws where the tape may not hold. Keep the magnet and switch aligned and within the standard gap, and test the loop at the panel after mounting.
