About the 195-12

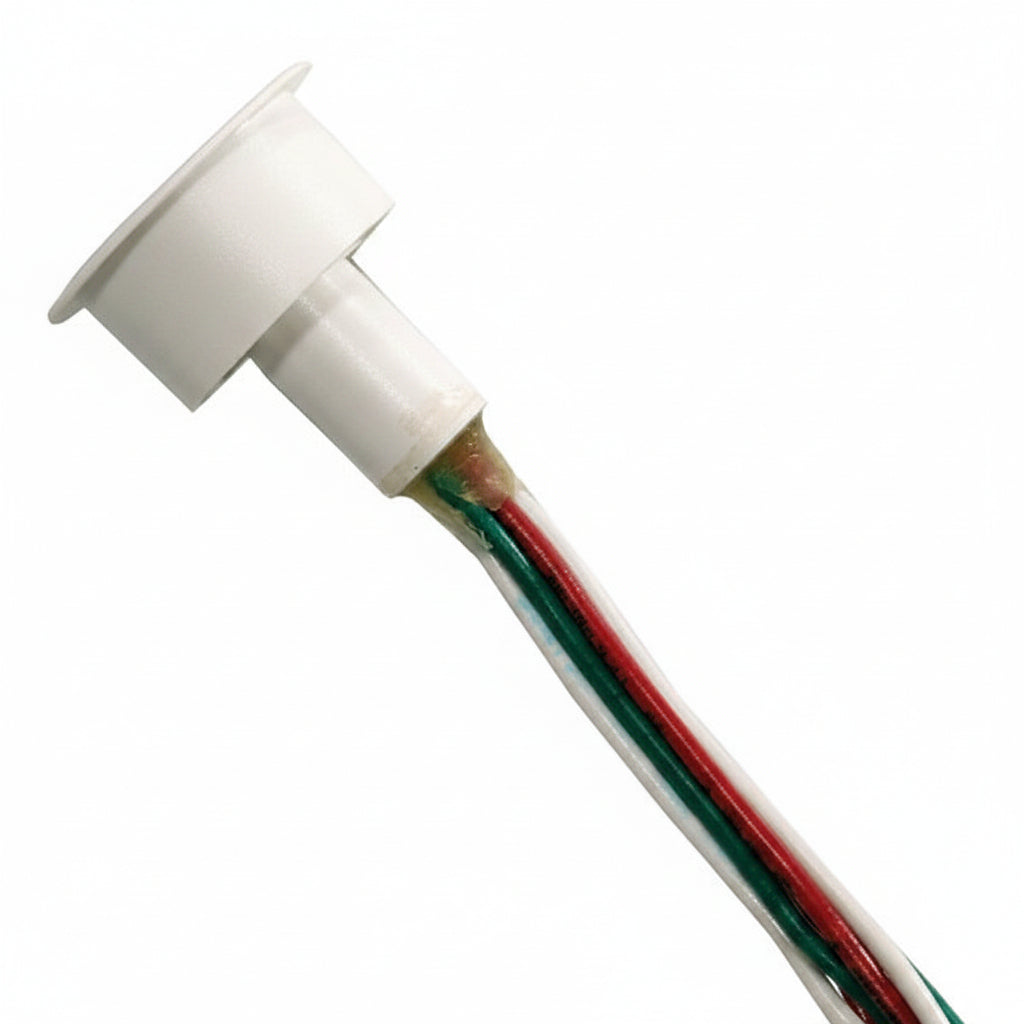

The GRI 195-12-W is a recessed steel door switch set from GRI (George Risk Industries) that reports whether a door is open or closed. It is a wired magnetic contact for commercial installations, supplied as a set of two in white. It suits installers who need a concealed, one-piece contact for steel doors with a standard gap.

Key features

  • It is UL and ULC approved.
  • The solid, one-piece body is self-locking once seated in the door.
  • It mounts in a 3/4″ hole, and 1″ diameter mounting is also offered in the line.
  • Standard 12″ leads or terminals are available.
  • The line comes in closed loop, open loop and SPDT versions, and in white, brown, grey or black.

Specifications

Model: 195-12-W

Brand: GRI

Manufacturer: George Risk Industries

Product series: GRI 195

Product type: Magnetic Contact

Quantity: Set of 2

Contact type: DPDT (Double Pole Double Throw)

Contact form: Form C

Rating: 5W, 175VDC, 0.25A

Standard gap: 0.50″

Diameter: 0.80″

Length: 12.00″

Material: Steel

Color: White

Connectivity: Wired

Power source: DC Power

Features: End of Line (EOL) Resistor

Application/usage: Commercial

Installation type: Commercial

Country of origin: US

Additional information: Switches or magnets are available separately. Wide gap (1″+ on steel) and supervisory loops are available. Longer leads, zip cord or jacketed cable are available on request.

Installation notes

Drill a clean, correctly sized hole in the door edge, and align the matching magnet in the frame with the switch so the two sit within the rated gap. Route the leads so they are protected from pinching as the door swings, then test the open and closed states at the panel before finishing.

Specifications

BrandGRI
Model195-12
Product typeRecessed Steel Door Switch Set

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
