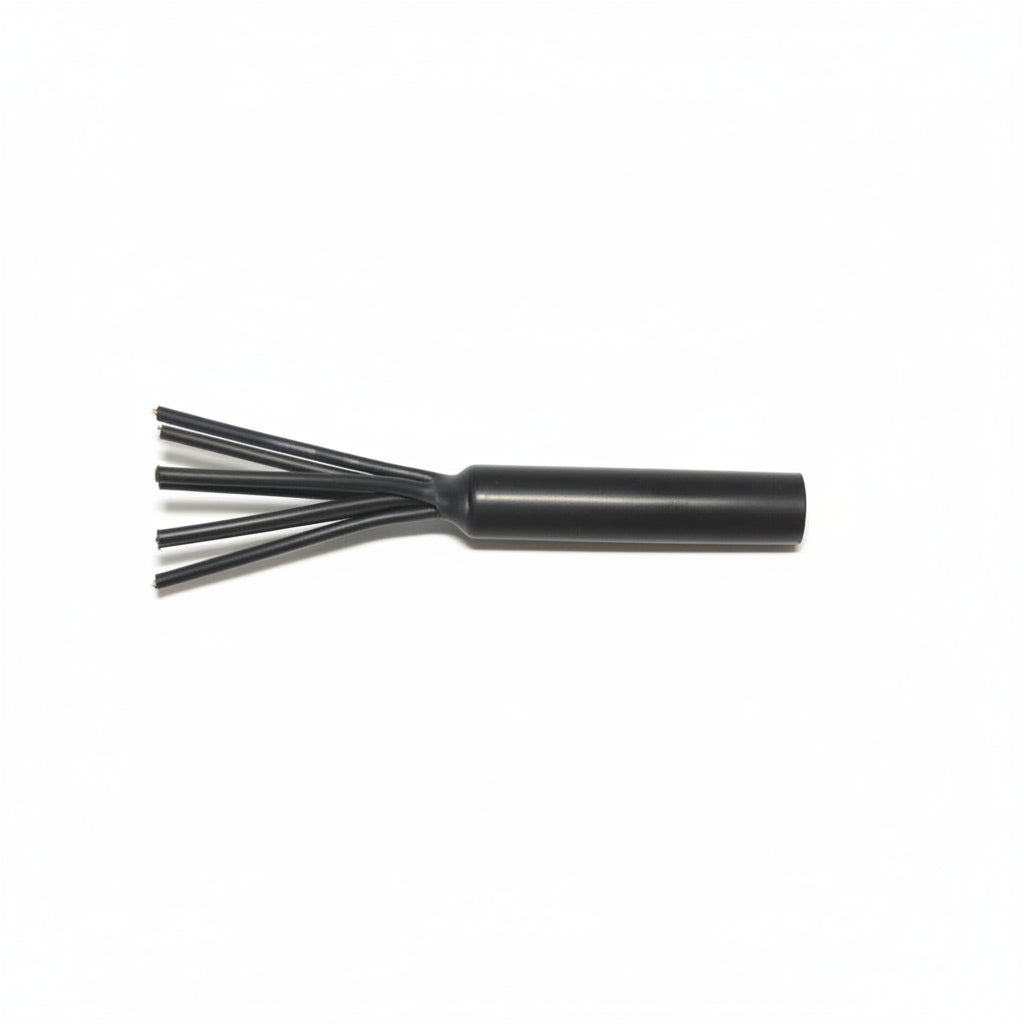

GRI 6644 Magnetic Contact Resistor with 2-Black/2-Blue Lead, 2-1K, 1/8W

Price: $53.38Model: 6644
In stock — ready to ship Free US shipping on orders $500+ · $446.62 to go
Need a project quote?
GRIShop all GRI →
GRI 6644 Magnetic Contact Resistor with 2-Black/2-Blue Lead, 2-1K, 1/8W
  • Free US shipping
    on orders $500+
  • 30-day returns
    unused, in original box
  • Secure checkout
    Shopify Payments
  • Product help
    before & after you buy
Shop the brandGRISee every GRI product we carry →

About the 6644

The GRI 6644 is a magnetic contact resistor pack that gives open and closed loop alarm circuits supervision without any soldering on the job. It holds two 1K, 1/8W, 5% carbon film resistors in a brown case, with four 12″ leads (two blue, two black) for connecting to a switch. It suits installers who want a ready-made end of line resistor option for GRI magnetic contacts.

Key features

  • Provides supervision for both open and closed loop systems.
  • Contains two 1K, 1/8W, 5% carbon film resistors.
  • Resistors sit in a brown 50R case.
  • Comes with two blue and two black leads, each 12″ long.
  • Removes the need to solder resistors in the field.

Specifications

Brand: GRI

Model: 6644

Product Type: Resistor

Vendor Name: George Risk Industries

Color: Brown

Resistors: 2-1K, 1/8W, 5% carbon film

Leads: Two blue and two black, 12″

Closed Loop Switches: Resistors in series with the switch

Open Loop Switches: Resistors in parallel with the switch

Country of Origin: US

Installation notes

Wire the resistors in series with the switch for closed loop circuits and in parallel for open loop circuits. Use solderless connectors suited to the lead gauge, and test the loop at the panel before closing up the installation.

Specifications

BrandGRI
Model6644
Product typeMagnetic Contact Resistor

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
