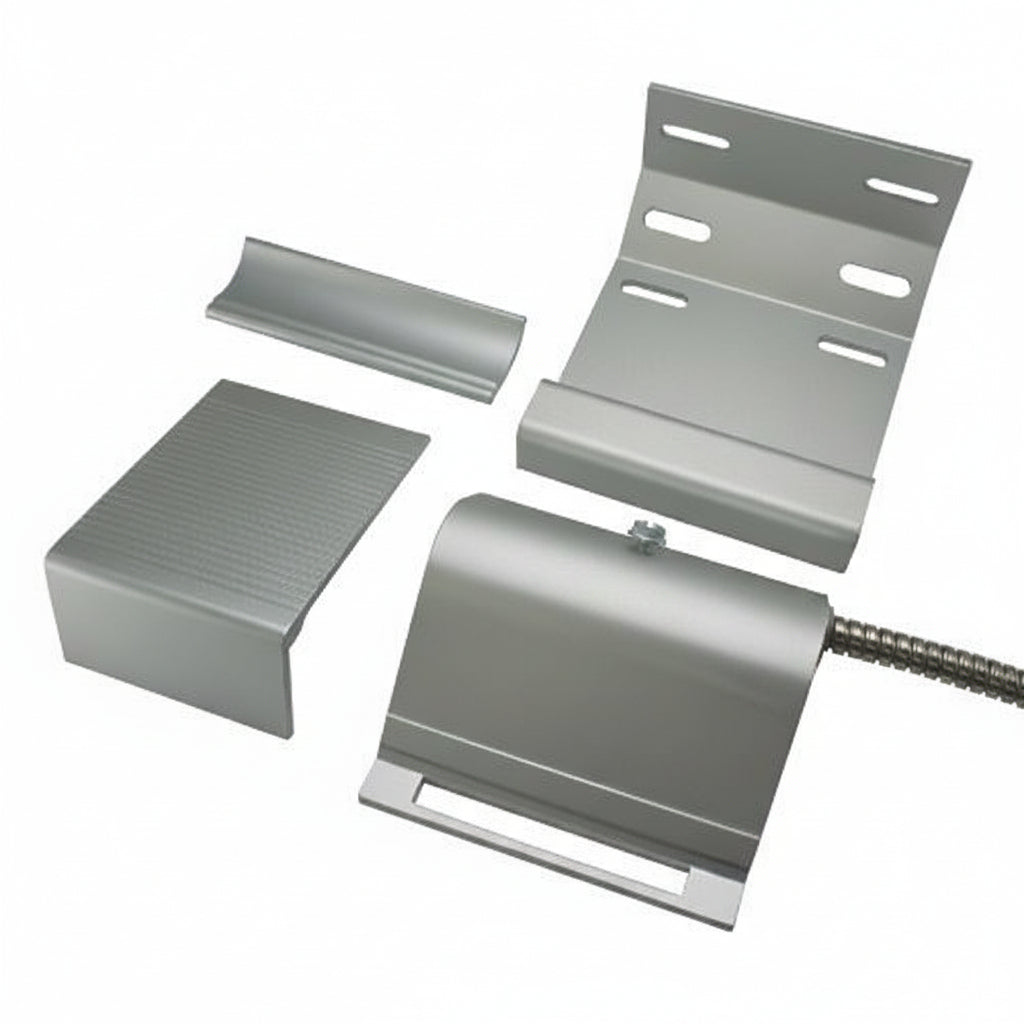

GRI 4700-AXL Industrial Track-Mount Magnetic Switch Set for 2.5- to 4-Inch Tracks with Up to 3-Inch Gap and 3-Foot Armored Cable

The GRI 4700-AXL is an industrial track-mount magnetic switch set built for overhead and sliding doors on 2.5″ to 4″ tracks. It moves the contacts up onto the track, out of the way of fork lifts and other equipment that tend to damage standard floor switches and cause false alarms. The reversible probe assembly, hinged clamping design and 3 ft. armored cable make it a practical fit for commercial and industrial door installations.

Key features

• The probe assembly is reversible, so the switch can be installed on the left or right side of the door.
• The cable exit is reversible, which helps with routing in tight spots.
• A 3 ft. armored cable comes standard for added protection on the run.
• The multi-position adjustable magnet bracket lets you dial in alignment with up to a 3″ gap.
• A hinge design clamps tighter to the track, and the set fits channels from 1.75″ up to 4″.
• Self-drilling screws are included for easy installation, and the contact can be wired as closed loop or SPDT.

Specifications

Brand: GRI (George Risk Industries)

Model: 4700-AXL

Product series: 4700-A

Product type: Magnetic Contact

Application: Door

Installation type: Commercial

Mount type: Freestanding

Track size: 2.5″ to 4″

Standard gap: 3.0″

Color: Silver

Connectivity: Wired

Armored: Yes

Contact form: Form A

Contact type: NO (Normally Open)

Power source: DC Power

Input voltage: 160V DC

Input current: 400mA

Power consumption: 10W

Country of origin: US

Installation notes

Decide on left or right installation and the cable exit direction before you fasten anything, then clamp the hinged bracket snugly to the track. Set the magnet bracket position so the gap stays within the rated range, and test the alarm loop with the door fully open and fully closed before commissioning.
