GRI 4532-36 4532 Series Floor Mount Miniature Overhead Door Switch Set, 2-1/2" Gap, 10W, 200VDC, 0.50 Amp, Closed Loop, N/O, with 36" Lead and 2' Stainless-Steel Armored Cable, Aluminum

Price: $77.30Model: 4532-36
In stock — ready to ship Free US shipping on orders $500+ · $422.70 to go
Need a project quote?
GRIShop all GRI →
GRI 4532-36 4532 Series Floor Mount Miniature Overhead Door Switch Set, 2-1/2" Gap, 10W, 200VDC, 0.50 Amp, Closed Loop, N/O, with 36" Lead and 2' Stainless-Steel Armored Cable, Aluminum
  • Free US shipping
    on orders $500+
  • 30-day returns
    unused, in original box
  • Secure checkout
    Shopify Payments
  • Product help
    before & after you buy
Shop the brandGRISee every GRI product we carry →

About the 4532-36

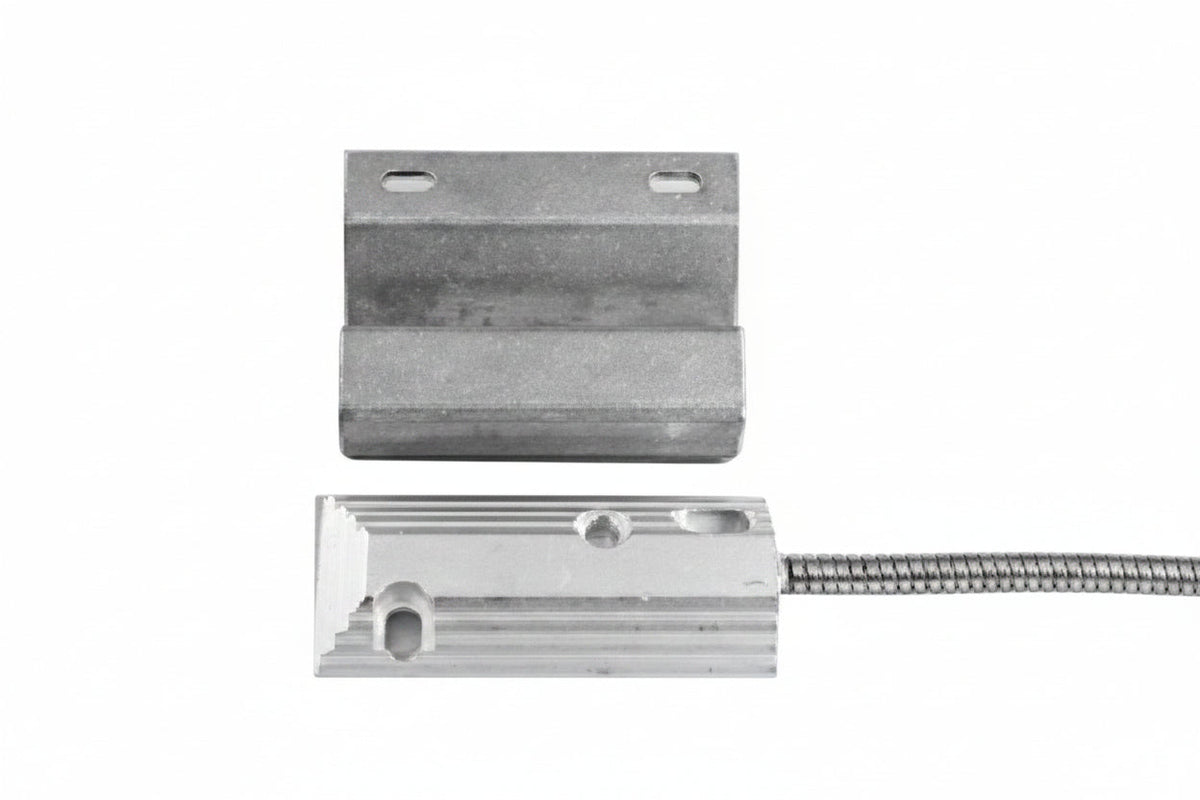

The GRI 4532-36 is a miniature floor mount overhead door switch set from GRI (George Risk Industries), built to monitor the position of an overhead door. It suits installers, businesses and homeowners who need a compact magnetic contact for a loose-fitting overhead door. It stands out with a cast aluminum casing, a hermetically sealed switch and a stainless-steel armored cable.

Key features

  • The miniature floor mount design keeps the switch small and the cost low.
  • Universal fit mounting holes and a universal magnet give you flexibility in how you mount it.
  • Cast aluminum casings are made for harsh environments.
  • The two-foot stainless-steel armored cable protects the wiring, and longer leads are available on request.
  • It is intended for loose overhead doors.
  • The switch is hermetically sealed, and an optional "L" bracket is available.

Specifications

Brand: GRI

Model: 4532-36

Series: 4532

Product type: Magnetic contact, floor mount overhead door switch set

Application: Overhead door

Standard gap: 2-1/2″

Contact type: N/O (Normally Open), Form A, closed loop

Power consumption: 10W

Input voltage: 200V DC

Input current: 0.50 Amp (500mA)

Lead length: 36″

Cable: 2′ stainless-steel armored

Material: Cast aluminum

Color: Gray

Mount type: Freestanding

Power source: DC power

Features: End of Line (EOL) resistor

Installation type: Hybrid (DIY + Professional)

Country of origin: US

Installation notes

Mount the switch and magnet on the floor so the door closes within the standard gap, and confirm the door's movement doesn't push the magnet out of range. Route the armored cable out of the path of the door and test the circuit before you finish.

Specifications

BrandGRI
Model4532-36
Product typeFloor Mount Overhead Door Switch

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
