GRI 4400A-48 Industrial Surface Mount Switch Set, 2-1/2" Standard Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, and 48" Armored Cable, Aluminum

Price: $151.82Model: KB-4400A-48
In stock — ready to ship Free US shipping on orders $500+ · $348.18 to go
Need a project quote?
GRIShop all GRI →
GRI 4400A-48 Industrial Surface Mount Switch Set, 2-1/2" Standard Gap, 10W, 200VDC, 0.50A, Closed Loop, N/O, and 48" Armored Cable, Aluminum
  • Free US shipping
    on orders $500+
  • 30-day returns
    unused, in original box
  • Secure checkout
    Shopify Payments
  • Product help
    before & after you buy
Shop the brandGRISee every GRI product we carry →

About the KB-4400A-48

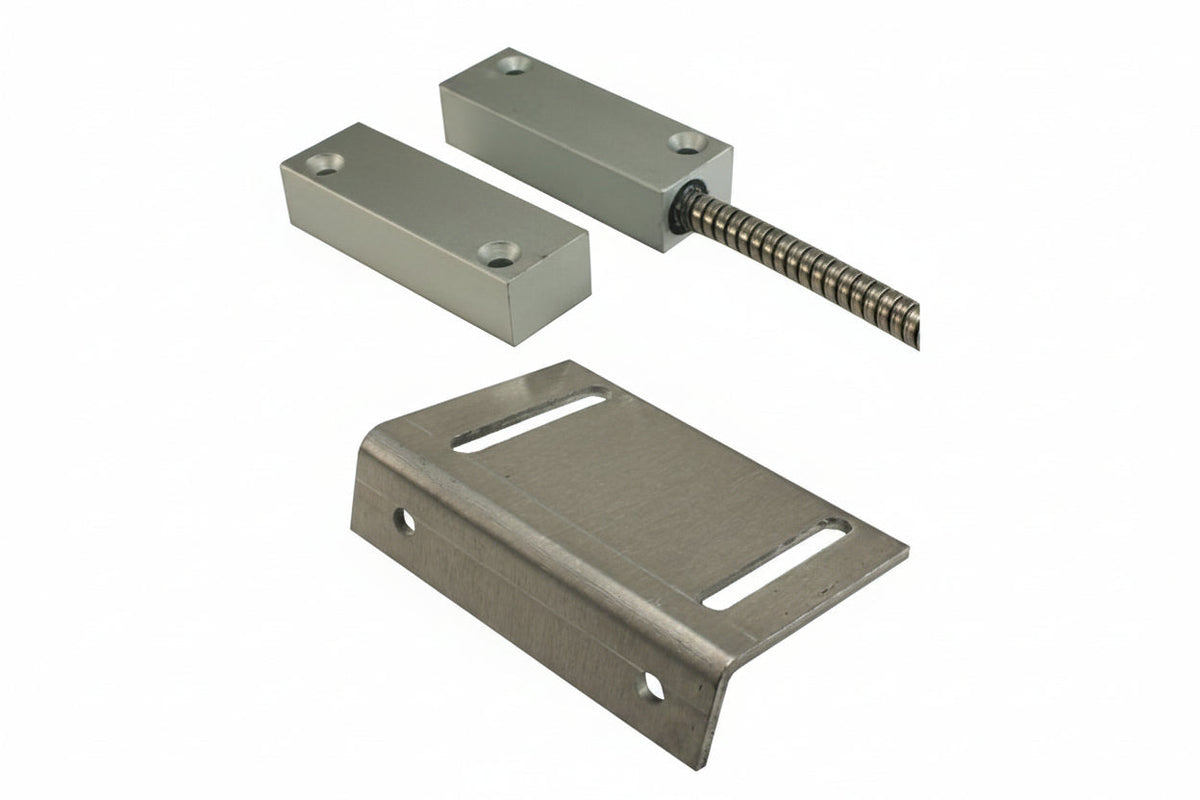

The GRI 4400A-48 is an industrial surface mount magnetic contact switch set with a 48″ armored cable and a weather resistant gray aluminum housing. It monitors the open or closed position of gates, doors and similar openings, and it suits installers and businesses securing commercial and industrial sites. It stands out for its 2-1/2″ standard gap and rugged, US-made construction.

Key features

  • UL and ULC approved.
  • Armored cable protects the leads on exposed runs.
  • Weather resistant aluminum housing is built for outdoor use.
  • Standard gap reaches 2-1/2″, with a DPDT option at the same gap.
  • Works well for securing chain link fence.
  • Optional mounting brackets are available, and longer leads or jacketed cable can be requested.

Specifications

Brand: GRI

Model: 4400A-48

Product series: 4400

Product type: Magnetic Contact

Application: Industrial

Installation type: Commercial

Contact type: Closed Loop, N/O

Contact form: Form A

Standard gap: 2.50″

Power rating: 10W

Voltage: 200V DC

Current: 0.50A (500mA)

Power source: DC Power

Cable: 48″ armored

Material: Aluminum

Color: Gray

Width: 2.60″

Depth: 0.60″

Features: End of Line (EOL) Resistor

Country of origin: US

Installation notes

Mount the switch and magnet on the fixed frame and moving leaf so they line up squarely and stay within the rated gap when the opening is closed. Route the armored cable clear of pinch points and moving parts, and test the loop after mounting.

Specifications

BrandGRI
ModelKB-4400A-48
Product typeIndustrial Surface Mount Switch

Specs are taken from the manufacturer listing. Need a detail that isn't here? Ask us.
