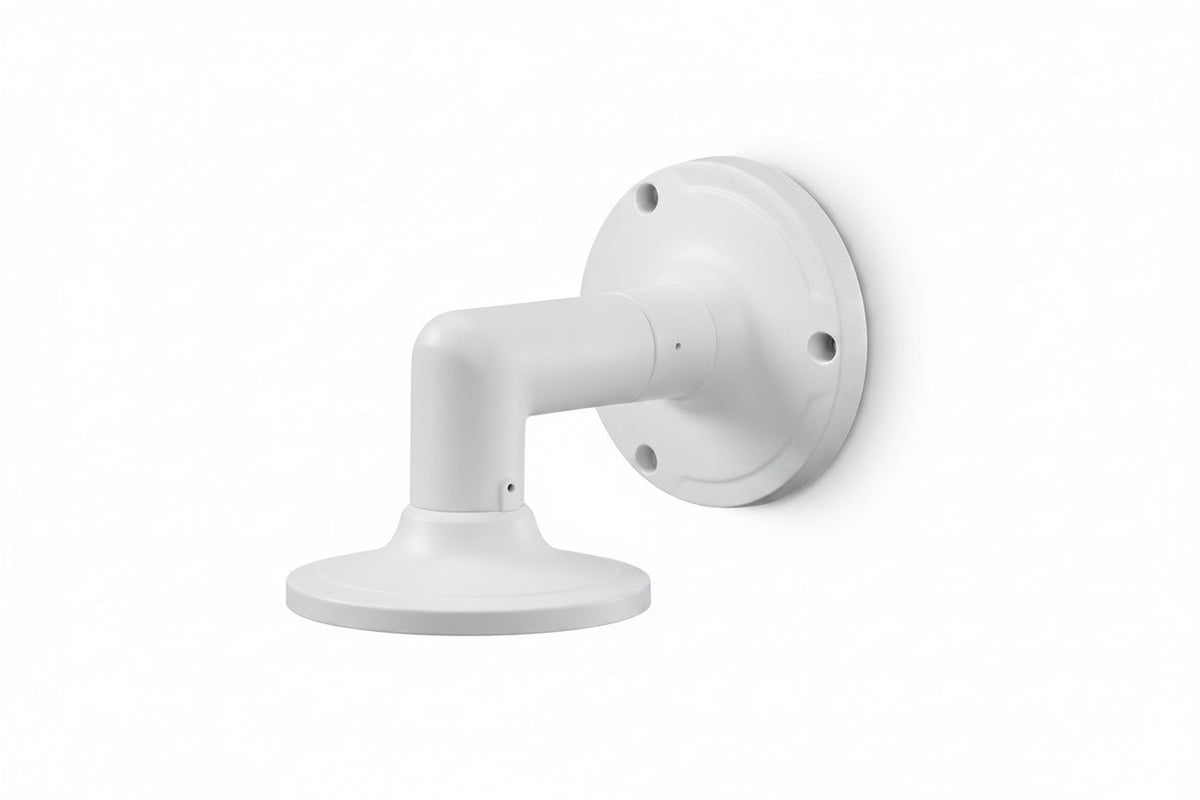

First Alert CX4AWMFDJB CX4A Fixed Dome Wall Mounting with Junction Box

The First Alert CX4AWMFDJB is a wall mounting bracket with an integrated junction box, made for fixed dome cameras in the CX4 product line. It gives installers a single aluminum alloy mount for securing a compatible CX4D camera to a wall, and it suits both business and home installations. The wide stated operating temperature range stands out for outdoor and unconditioned locations.

Key features

• Built to mount a fixed dome camera on a wall.
• Includes a junction box as part of the mounting.
• Made from aluminum alloy with a white finish.
• Rated for ambient operation from -40 °F to 140 °F (-40 °C to 60 °C).
• Rated for ambient relative humidity from 10% to 90%.

Specifications

Brand: First Alert

Model: CX4AWMFDJB

Product Line: CX4

Model Compatibility: CX4D

Color: White

Material: Aluminum Alloy

Height: 8.9″

Length: 6.5″

Width: 4.8″

Weight: 2.35 lb

Minimum Operating Temperature: -40°F

Maximum Operating Temperature: 140°F (60°C)

Ambient Relative Humidity: 10% to 90%

Installation notes

Fasten the mount to a solid wall surface with hardware suited to the wall material, and plan the cable route into the junction box before attaching the camera. Check that the mounting location stays within the stated temperature and humidity range.
