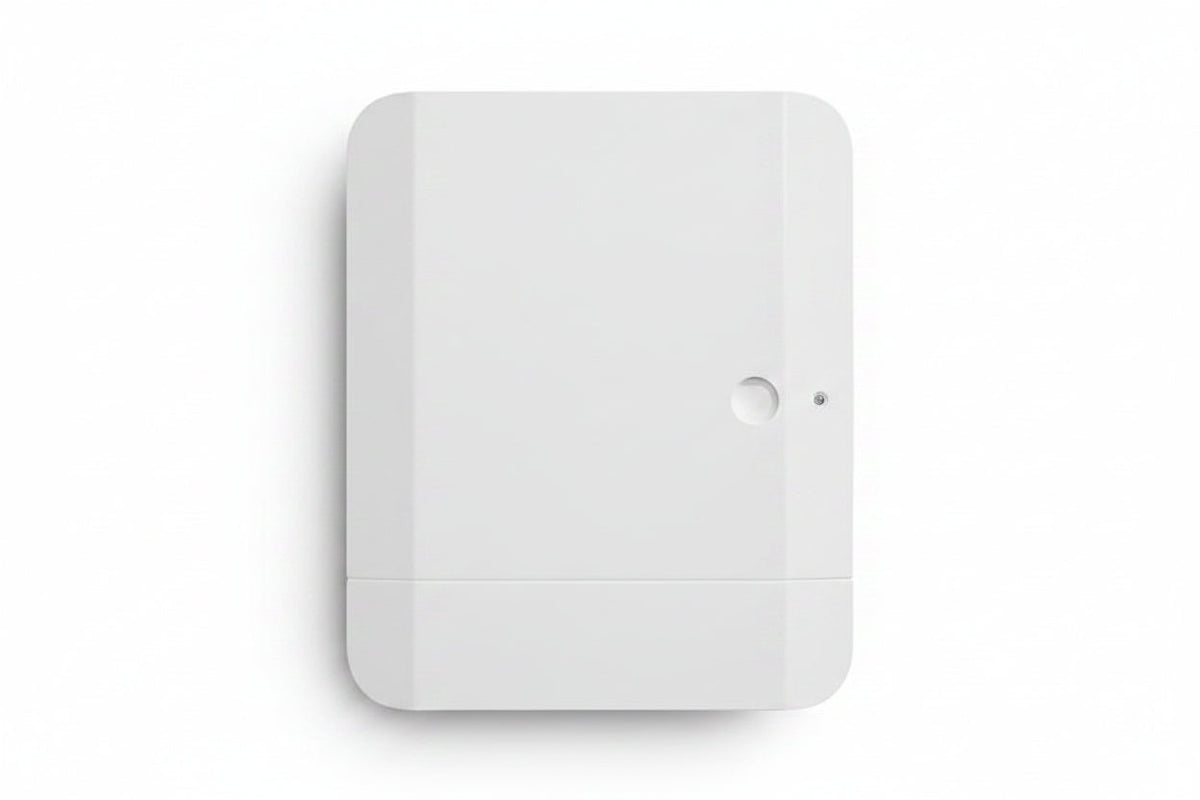

First Alert VISTAH3 VISTA H3 Security Panel

The First Alert VISTAH3 VISTA H3 is a hybrid security control panel from the VISTA H Series, built to handle a wide range of alarm applications on one scalable platform. It can take over existing hardwired, 5800 or competitive wireless sensors, modules and relays, and it supports up to 4 partitions, which suits retail shops, small offices and multidwelling homes. VPLEX capability, which lets you run 2 wires instead of the traditional 4 for hardwired sensors, is a standout for installers.

Key features

• Takes over existing hardwired, 5800 or competitive wireless sensors, modules and relays.
• Programs up to 4 partitions for commercial and multidwelling use.
• VPLEX support allows 2-wire runs in place of traditional 4-wire runs for hardwired sensors.
• Hands-free disarming is available with the wireless touchscreen.
• Video integration lets you view First Alert Video Series VX1, VX3 and VX5 cameras on the wireless touchscreen or through the TC2 app on a Wi-Fi enabled device.
• A Z-Wave module adds control of lights, locks, thermostats and more.

Specifications

Model: VISTAH3

Brand: First Alert

Product Type: Burglar Alarm Control Panel

Product Line: VISTA

Product Series: H

Number of Zones Supported: 8

Power Source: AC Power

Communication Technology: Ethernet

Z-Wave: Yes

Compatibility: PROSIX Sensors

Certifications & Standards: ETL UL Std 985, 1023, 1610

Height: 12.2″

Depth: 3.5″

Installation notes

Mount the panel on a solid surface in a protected, central location with room for cabling and an AC power connection. Plan your sensor mix (hardwired, wireless or VPLEX) and partition layout before programming, and test every zone and the Ethernet connection before handing the system over.
