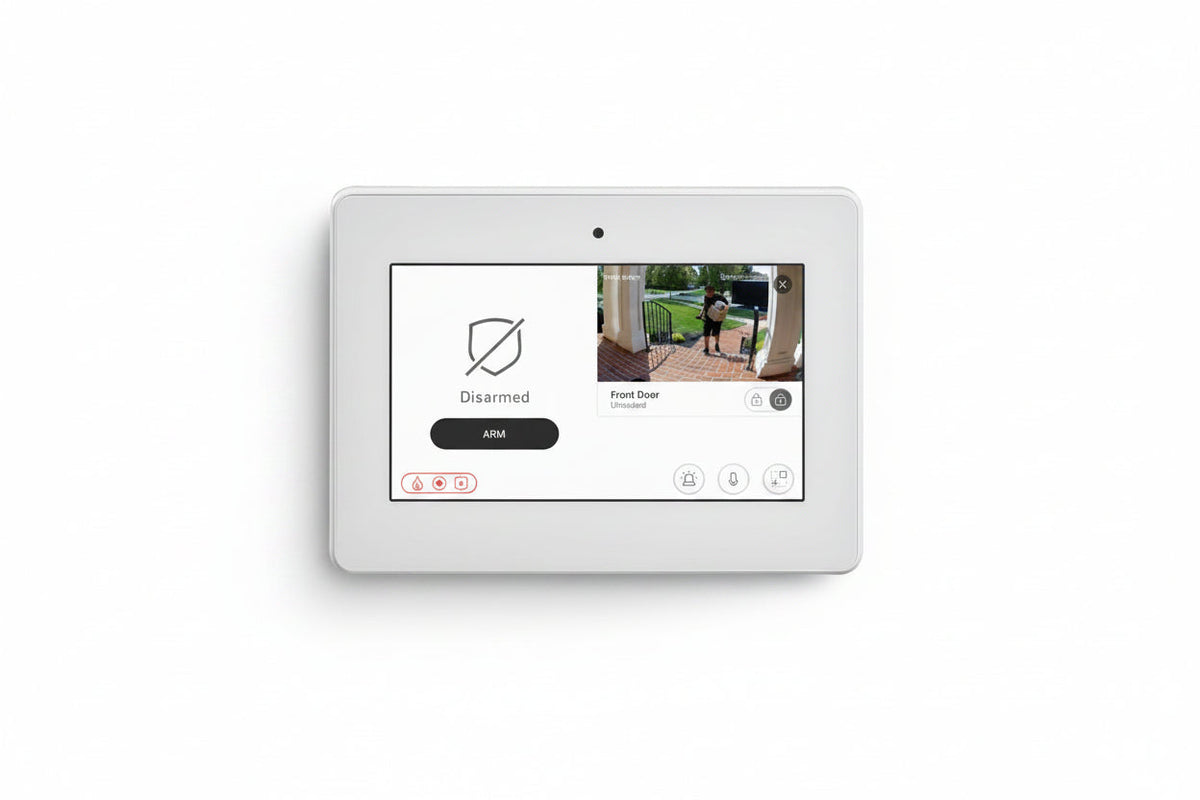

First Alert PROA7PLUS-FA ProSeries 7" All-in-One Panel with Wi-Fi / Z Wave

The First Alert PROA7PLUS-FA is an all-in-one security control panel from the ProSeries line, combining a 7-inch graphic touchscreen, controller, communicator, microphone, speaker and sounder in a single unit. It acts as the central hub for both security and home automation, with Wi-Fi and Z-Wave Plus built in. It suits professional installers and their residential or commercial customers, and its standout points are dual-path communications and support for up to four partitions.

Key features

• Self-contained design puts the touchscreen, controller, communicator, microphone, speaker and sounder in one panel.
• Wi-Fi and user-replaceable LTE communicators provide primary and backup central station communications.
• Z-Wave Plus compatibility lets the panel control lighting, locks and thermostats, and run programmed automated scenes.
• ProSiX wireless sensors are encrypted, two-way and upgradeable over the air, and they lock to the panel to help prevent account takeovers.
• Up to four independent partitions suit small offices, retail shops and multi-dwelling homes, with one partition programmable as a common lobby.
• AlarmNet 360 enables remote programming and diagnostics to help reduce truck rolls, and Resideo Total Connect Remote Services is available as an option.

Specifications

Brand: First Alert

Model: PROA7PLUS-FA

Product line: ProSeries

Product type: Security Panel

Touchscreen: Yes

Z-Wave: Yes

Two-way voice: Yes

Number of zones supported: 250

Number of users: 96

Event log: 4000 events

Mount type: Wall mount

Width: 7.9″

Weight: 2.10 lb

Installation type: Professional installation

Installation notes

Mount the panel on a wall in a central, easy-to-reach spot where the touchscreen is readable and the built-in speaker and sounder can be heard. Confirm Wi-Fi signal and cellular coverage at the chosen location during commissioning, and pair the ProSiX sensors to the panel, since they lock to it once enrolled.
