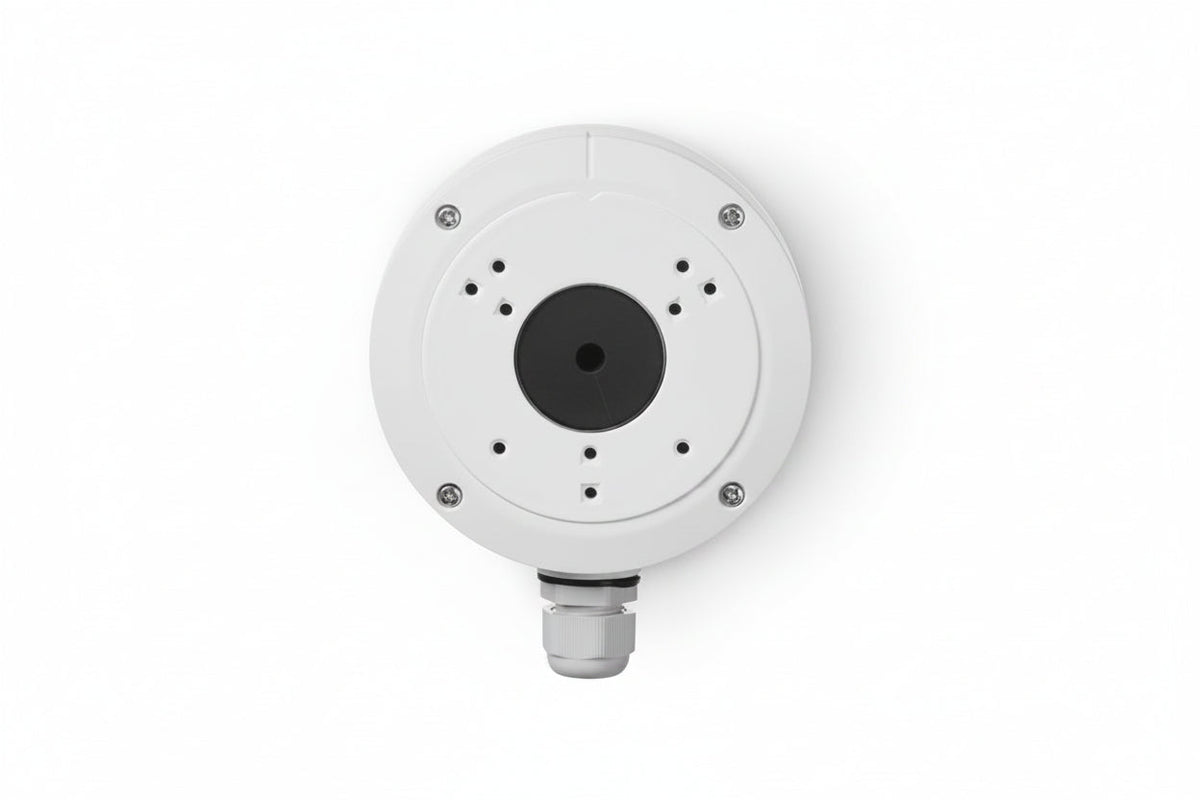

First Alert CX4AJBFTB CX4A Fixed Turret / Bullet Extended Junction Box

The First Alert CX4AJBFTB is an extended junction box for fixed turret and bullet cameras in the CX4 line. It gives the camera a housing for its cable connections at the mounting point, and it suits installers and property owners fitting CX4 cameras. It is made of aluminum alloy and is rated for operation from -40°F to 140°F.

Key features

• Built for fixed turret and bullet cameras in the First Alert CX4 line.
• Aluminum alloy construction.
• Rated for working temperatures from -40°F to 140°F (-40°C to 60°C).
• Rated for working humidity from 10% to 90%.
• Compact at 4.64 x 1.85″ (117.9 x 47mm) and 0.84 lb (380g).

Specifications

Brand: First Alert

Model: CX4AJBFTB

Product Line: CX4

Model Compatibility: CX4D

Material: Aluminum alloy

Color: Aluminum

Dimensions: 4.64 x 1.85″ (117.9 x 47mm)

Weight: 0.84 lb (380g)

Operating temperature: -40°F to 140°F (-40°C to 60°C)

Working humidity: 10% to 90%

Installation notes

Fasten the box to a solid, flat surface and make sure it is secure before the camera goes on. Pull the cable through with enough slack to terminate the connections cleanly, and check the camera model against the compatibility listed above before you start.
