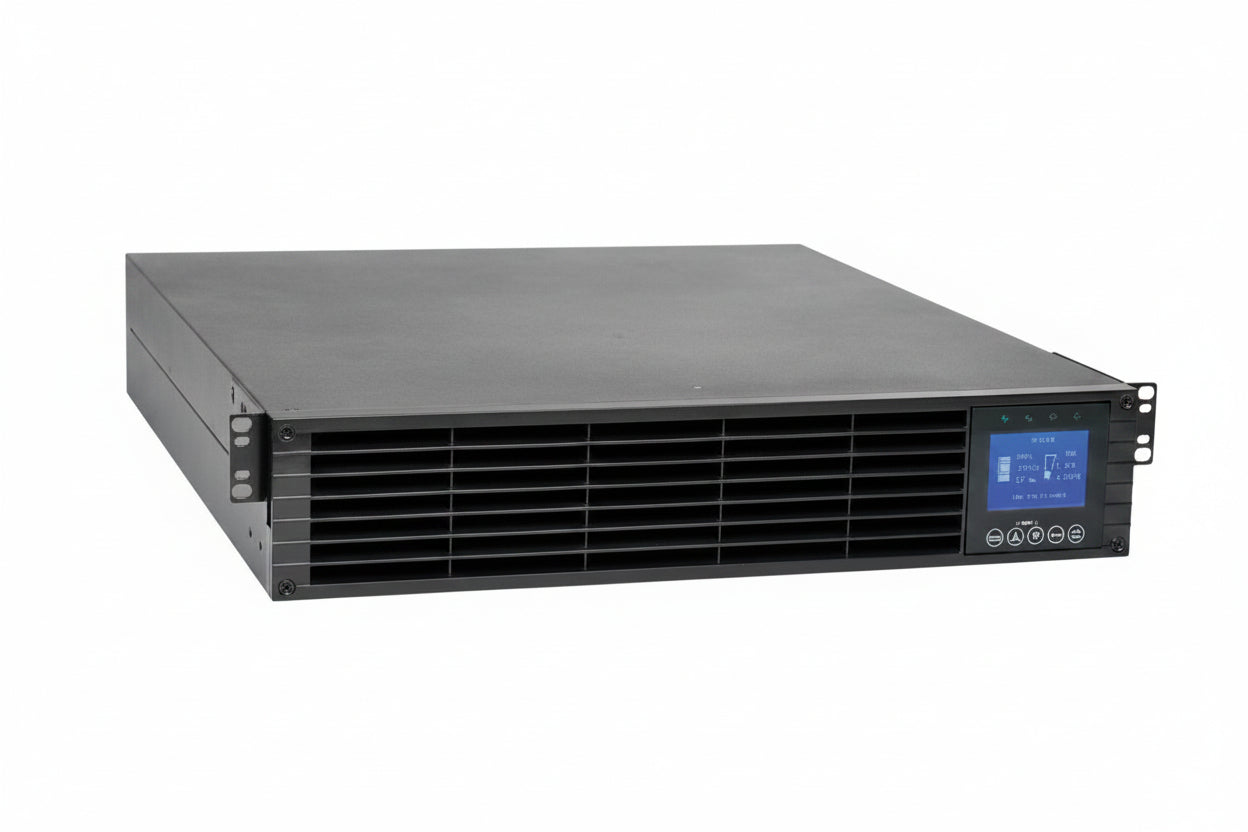

Eaton Tripp Lite SU3000LCD2UHV Double-Conversion UPS, 3000VA/2700W, 208/240V L6-20P Outlets, 2U RMS

The Eaton Tripp Lite SmartOnline SU3000LCD2UHV is a 3000VA/2700W double-conversion online UPS in a 2U rack-mount chassis, built to keep commercial networking and data equipment on clean, regulated power. It converts incoming AC to DC and back to sine wave AC, so connected gear runs from the inverter with zero transfer time in online mode. A hot-swappable internal battery and an LCD display make it practical for equipment rooms where uptime and easy monitoring matter.

Key features

• Double-conversion design delivers 3000VA/2700W of regulated output with zero transfer time in online mode.
• Eight outlets support extended run capability for connected equipment.
• The LCD display makes it easy to check UPS status at a glance.
• USB and DB9 ports provide connectivity, and the optional WEBCARDLXE adds remote access.
• The internal battery is hot-swappable, and 570 J of surge suppression protects connected loads.
• ENERGY STAR-certified for efficiency.

Specifications

Brand: Eaton

Model: SU3000LCD2UHV

Product line: SmartOnline

Product type: Double Conversion Online UPS

Capacity: 3000VA/2700W

Application: Commercial

Sector: Data Comm & Networking

Form factor / mount type: Rack Mount

Rack height: 2U

Input voltage: 230V AC

Output voltage: 230V AC

Receptacle detail: 2 x NEMA L6-20R

Receptacle type: NEMA 6-15/20R

Backup/run time (full load): 5.0 min

Width: 17.20″

Height: 3.50″

Depth: 24.30″

Environmental certification: RoHS

Environmentally friendly: Yes

Country of origin: VN

Packaged quantity: 1

Package contents: SmartOnline SU3000LCD2UHV 3000VA Rack-mountable UPS, 4-post rack-mount installation kit, USB cable, RS-232 cable, owner's manual

Installation notes

Confirm your rack has enough depth for the 24.30″ chassis and that the rack and rails are rated for the unit's weight before mounting. Check that the supply circuit and receptacle match the unit's 230V input, and leave clear airflow around the vents.
