Eaton Tripp Lite SRWO8U22DP Eaton Tripp Lite SRW08U22DP SmartRack 8U/12U/22U Expandable Low-Profile UPS-Depth Wall-Mount 2-Post Open-Frame Rack

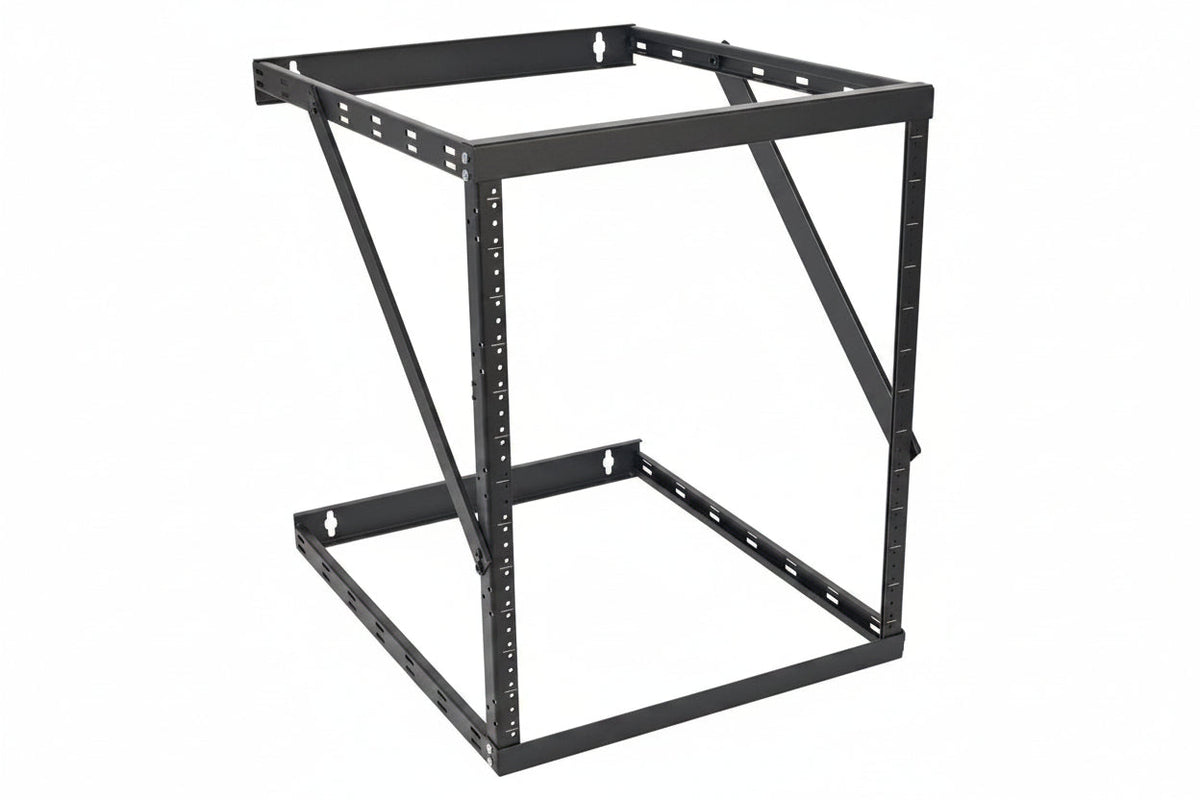

The Eaton Tripp Lite SRWO8U22DP SmartRack is an expandable 2-post, open-frame wall-mount rack that holds 19 in. rack equipment such as UPS systems and network switches. It suits installers and businesses who need to get network and power gear off the floor and onto a wall. The frame is made of black powder-coated steel and supports up to 150 lb (68 kgs).

Key features

• The open frame expands across 8U, 12U and 22U configurations.
• It is suited to UPS systems and network switches.
• The frame supports up to 150 lb (68 kgs) of equipment.
• Vertical mounting rails have 12-24 holes for 19 in. rack equipment.
• Wall-mounting holes are spaced 16 in. apart.
• Assembly uses the included hardware.

Specifications

Model: SRWO8U22DP

Brand: Eaton

Product Line: SmartRack

Product Type: Rack Frame

Application/Usage: LAN Switch

Form Factor: Wall Mount

Mount Type: Wall Mount

Material: Steel

Color: Black

Assembly Required: Yes

Rack Width: 19.0″

Rack Depth: 23.5″

Width: 20.10″

Height: 42.30″

Depth: 24.00″

Maximum Weight Capacity: 150.00 lb

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: CN

Package Contents: Owner's manual

Installation notes

Locate the wall mounting holes and anchor the frame to a surface that can carry the full loaded weight, using fasteners suited to that wall. Plan cable routing and leave working clearance around the frame before loading heavy items such as UPS units.
