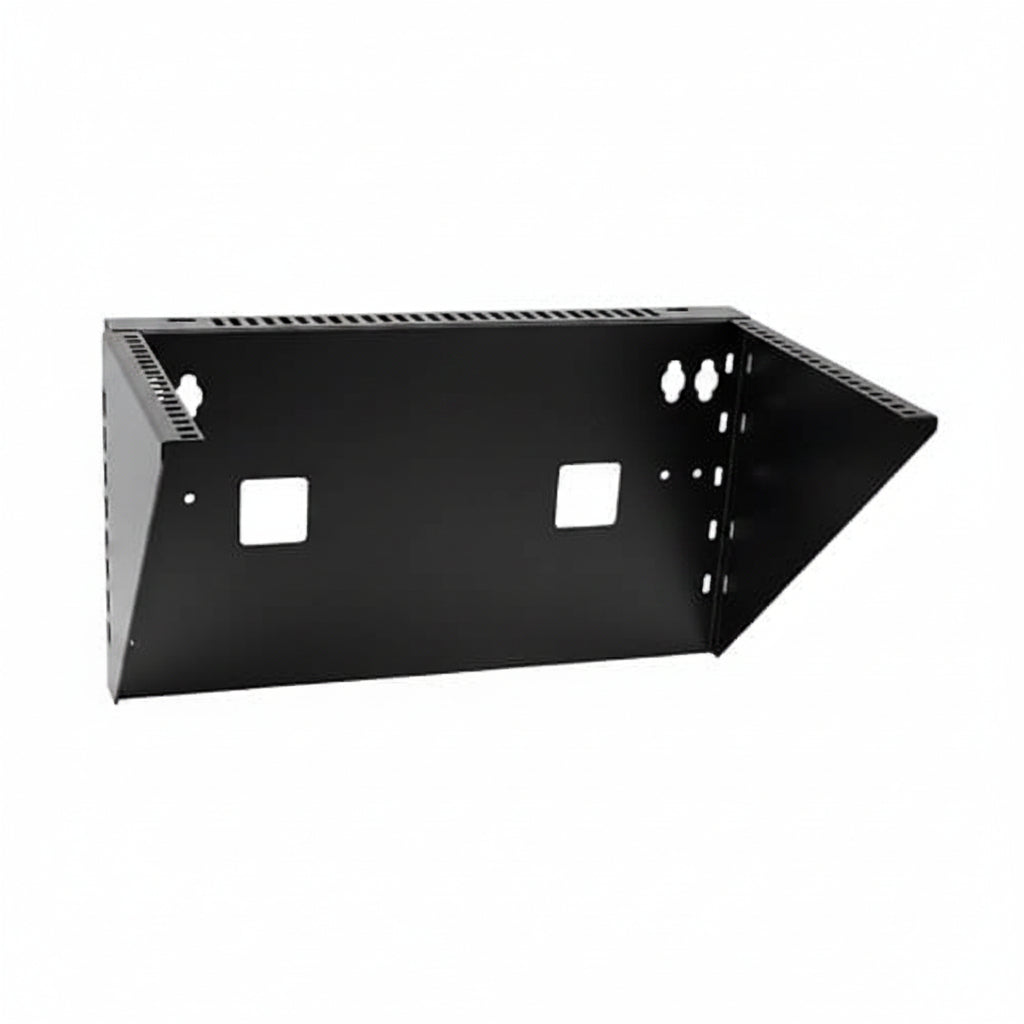

Eaton Tripp Lite SRWALLBRKT6U SmartRack Vertical Wall Mount Rack Bracket, 200lb (90.7kg), 2-Post, 6U

The Eaton Tripp Lite SRWALLBRKT6U is a SmartRack 6U vertical wall-mount rack bracket that holds 19 in. 2-post rack equipment, such as a network switch, off the floor. It suits home offices and small businesses that have rack-mount gear that doesn't need to be secured and no room for a standard 19-inch server rack. It's built from cold-rolled steel, supports up to 200 lb, and ships fully assembled.

Key features

• Mounts vertically on the wall to save floor space.
• Supports up to 200 lb (90.7 kg) of equipment.
• Made of cold-rolled steel with a black powder-coated finish.
• Arrives fully assembled for quick installation.
• Fits EIA-standard 19 in. 2-post rack equipment.
• Can also be mounted horizontally under desks or workbenches.
• Open-access design makes equipment and cabling easy to reach and manage.

Specifications

Brand: Eaton

Model: SRWALLBRKT6U

Product Line: SmartRack

Product Type: Mounting Bracket

Rack Height: 6U

Device Supported: Network Switch

Maximum Load Capacity: 200.00 lb

Color: Black

Height: 11.20″

Width: 19.70″

Depth: 11.20″

Weight: 8.38 lb

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: CN

Packaged Quantity: 1

Package Contents: SRWALLBRKT6U SmartRack 6U Vertical Wall-Mount Rack Bracket; (12) M6 screws; (12) M6 cup washers; (12) M6 cage nuts; installation guide

Installation notes

Locate wall studs and mount the bracket to them at the standard 16 in. spacing so it carries the full load securely. Plan cable routing before loading the equipment, and keep the open sides clear so cabling stays accessible.
