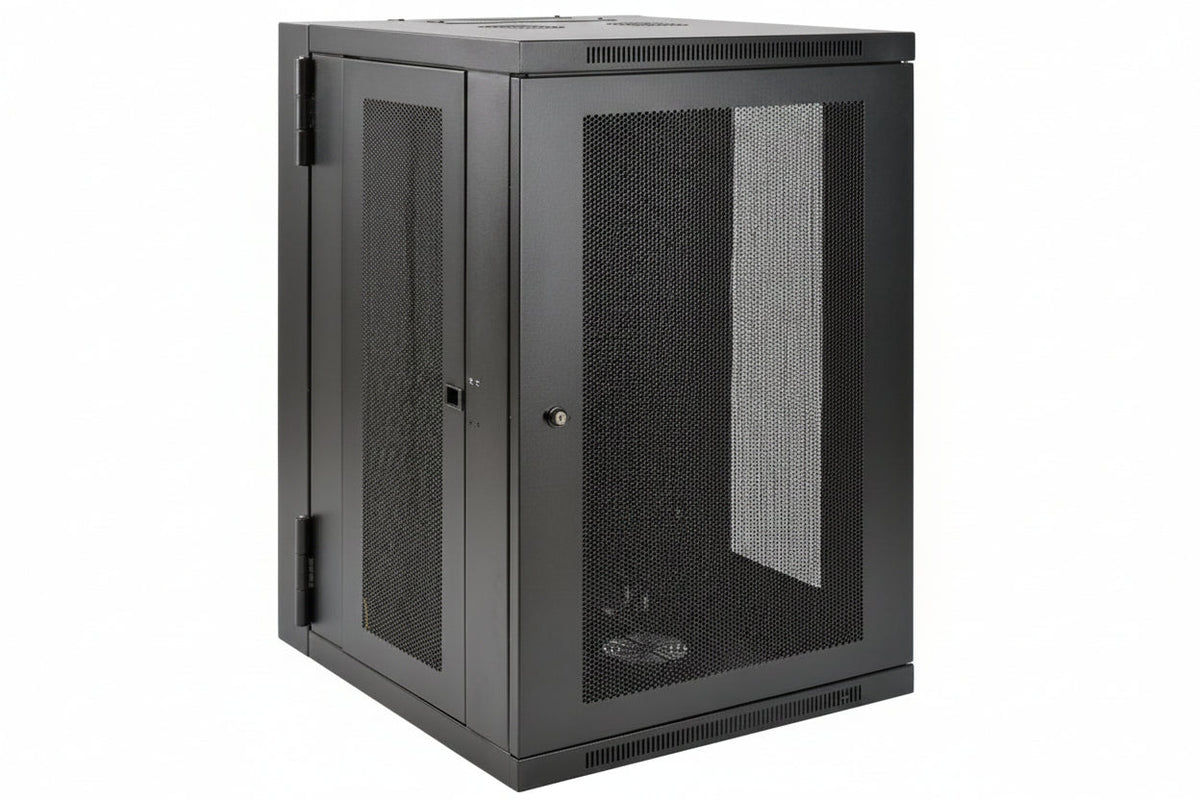

Eaton Tripp Lite SRW18USDP SmartRack UPS-Depth Wall Mount Half-Height Rack Enclosure with Hinged Back, 24.5" (62cm), 250lb (113.4kg), 18U

The Eaton Tripp Lite SRW18USDP SmartRack is an 18U wall-mount rack enclosure with a hinged back, built to hold EIA-standard 19-inch equipment in spaces with limited floor area, such as network wiring closets, retail locations, classrooms and back offices. It is sized for UPS-depth gear, with adjustable rails that take equipment up to 24.5 in. deep. It ships fully assembled, so it can go on the wall without any build time.

Key features

• The hinged design gives you access to the equipment for maintenance.
• Lockable side panels and doors help keep the contents secure, and the enclosure is listed as complying with PCI DSS for secure installations.
• Vented panels let air move through the cabinet to help with cooling.
• It supports loads up to 250 lb (113.4 kg).
• You can mount it on the wall or add the optional caster kit to make it mobile.

Specifications

Brand: Eaton

Model: SRW18USDP

Product Type: Rack Cabinet

Application/Usage: UPS

Rack Space: 18U

Rack Width: 19.0″

Rack Depth: 24.5″

Form Factor: Wall Mount

Mount Type: Wall Mount

Maximum Weight Capacity: 250.00 lb

Height: 35.60″

Width: 23.50″

Depth: 41.66 cm

Material: Steel

Color: Black

Assembly Required: No

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: CN

Package Contents: SRW18USDP enclosure; (42) M6 screws; (42) M6 cage nuts; (42) M6 washers; (42) 12-24 screws; (2) keys; owner's manual

Installation notes

Fasten the enclosure to wall structure that can carry the combined weight of the cabinet and its equipment, and leave enough clearance for the hinged back to swing open. Plan cable routing and the placement of heavier gear, such as the UPS, before loading the rack, and keep the vented panels unobstructed.
