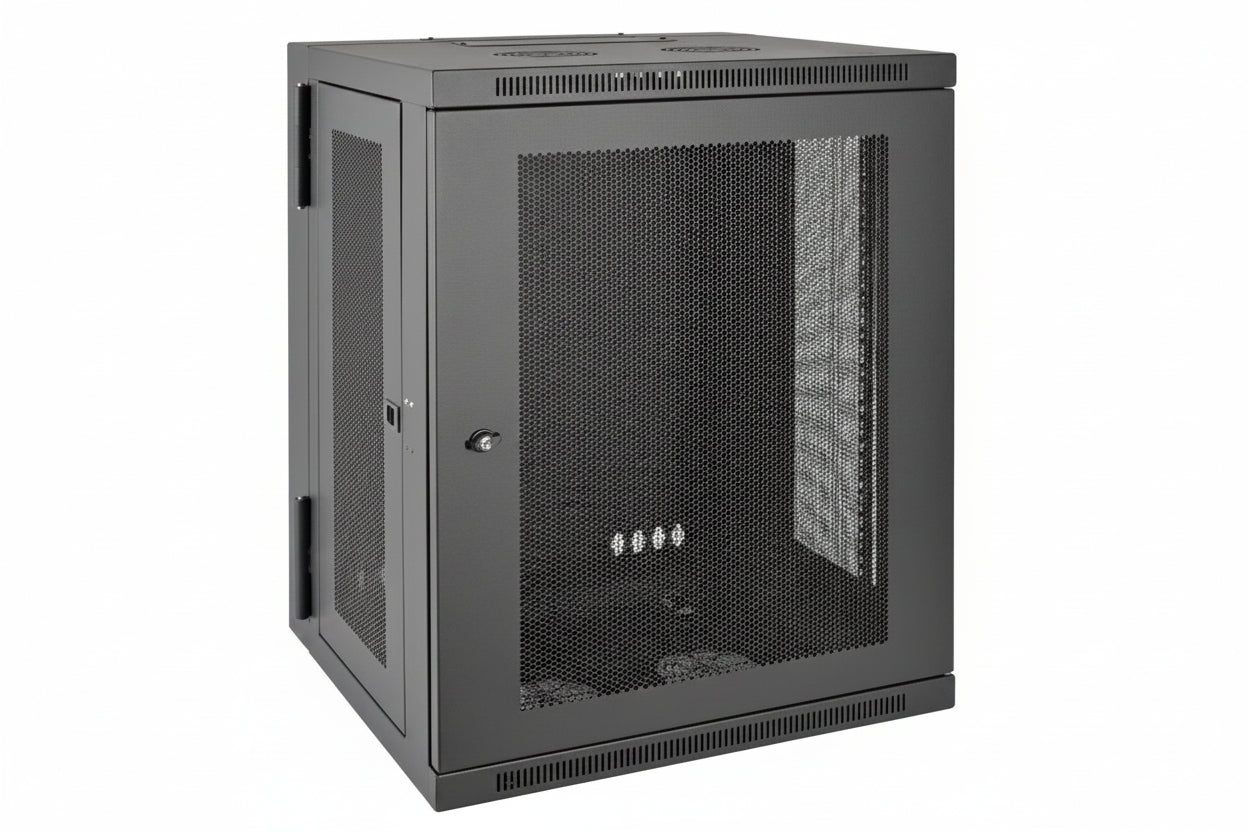

Eaton Tripp Lite SRW15US SmartRack Low-Profile Switch-Depth Wall Mount Half-Height Rack Enclosure with Hinged Back, 20.5" (52cm), 200lb (90.7kg), 15U

The Eaton Tripp Lite SRW15US SmartRack is a 15U wall-mount rack enclosure that holds EIA-standard 19-inch equipment in a low-profile, switch-depth cabinet. It suits network wiring closets, retail locations, classrooms and back offices where space is limited. It ships fully assembled, and its hinged back gives you access to the equipment without pulling the cabinet off the wall.

Key features

• Provides 15U of rack space for EIA-standard 19-inch equipment.
• The hinged back opens up access to equipment mounted inside.
• Doors are reversible, and the side panels and doors lock for security.
• Vented panels allow airflow around the installed gear.
• Adjustable rails accommodate equipment up to 20.5 inches deep.
• Mounts on the wall, or can be moved around with the optional caster kit.

Specifications

Model: SRW15US

Product Line: SmartRack

Product Type: Rack Cabinet

Form Factor: Wall Mount

Mount Type: Wall Mount

Rack Width: 19.0″

Rack Depth: 20.5″

Height: 30.30″

Width: 23.60″

Depth: 21.60″

Maximum Weight Capacity: 225.00 lb

Material: Steel

Color: Black

Features: Cable Management

Assembly Required: No

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: CN

Package Contents: SRW15US enclosure, (20) M6 screws, (20) M6 cage nuts, (20) M6 washers, (20) 12-24 screws, (2) keys, owner's manual

Installation notes

Mount the enclosure to a solid wall surface using hardware suited to the wall type, and confirm the loaded weight is within the stated capacity before filling it. Leave clearance in front of the cabinet for the doors and behind it for the hinged back to swing open, and keep the vented panels unobstructed.
