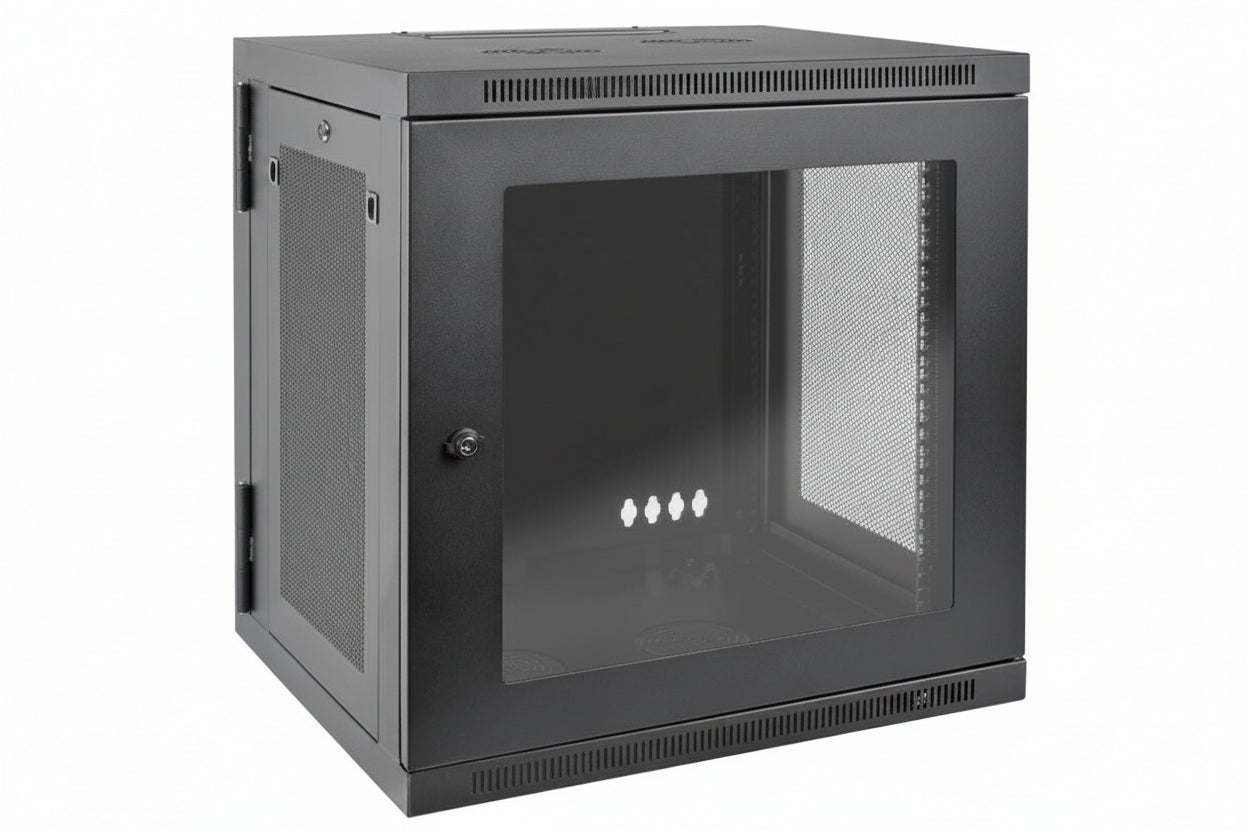

Eaton Tripp Lite SRW12USDPG SmartRack UPS-Depth Small Wall Mount Rack Enclosure with Clear Acrylic Window and Hinged Back, 24.5" (62cm), 200lb (90.7kg), 12U

The Eaton Tripp Lite SRW12USDPG SmartRack is a 12U wall-mount rack enclosure built to hold EIA-standard 19-inch equipment, including a UPS, in spaces with limited floor space such as network wiring closets, retail locations, classrooms and back offices. It ships fully assembled, and a clear acrylic window lets you check on the gear without unlocking the enclosure. A hinged back gives access for maintenance.

Key features

• Offers 12U of rack space for EIA-standard 19-inch equipment, with a 200 lb maximum load capacity.
• The clear acrylic window lets you monitor equipment without unlocking the enclosure.
• The hinged back makes access and maintenance easier.
• Side panels and doors lock for security, and vented panels support airflow.
• Adjustable rails accommodate equipment up to 24.5 in. deep.
• Mounts on the wall, or can be moved around with the optional caster kit.

Specifications

Brand: Eaton

Model: SRW12USDPG

Product Line: SmartRack

Product Type: Rack Cabinet

Application/Usage: UPS

Form Factor: Wall Mount

Mount Type: Wall Mount

Rack Units: 12U

Rack Width: 19.0″

Rack Depth: 24.5″

Height: 25.10″

Width: 23.60″

Depth: 25.50″

Weight: 64.00 lb

Maximum Weight Capacity: 200.00 lb

Material: Acrylic

Color: Transparent

Assembly Required: No

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: CN

Package Contents: SRW12USDPG enclosure, (20) M6 screws, (20) M6 cage nuts, (20) M6 washers, (20) 12-24 screws, (2) keys, owner's manual

Installation notes

The enclosure weighs 64 lb empty, so plan for a second person to help lift it and anchor it to a wall structure that can carry the enclosure plus its full equipment load. Leave clearance behind the unit so the hinged back can swing open, and keep the vented panels clear for airflow.
