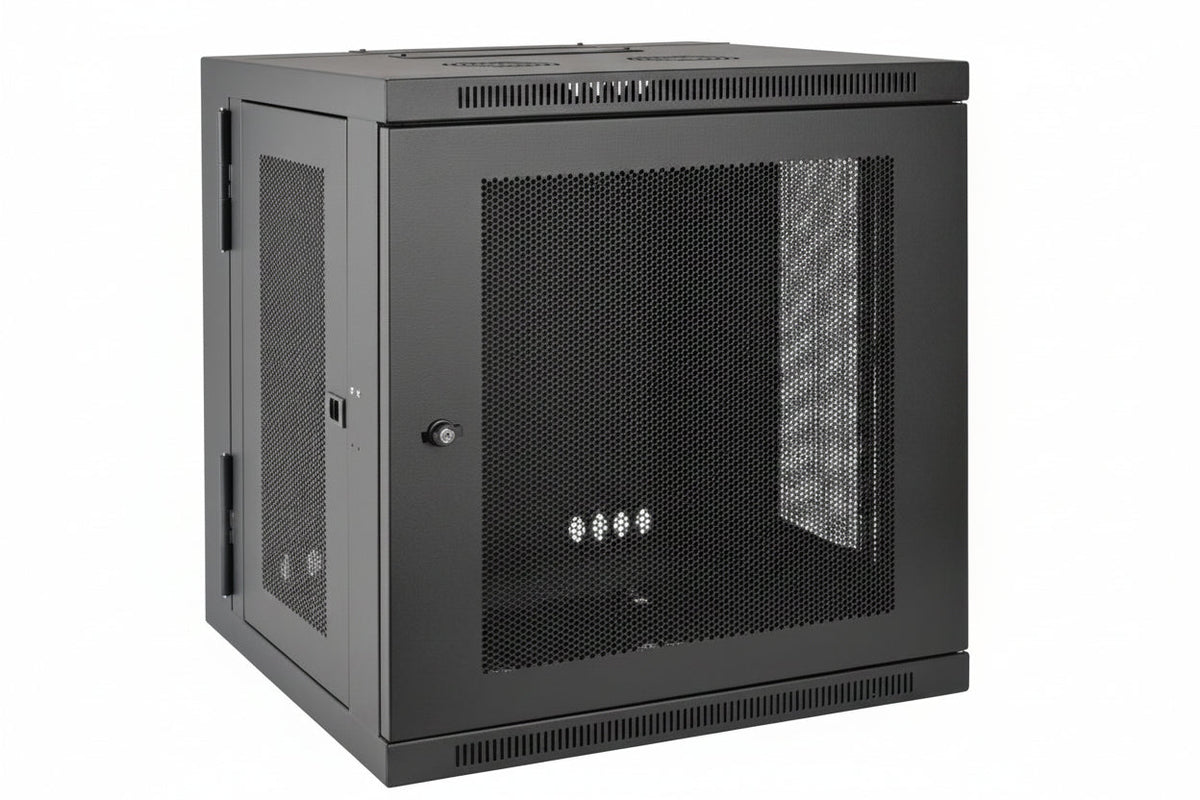

Eaton Tripp Lite SRW10US SmartRack 10U Low-Profile Switch-Depth Wall-Mount Small Rack Enclosure, Hinged Back

The Eaton Tripp Lite SRW10US SmartRack is a 10U wall-mount rack enclosure for 19-inch EIA equipment, built for network installations where floor space is limited. It has a low-profile, switch-depth design with a hinged back that opens up access for maintenance. Vented, lockable panels and doors, plus a PCI DSS-compliant design, make it a fit for installers securing network gear in offices and other business settings.

Key features

• Offers 10U of rack space for EIA-standard 19-inch equipment.
• The hinged back makes access and maintenance easier.
• Reversible doors give you flexibility in how you install it.
• Vented panels promote airflow, and the cable routing ports have removable covers.
• Lockable side panels and doors help keep equipment secure.
• It ships fully assembled, and can be mounted on a wall or the floor.

Specifications

Brand: Eaton

Model: SRW10US

Product Line: SmartRack

Product Type: Rack Cabinet

Form Factor: Wall Mount

Mount Type: Wall Mount

Rack Width: 19.0″

Height: 21.60″

Width: 23.60″

Depth: 21.50″

Maximum Weight Capacity: 140.00 lb

Color: Black

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: CN

Package Contents: SRW10US SmartRack 10U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet; (24) M6 screws; (24) M6 cage nuts; (24) M6 washers; (24) 12-24 screws; (2) Keys; Owner’s manual

Installation notes

Mount the enclosure to a solid wall structure that can carry the combined weight of the cabinet and its equipment, and keep the vented panels clear so air can move freely. Leave room to swing the hinged back open, and plan your cable runs through the routing ports before loading the rack.
