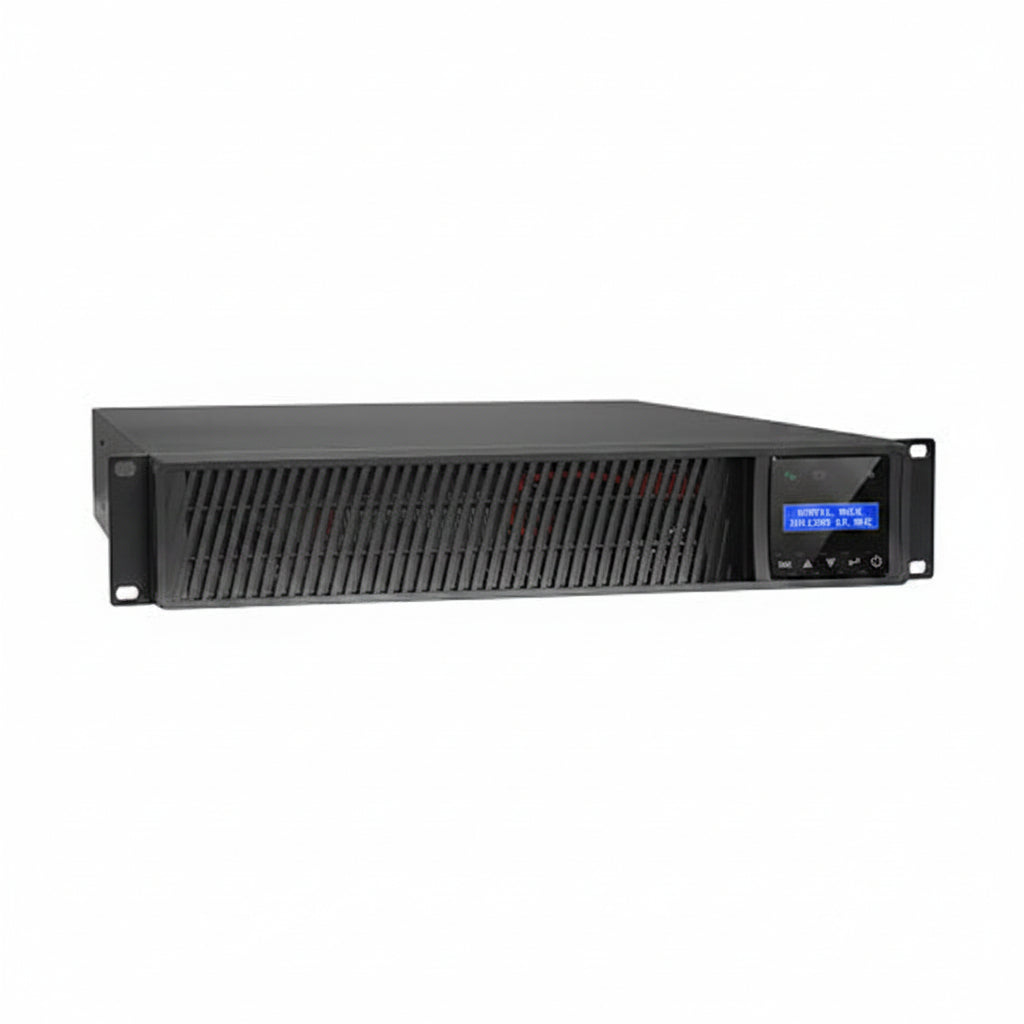

Eaton Tripp Lite SMART3000RMXL2U SmartPro 120V 3KVA 2.88kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9

The Eaton Tripp Lite SMART3000RMXL2U is a SmartPro line-interactive UPS that delivers pure sine wave AC power to servers, network gear and data storage equipment. It is a 3000VA / 3000W unit with seven outlets, automatic voltage regulation and an LCD monitoring screen. Extended run is possible with optional battery modules, and an optional network card adds remote access, which suits installers building out rack or tower power protection.

Key features

• Pure sine wave output across all seven outlets.
• Automatic Voltage Regulation and EMI / RFI line noise filtering help condition incoming power.
• The LCD screen shows monitoring information, and RS-232 and USB ports handle communication.
• Runtime can be extended with optional battery modules, and remote access is available through an optional network card.
• It can be installed in a rack or used as a tower, and it is ENERGY STAR 2.0 certified.

Specifications

Brand: Eaton

Model: SMART3000RMXL2U

Product Line: SmartPro

Product Type: Line-interactive UPS

Waveform Type: Pure Sine Wave

Phase: Single Phase

Input Voltage: 120V AC

Output Voltage: 120V AC

Plug/Connector Type: NEMA L5-30P

Number of Outlets: 7

Receptacle Detail: 1 x NEMA L5-30R

Receptacle Type: NEMA 5-15/20R

Transfer Time: 5ms

Surge Energy Rating: 380J

Backup/Run Time (Full Load): 3.0min

Backup/Run Time (Half Load): 10.0min

Battery Recharge Time: 5.00hr

Battery Chemistry: Lead Acid

Battery Characteristics: VRLA

DC System Voltage: 72

Replaceable Battery: Yes

Hot Swappable: Yes

Overload Protection: Yes

Alarm: Low Battery

Network Management: SNMP Manageable

Serial Port: Yes

Software Included: Yes

Form Factor: Tower

Width: 17.50″

Height: 3.50″

Depth: 19.00″

Weight: 64.00lb

Maximum Operating Temperature: 104°F

Maximum Operating Elevation: 10000'

Maximum Storage Elevation: 32808'

Application/Usage: Data Storage

Energy Star: Yes

Environmental Certification: RoHS

Environmentally Friendly: Yes

Sector: Data Comm & Networking

Country of Origin: TW

Packaged Quantity: 1

Installation notes

At 64.00lb, this unit is heavy, so plan for two people and use proper rack rails or a supported shelf when mounting. Confirm the input plug type matches the available circuit, leave clear airflow around the unit, and connect the communication cable and software before loading critical equipment.
