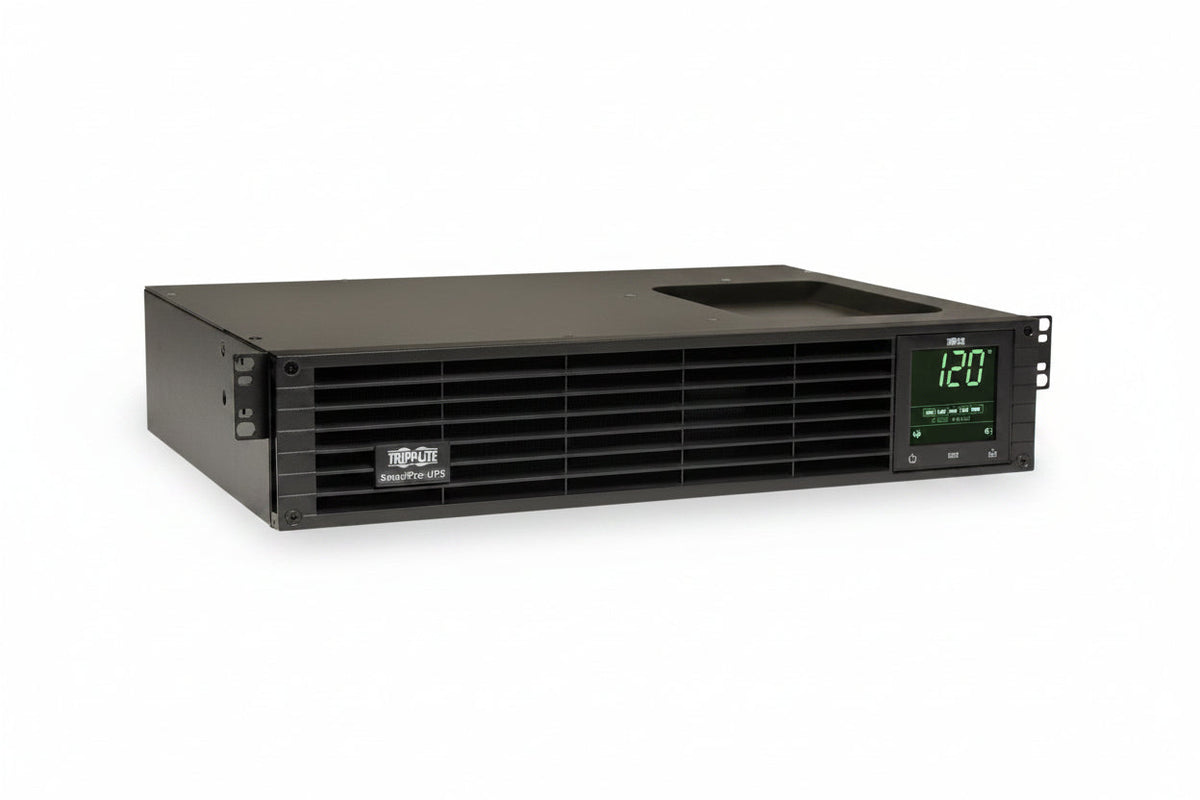

Eaton Tripp Lite SMART1500RM2U SmartPro 120V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U, Network Card Options, LCD, USB, DB9, Outlets

The Eaton Tripp Lite SMART1500RM2U is a 1500VA/1350W line-interactive UPS that delivers pure sine wave power to rack-mounted servers, network storage and telecom gear. It suits IT closets and server rooms that need regulated power, with eight outlets, an LCD for monitoring and hot-swappable battery modules. It installs as a rack or tower unit and offers optional remote management through the WEBCARDLX.

Key features

• Pure sine wave output keeps sensitive equipment running on clean power during an outage.
• Eight NEMA 5-15R outlets provide surge protection for connected devices.
• Automatic Voltage Regulation and EMI/RFI line noise filtering help condition incoming power.
• Hot-swappable VRLA battery modules let the battery be replaced without a full shutdown.
• RS-232 and USB ports support safe shutdown, and the LCD shows UPS status at a glance.
• Rack or tower installation gives flexibility in how the unit is deployed.

Specifications

Model: SMART1500RM2U

Brand: Eaton

Product line: SmartPro

Product type: Line-interactive UPS

Capacity: 1500VA / 1350W

Waveform: Pure sine wave

Input voltage: 110V AC

Output voltage: 120V AC

Plug/connector type: NEMA 5-15P

Receptacles: 8 x NEMA 5-15R

Transfer time: 4ms

Surge energy rating: 570J

Battery chemistry: Lead acid (VRLA)

DC system voltage: 36

Battery life: 6-year

Battery recharge time: 4.00 hr

Run time (full load): 4.5 min

Run time (half load): 13.0 min

Hot swappable: Yes

Replaceable battery: Yes

Network management: SNMP

Overload protection: Yes

Alarm: On battery

Status indicators: Yes

Form factor: Tower

Dimensions (H x W x D): 3.50″ x 17.50″ x 13.50″

Weight: 46.00 lb

Maximum operating temperature: 104°F

Maximum operating elevation: 6561′

Environmental certification: RoHS

Country of origin: CN

Package contents: UPS, USB cable, DB9 cable, EPO cable, rack-mounting hardware, owner's manual

Installation notes

At 46 lb, the unit is heavy, so plan for support in the rack and use two people to lift it into place. Leave airflow around the unit, connect it to a properly rated wall outlet, and cable the USB or DB9 link to the protected server so shutdown software can be configured during commissioning.
