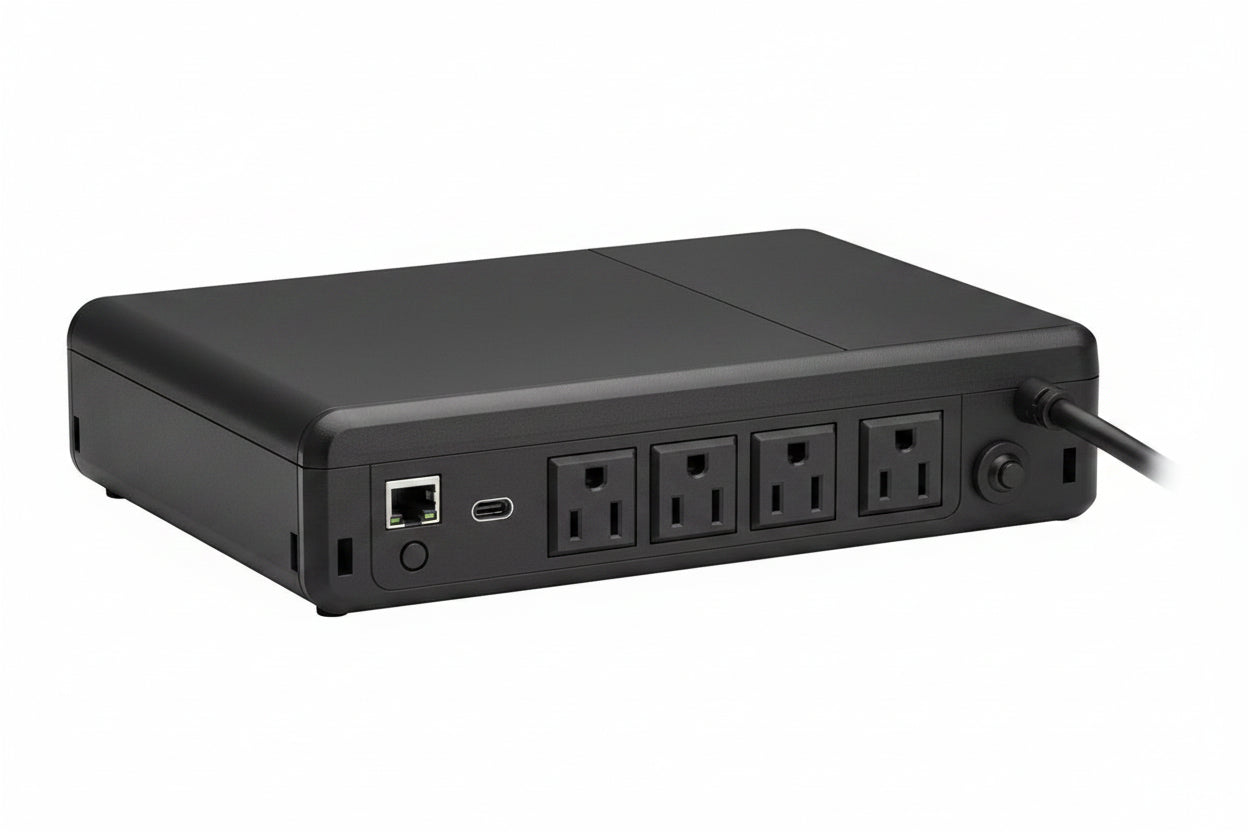

Eaton Tripp Lite BC600RNC Standby Cloud-Connected UPS with Remote Monitoring, 5-15R Outlets (Surge + Battery Backup), 5-15P Plug, Desktop, 600VA 300W 120V, 4 NEMA

The Eaton Tripp Lite BC600RNC is a 600VA/300W standby UPS that keeps PCs and POS systems running through blackouts, brownouts, surges and line noise. It is cloud-connected, so you can monitor it remotely through an app, and network settings can be loaded using a QR code and NFC. Four NEMA 5-15R outlets provide both surge protection and battery backup, and the unit mounts on a desktop, a wall or the floor.

Key features

• Cloud-connected design lets you check the UPS remotely through an app.
• QR code and NFC make it quick to load network settings during setup.
• The UPS restarts automatically once utility power returns.
• A self-test function and a user-replaceable battery simplify upkeep.
• An audible alarm and diagnostic LEDs report the unit's status.
• 190 joules of surge suppression helps protect connected equipment.

Specifications

Model: BC600RNC

Product Type: Standby UPS

Capacity: 600VA / 300W

Input Voltage: 120V AC

Output Voltage: 120V AC

Input Frequency: 60Hz

Output Frequency: 60Hz

Phase: Single Phase

Waveform Type: PWM Sine Wave

Transfer Time: 6ms

Receptacle Detail: 4 x NEMA 5-15R

Number of Battery & Surge Outlets: 4

Surge Energy Rating: 190J

EMI/RFI Noise Filter: Yes

Overload Protection: Yes

Battery Chemistry: Lead Acid

Battery Characteristics: VRLA

DC System Voltage: 12

Replaceable Battery: Yes

Battery Recharge Time: 8.00hr

Backup/Run Time (Half Load): 5.0min

Backup/Run Time (Full Load): 1.2min

Network Management: Network Card

Alarm: Battery Mode

Features: Audible Alarm

Status Indicators: Yes

Application/Usage: Computer

Form Factor: Desktop/Surface/Wall Mount

Mount Type: Wall Mount

Dimensions (H x W x D): 2.30″ x 10.00″ x 7.10″

Color: Green

Maximum Operating Temperature: 122°F

Maximum Operating Elevation: 6562′

Energy Star: Yes

Environmentally Friendly: Yes

Country of Origin: VN

Package Contents: BC600RNC 120V 600VA 300W Standby UPS, (4) M4 x 12 mm screws, (4) M4 x 20 mm screws, Quick Start Guide

Installation notes

Place the UPS where its status LEDs and audible alarm are easy to see and hear, and leave the vents clear. If you wall mount it, use the supplied screws and make sure the surface can carry the unit's weight. Plan the network connection and app pairing at commissioning so remote monitoring is working before the unit goes into service.
