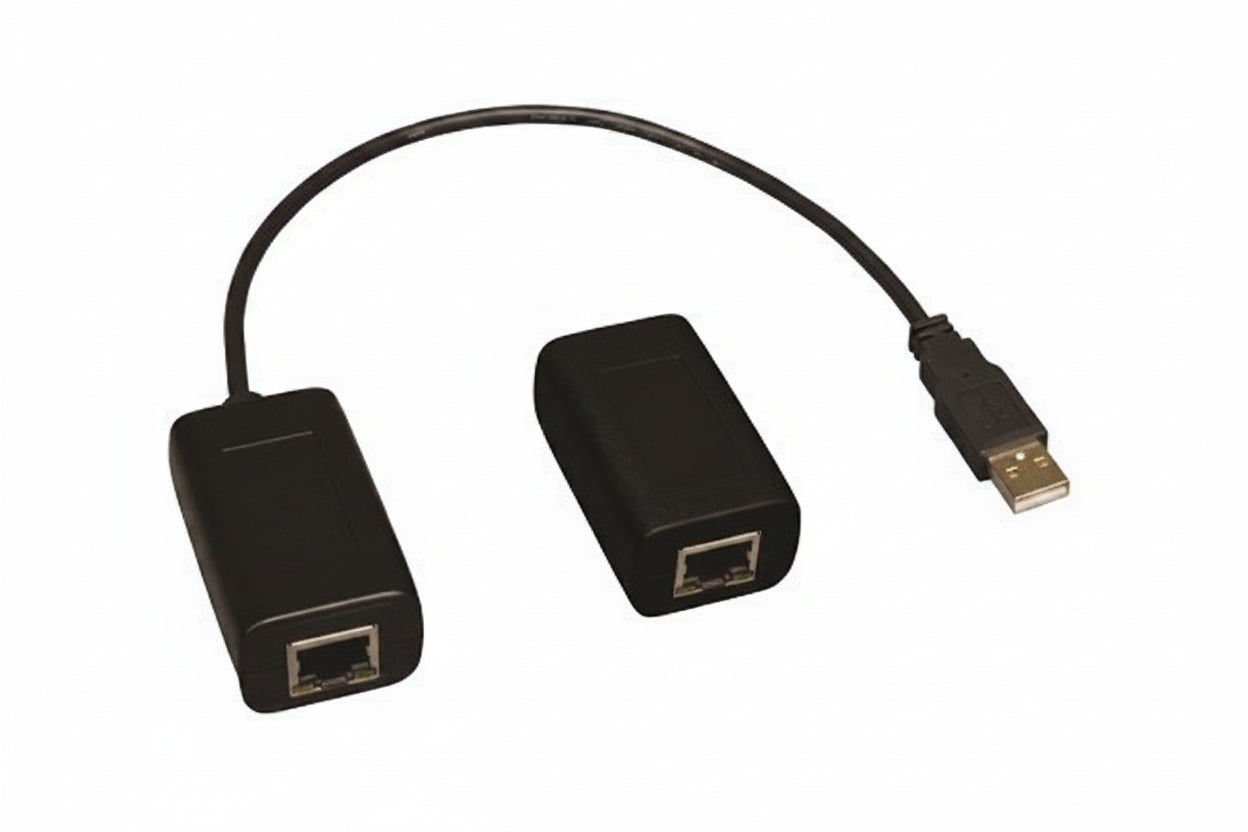

Eaton Tripp Lite B202-150 1-Port USB Over CAT5/CAT6 Extender, Transmitter and Receiver, up to 150' (45.72 m), TAA

The Eaton Tripp Lite B202-150 is a 1-port USB extender kit that sends USB 1.1 signals over CAT5, CAT5e or CAT6 cable, so a computer and a USB peripheral can sit up to 150' (45.72 m) apart. It suits installers and businesses who need to place a USB device away from the host. It runs on bus power, so it needs no AC adapter, and it is TAA compliant for GSA Schedule purchasing.

Key features

• Extends USB 1.1 connections up to 150' from the computer to the peripheral.
• Runs over standard CAT5, CAT5e or CAT6 cable.
• Draws power from the USB bus, so no AC adapter is required.
• Supports transfer rates from 1.5Mbps to 12Mbps.
• TAA compliant for GSA Schedule.

Specifications

Model: B202-150

Product type: USB Extender

Ports: 1

Maximum distance: 150' (45.72 m)

USB standard: USB 1.1

Transfer rates: 1.5Mbps to 12Mbps

Cable type: CAT5/CAT5e/CAT6

Power: Bus powered

Color: Black

Environmental certification: RoHS

TAA compliant: Yes

Country of origin: TW

Packaged quantity: 1

Package contents: Local transmitter unit, remote receiver unit, owner's manual

Installation notes

Connect the transmitter to the host computer and the receiver to the peripheral, then run the CAT5/CAT5e/CAT6 cable between the two units. Test the cable run before final placement, and keep the run within the rated 150' distance.
