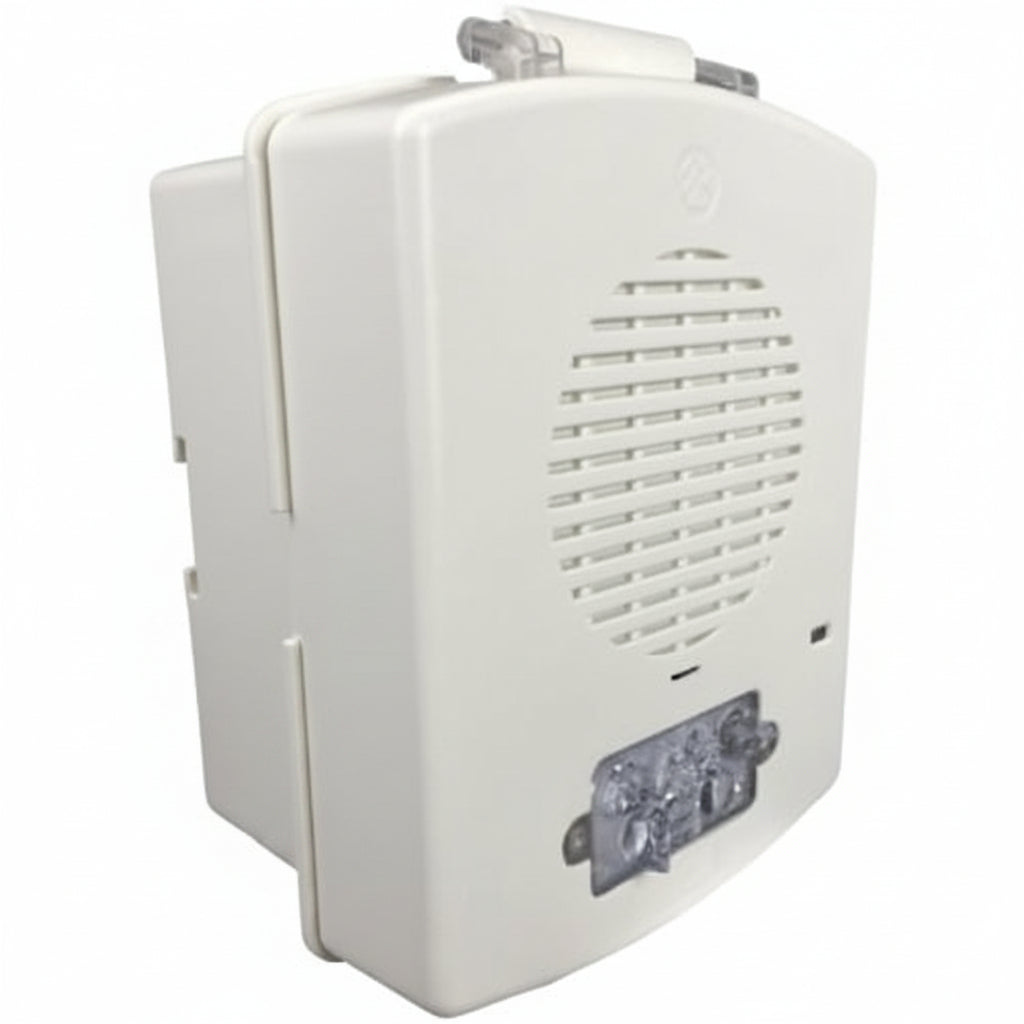

Eaton EL4XSPST-FW Eluxa Outdoor Series Speaker Strobe, 4X, IP66, White

The Eaton EL4XSPST-FW is an outdoor fire alarm speaker strobe from the Eluxa Outdoor series, finished in white with a clear lens. It combines a Multi-Tone audible and an LED strobe in one rectangular unit, so it suits installers adding voice or tone notification and visual signaling at exterior locations. A choice of eight tones, a 76-94 dBA output range and a clean look with no visible mounting screws stand out.

Key features

• Eight tones are available on the Multi-Tone audible, and the tone can be coded without affecting the strobe.
• The audible and the LED strobe each need their own circuit, so two NACs are required.
• Operation is at 25 or 70 VRMS, with taps from 1/8W up to 8W at 70V.
• Sound output runs from 76 to 94 dBA, depending on the setting.
• It mounts on a wall or a ceiling, with no visible mounting screws.
• It meets synchronizing standards with Wheelock DSM SyncModules, PS Power Supplies, Intelligent Notification Controller or SAFEPATH products, and xenon and LED strobes can be mixed in the same field of view.

Specifications

Brand: Eaton

Model: EL4XSPST-FW

Product Type: Speaker Strobe

Product Line: Eluxa Outdoor Weatherproof

Product Series: Eluxa weatherproof

Color: White

Lens Color: Clear

Shape: Rectangular

Indoor/Outdoor: Outdoor

Width: 6.00″

Height: 6.00″

Depth: 8.00″

Weight: 4.00 lb

Packaged Quantity: 1

Installation notes

Plan the cabling for two separate circuits per device, one for the strobe and one for the Multi-Tone audible, and confirm the speaker tap and voltage setting match the amplifier output. Pick the wall or ceiling position with the coverage area in mind, and check synchronization and tone selection during commissioning.
