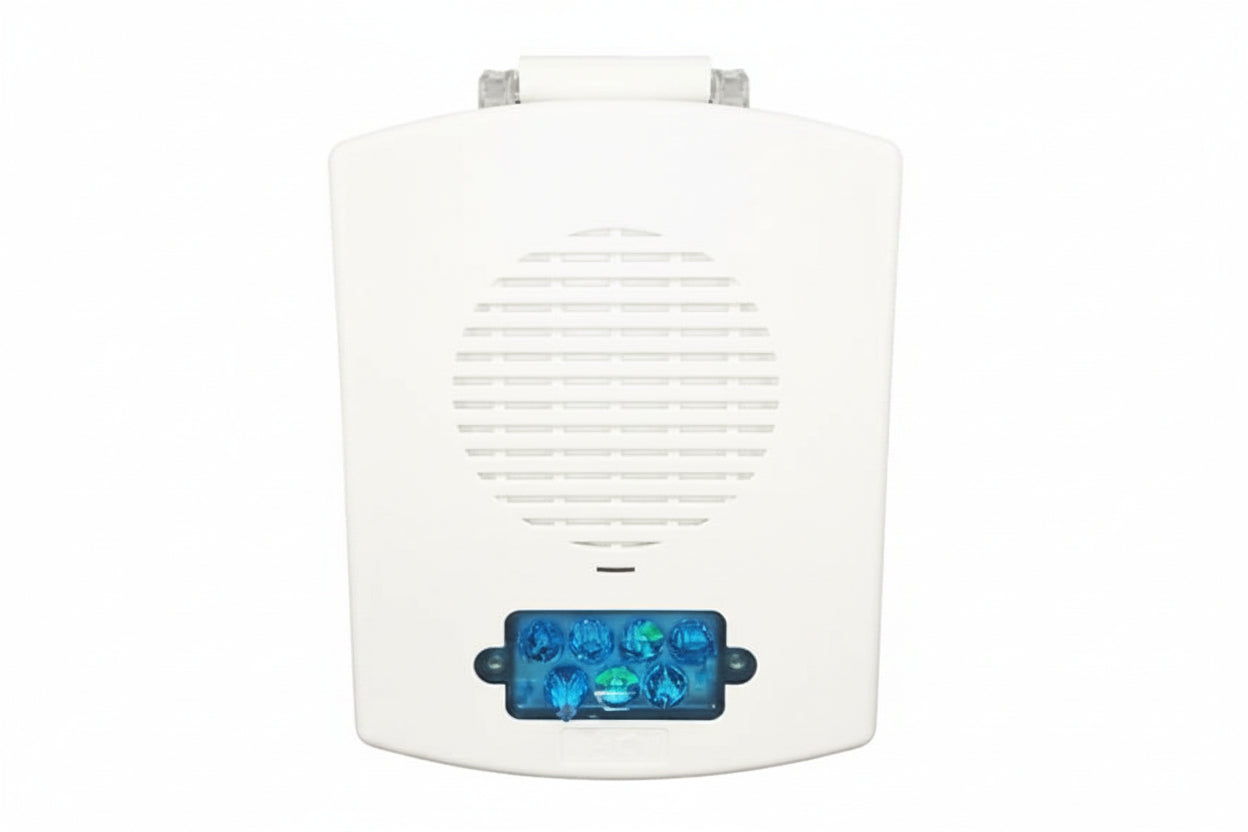

Eaton EL4XMTSTB-NW Multi-Tone Strobe No Lettering with Back Box, White

The Eaton EL4XMTSTB-NW is a white, multi-tone strobe from the Eluxa Outdoor Weatherproof line, supplied with a back box and no lettering. It is built for fire alarm notification in exterior or harsh indoor spaces, and suits installers and facility owners dealing with humidity, heat, cold or dust. Its NEMA 3R/4X and IP54/IP66 ratings and six candela settings in one device are what set it apart.

Key features

• NEMA type 3R and 4X ratings give resistance to corrosion, and to ice formation on 4X.
• IP54 and IP66 ratings protect against dust and water.
• The ratings suit areas of high humidity, extreme heat or severe cold.
• Six candela settings are available in a single device.
• Current draw is among the lowest in the industry across the full candela range.

Specifications

Brand: Eaton

Model: EL4XMTSTB-NW

Product Line: Eluxa Outdoor Weatherproof

Product Type: Strobe

Color: White

Lens Color: Clear

Shape: Rectangular

Packaged Quantity: 1

Depth: 8.00″

Height: 6.00″

Width: 6.00″

Weight: 4.00 lb

Installation notes

Mount the unit on a solid surface with the back box secured, and seal conduit and cable entries so the weather ratings are not compromised. Set the candela level for the coverage area during commissioning and confirm the strobe operates with the rest of the notification circuit.
