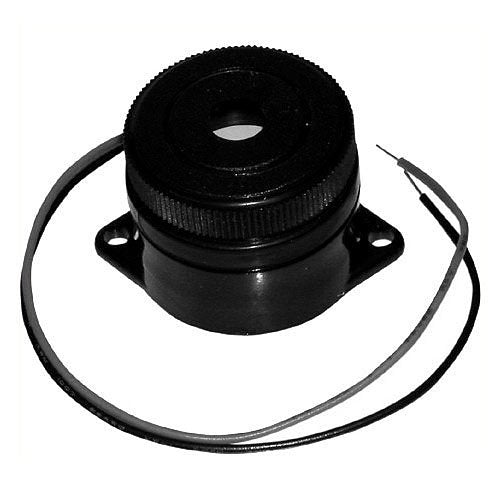

ADI PRO 0E-PIEZOSIRN Miniature Piezo Siren, Continuous Tone

The ADI PRO 0E-PIEZOSIRN is a miniature piezo siren that sounds a continuous tone when triggered. It suits installers and DIYers who need a compact indoor audible alarm that fits a panel opening and runs on a wide range of DC voltages. Its low current draw and 90 dB output at 3′ (1 m) are what stand out in a package this small.

Key features

• Sounds a continuous tone rather than a pulsed pattern.
• Accepts a wide DC voltage range while drawing little current.
• Produces 90 dB at 3′ (1 m).
• Fits a 0.75″ panel opening, and can also be used in other applications.
• Comes with 5″ lead wires attached.
• Housed in black ABS plastic.

Specifications

Brand: ADI PRO

Model: 0E-PIEZOSIRN

Product Type: Siren

Alarm Type: Audible

Tone: Continuous

Sound Output: 90 dB at 3′ (1 m)

Operating Voltage: 3-28VDC

Current Draw: 20 mA at 28VDC

Power Source: DC Power

Operating Temperature: 32°F to 100°F (0°C to 38°C)

Mount Type: Panel Mount

Panel Opening: 0.75″

Lead Wires: 5″

Material: ABS plastic

Color: Black

Indoor/Outdoor: Indoor

Length: 1.10″

Width: 1.40″

Height: 1.70″

Depth: 1.60″

Country of Origin: CN

Package Contents: Miniature Piezo Siren, Panel Mount

Installation notes

Keep the installation indoors and within the listed temperature range. Check polarity and the supply voltage before connecting, and splice or terminate the short lead wires securely so the siren can be mounted flush in the panel opening.
