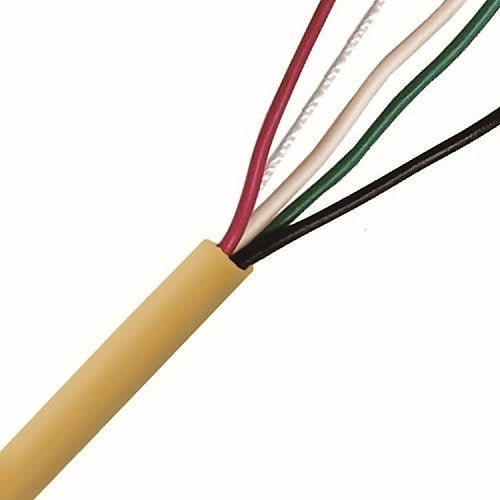

ADI PRO RT-8001504 22/4 Stranded General Purpose Cable, CL2, Speed Coil, 500', Yellow

The ADI PRO RT-8001504 is a 22 AWG, 4-conductor (2-pair) stranded general purpose security cable with a CL2 rating, supplied as a 500′ Speed Coil in yellow. It suits installers and businesses running low-voltage security wiring who want bare copper conductors in an unshielded cable. It is built with oxygen-free copper and PVC insulation, and it is listed as meeting all ANSI/TIA/EIA standards.

Key features

• CL2-rated cable made with oxygen-free copper.
• Bare copper conductors.
• Stranded 22 AWG construction with 4 conductors in 2 pairs.
• Meets all ANSI/TIA/EIA standards.
• Yellow jacket color, supplied in a 500′ Speed Coil.

Specifications

Brand: ADI PRO

Model: RT-8001504

Product Type: Security Cable

Cable Type: General Purpose

Cable Style: Security

Rating: CL2

Length: 500′

Packaging: Speed Coil

Color: Yellow

American Wire Gauge: 22AWG

Number of Conductors: 4

Number of Pairs: 2

Solid or Stranded: Stranded

Shielding: No

Material: Copper

Insulation Material: PVC (Polyvinyl Chloride)

Certifications & Standards: RoHS

Environmental Certification: RoHS

Country of Origin: VN

Installation notes

Because this cable is unshielded, route it away from power wiring and other sources of electrical noise where possible. Pull it gently through pathways, avoid sharp bends, and label both ends before termination so each run is easy to identify later.
