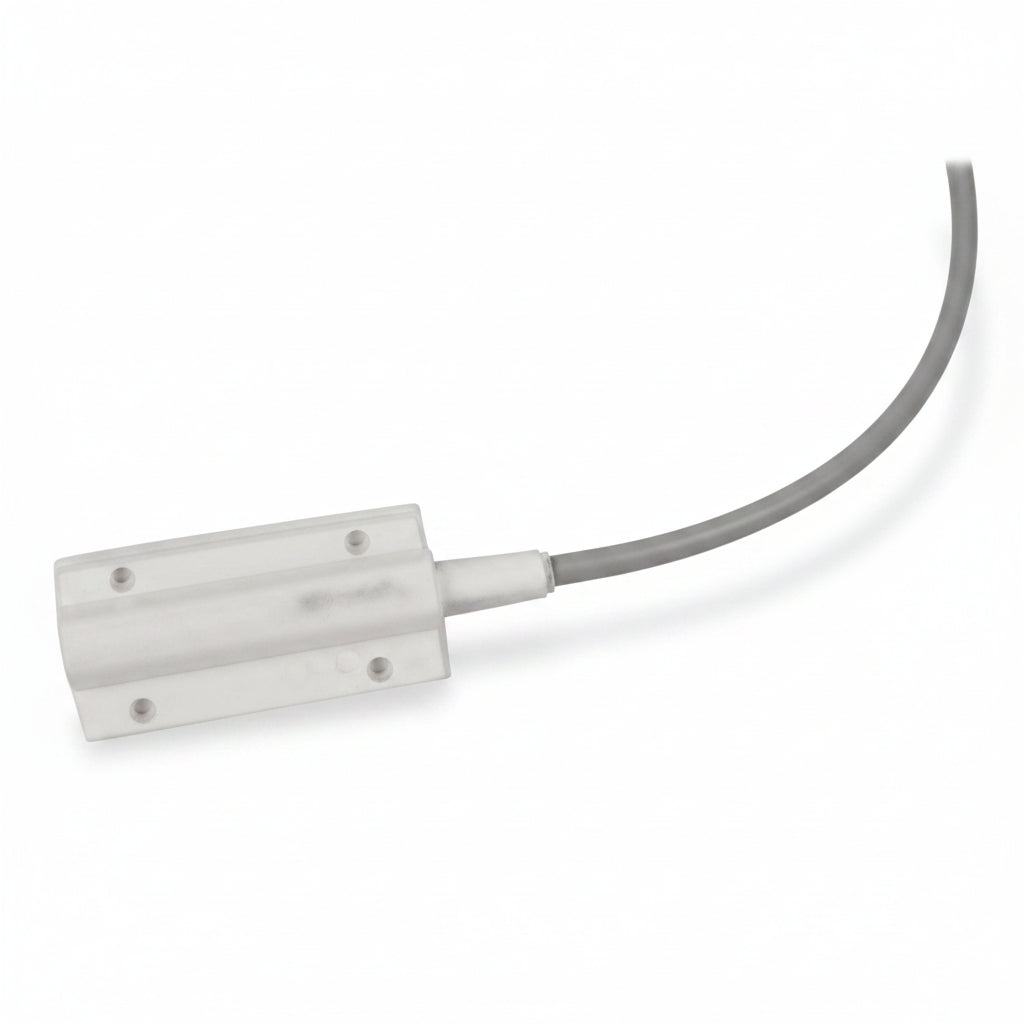

ADI PRO 0E-CBLMPULL3 Surface Mount Magnetic Contact

The ADI PRO 0E-CBLMPULL3 is a surface mount magnetic contact that watches a door, window or gate and signals when it opens. It uses a normally open reed with a closed loop (Form A) and 36″ armored leads, so the wiring is protected right at the device. Its high impact plastic housing suits commercial installs where durability and consistent performance matter, including fence gate applications.

Key features

• Surface mount design keeps installation simple.
• The 36″ (91.4cm) leads are armored for added protection.
• High impact construction supports durability and consistent performance.
• Reed Form N/O with a closed loop, Form A contact.
• Rated for up to 100VDC/AC, 500mA and 7.5W.
• Compact body measures 3.438″ x 1.625″ x 0.563″ (87.3 x 41.3 x 14.3mm).

Specifications

Brand: ADI PRO

Model: 0E-CBLMPULL3

Product Type: Magnetic Contact

Application/Usage: Fence Gate

Color: White

Material: Plastic

Connectivity Technology: Wired

Contact Form: Form A

Contact Type: Closed Loop

Reed Form: N/O

Max. Contact Rating: 100VDC/AC, 500mA, 7.5W

Input Voltage: 100V DC

Input Current: 500mA

Power Consumption: 7.5W

Power Source: DC Power

Durability: Heavy Duty

Armored: Yes

Lead Length: 36″ (91.4cm)

Dimensions (L x W x H): 3.438″ x 1.625″ x 0.563″ (87.3 x 41.3 x 14.3mm)

Indoor/Outdoor: Indoor

Installation Type: Commercial

Country of Origin: CN

Installation notes

Mount the contact on the fixed frame and the magnet on the moving leaf, keeping them aligned and close enough that the reed switches reliably. Keep the load within the contact rating, and route the armored leads so they are not pinched or strained as the gate or door moves.
