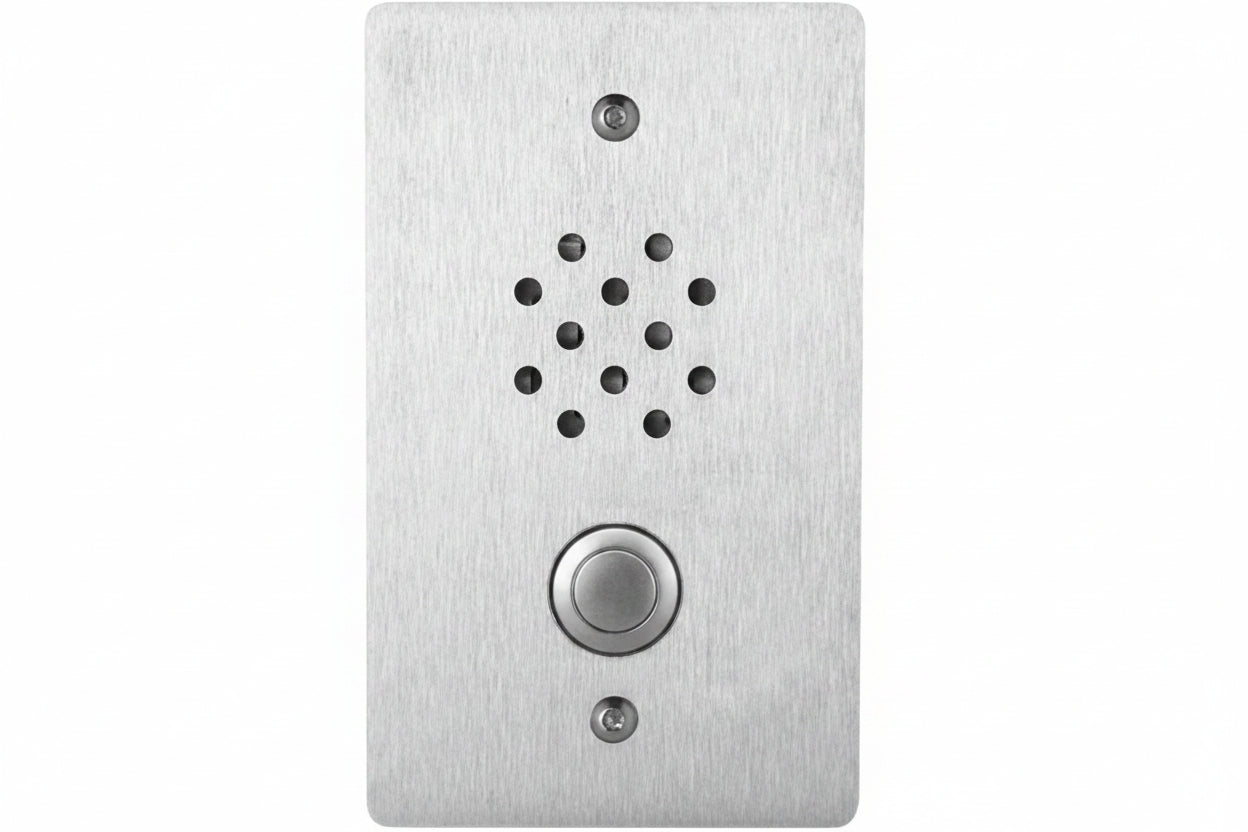

Aiphone LE-SS-1G 1-Gang Door Station, Vandal and Weather Resistant, Stainless Steel

The Aiphone LE-SS-1G is a 1-gang stainless steel door station for commercial entrances that need weather and vandal resistance. It is a wired sub station that lets visitors call in and talk with a master station, and it is built from 12-gauge stainless steel with a baffle-protected speaker. It suits installers specifying outdoor flush-mount intercom points for LE series systems.

Key features

• The 12-gauge stainless steel panel is built to resist both weather and vandalism.
• The speaker sits behind a baffle and is moisture and puncture resistant.
• It provides communication and call-in to the master station.
• Communication is hands-free once the master station answers.
• It mounts flush in the wall with a 1-gang box or ring, or directly on the wall with an SBX-1G.
• A red mushroom-type call button is used on the LE-SSR variant.

Specifications

Brand: Aiphone

Model: LE-SS-1G

Product Series: LE

Product Type: Audio Door Station

Application/Usage: Commercial

Indoor/Outdoor: Outdoor

Material: Stainless Steel

Color: Silver

Mount Type: Flush Mount

Connectivity Technology: Wired

Power Source: AC Power

Input Voltage: 12V DC

Height: 4.50″

Width: 2.80″

Depth: 2.80″

Area Coverage: 1570'

TAA Compliant: Yes

NDAA Compliant: Yes

Environmentally Friendly: Yes

Country of Origin: US

Installation notes

Use 3-conductor, overall-shielded cable (Aiphone #82223 in 22AWG or #82183 in 18AWG) and keep the run to the farthest master station within the distance limit for the wire gauge you choose. Set the 1-gang box or ring flush in the wall before mounting the panel, or use the SBX-1G where surface mounting is needed.
