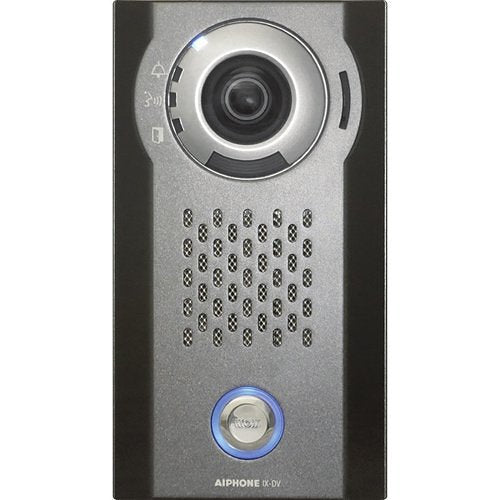

Aiphone IX-DV Surface Mount IP Video Door Station, SIP Compatible, Vandal Resistant, Aluminum

The Aiphone IX-DV is a surface-mount IP video door station for door entry, built for installers and businesses that want a vandal-resistant station on a standard network. It connects over Cat-5e/6 cable, supports SIP for integration with Cisco Unified Call Manager, and is IP65 rated for weather resistance. The aluminum body and stainless steel faceplate suit exposed entrances.

Key features

• Uses SIP to integrate with Cisco Unified Call Manager, so calls can be answered off-site.
• ONVIF Profile S compliant.
• Includes a 1.23MP fixed color camera with manual vertical adjustment of +15° or -8°, plus a white LED for low-light illumination.
• Captures audio and video of active conversations to a microSD card, which Aiphone does not provide.
• Offers two contact outputs for door release and external signaling.
• Powers over PoE (802.3af) with PoE pass through (802.3at Type 2 PoE+).

Specifications

Model: IX-DV

Brand: Aiphone

Product series: IX

Product type: IP Video Door Station

Application: Door Entry

Mount type: Surface Mount

Material: Aluminum

Color: Silver

Durability: Vandal Resistant

Connectivity: Wired

Input voltage: PoE

Power consumption: 5.28 W

Image sensor type: CMOS

Effective camera resolution: 1MP

Minimum illumination: 5.0 lux

Width: 4.50″

Height: 8.10″

Depth: 2.10″

TAA compliant: No

Country of origin: TH

Package contents: IX-DV Video Door Phone Sub Station, Bracket

Installation notes

Run Cat-5e/6 cable to the station location and confirm the switch or injector supplies PoE before commissioning. Set the camera's vertical angle by hand during setup, and check the view at the actual entrance, including at night with the white LED on.
