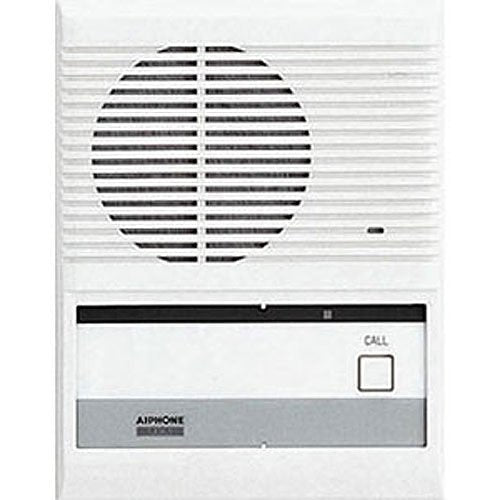

Aiphone AX-A Surface Mount Indoor Sub, White

The Aiphone AX-A is a white, surface-mount indoor sub station from the AX series, built to answer and talk to a master station over wired connections. It suits installers and property owners who need an indoor sub station that can sit on a desk or mount directly to a wall or 1-gang box. A privacy feature stops the master station from monitoring the room unless you want it to, and the unit is made in the US.

Key features

• Connects to the system with Cat-5e wiring.
• Offers hands-free communication once the master station answers.
• Includes a privacy feature that blocks unwanted monitoring from the master station.
• Mounts on a desk, on a wall, or directly to a 1-gang box.
• Has a sturdy ABS plastic housing.

Specifications

Brand: Aiphone

Model: AX-A

Product Series: AX

Product Type: Audio Sub-Station

Application/Usage: Back Box

Color: White

Connectivity Technology: Wired

Form Factor: Wall Mount

Mount Type: Wall Mount

Input Voltage: 24V DC

Environmentally Friendly: Yes

TAA Compliant: Yes

NDAA Compliant: Yes

Country of Origin: US

Installation notes

Run the Cat-5e cable to the mounting location before you fix the station, and leave enough slack to terminate it cleanly at a wall or 1-gang box mount. Confirm the station is on a 24V DC supply and test hands-free talk and the privacy function with the master station before you close up the job.
