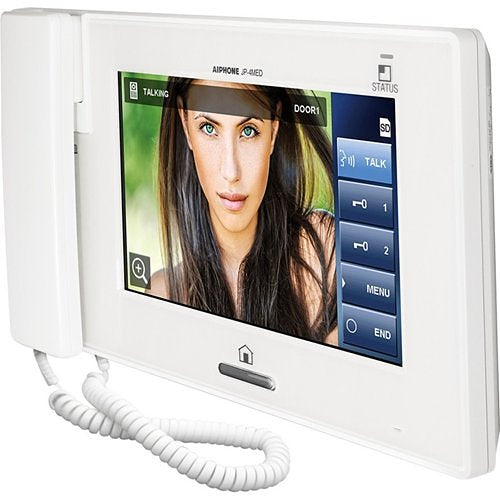

Aiphone JP-4MED 7" Video Master Station with Touchscreen LCD

The Aiphone JP-4MED is a 7″ touchscreen video master station for door entry, built to answer and monitor up to four door stations from a desk. It offers both hands-free (VOX) and handset (duplex) communication, and it works with JP Series and JM Series equipment. Its single-CAT5e connection, picture memory and room-to-room calling set it apart for homes and businesses that want a straightforward video intercom.

Key features

• The 7″ touchscreen LCD lets you monitor a door station with the touch of a button.
• You can talk hands-free (VOX) or pick up the handset for duplex conversation.
• Digital pan, tilt and zoom and brightness control help you get a clearer look at visitors.
• Room-to-room calling is built in, and the station is compatible with JP Series and JM Series.
• Hearing aid T-Mode compatibility supports users who wear hearing aids.
• Picture memory is built in, and an SD/SDHC card adds more recording capacity with protection from overwriting for selected calls.

Specifications

Model: JP-4MED

Brand: Aiphone

Product type: Video Master Station

Product series: JP

Application: Door Entry

Color: White

Screen size: 7″

Display type: TFT LCD

Touchscreen: Yes

Communication mode: Full-duplex

Connectivity: Wired

Number of doors: 4

Form factor / mount type: Desk mount / Desktop mount

Input voltage: 24V DC

Maximum wiring distance: 330′

Door release: N/O dry contact, 24V AC/DC, 500mA; use EL-12S (RY-24L for a larger contact rating, RY-3DL for 3 to 4 doors)

Height: 5.70″

Width: 10.00″

Depth: 1.20″

TAA compliant: No

Country of origin: TH

Installation notes

Place the desktop unit where the screen is easy to see and the handset is within reach, and keep the CAT5e run within the maximum wiring distance. Confirm the door release wiring and relay choice against the contact rating before commissioning.
