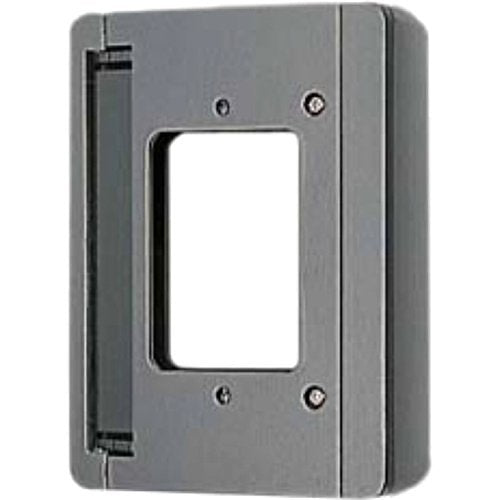

Aiphone KAW-D 30-Degree Angle Box for 1-Gang Surface Mount Door Stations

The Aiphone KAW-D (model KAWD) is a 30-degree angle mounting box for Aiphone 1-gang surface mount door stations. It tilts the station so the camera can be aimed toward the spot where a visitor stands, which helps at entries where a flat wall mount gives a poor view. It suits installers and property owners who need better camera coverage, and it can be mounted on either side of the door.

Key features

• Angles the door station to give the camera a better viewing angle.
• Works with Aiphone 1-gang surface mount door stations.
• Reversible design lets you mount it to the right or left of the door.
• Hinged cover is used for mounting the door station.
• Surface mounts directly to the wall or to a 1-gang box.
• Includes chime or receiver volume control.

Specifications

Brand: Aiphone

Model: KAW-D

Product Name: KAW-D 30 Degree Angle Mounting Box

Product Type: Mounting Bracket

Product Series: KB

Application/Usage: Door

Form Factor: Wall Mount

Mount Type: Wall Mount

Number of Gangs: 1

Material: ABS

TAA Compliant: Yes

NDAA Compliant: Yes

Country of Origin: JP

Package Contents: KAW-D 30 Degree Angle Mounting Box, packet of screws, installation and operation manual

Installation notes

Decide which side of the door the station will go on before mounting, since the box can be installed on either side, and confirm the camera angle points toward the standing position. Use the supplied screws and follow the included manual when attaching the box to the wall or a 1-gang box.
