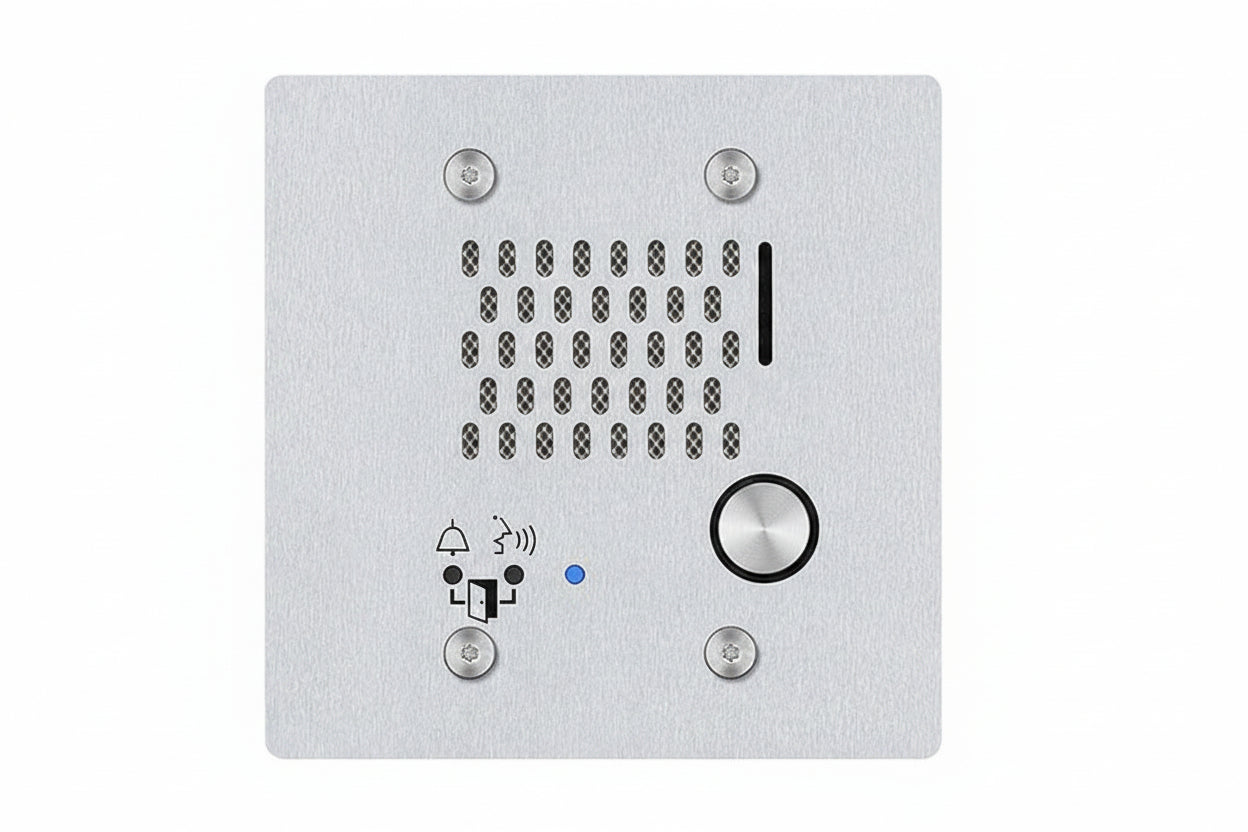

Aiphone IX-SS-2G SIP Compatible Flush Mounted IP Door Station, 2-Gang, Vandal Resistant, Stainless-Steel Cover

The Aiphone IX-SS-2G is a 2-gang, flush-mount IP door station for door entry, built for networked intercom systems. It is SIP compliant and can be used with or without other IX Series stations, so it suits installers and businesses adding an outdoor entry point to an IP setup. The stainless-steel cover is vandal resistant, and the station is IP65 rated for weather resistance.

Key features

• SIP 2 compliant, so it works with SIP-based systems.
• Powered over Ethernet with 802.3af PoE, so no separate power supply is needed.
• IP65 rating gives it weather resistance for outdoor locations.
• Includes a micro SD card slot; the card is not provided by Aiphone.
• Provides 1 contact output and 1 trigger input for connected devices.

Specifications

Brand: Aiphone

Model: IX-SS-2G

Product series: IX

Product type: IP Audio Door Station

Application: Door Entry

Color: Silver

Connectivity: Wired

Indoor/Outdoor: Outdoor

Form factor: Flush Mount

Mount type: Flush Mount

Width: 4.80″

Height: 4.80″

Power source: PoE (Power over Ethernet)

Environmentally friendly: Yes

TAA compliant: No

Country of origin: TH

Installation notes

This is a flush-mount station, so plan the wall cutout and back box for a 2-gang opening before running cable. Connect it to the network with Cat-5e/6 cable from a PoE switch or injector, and confirm network settings and any SIP or IX Series configuration before final mounting.
