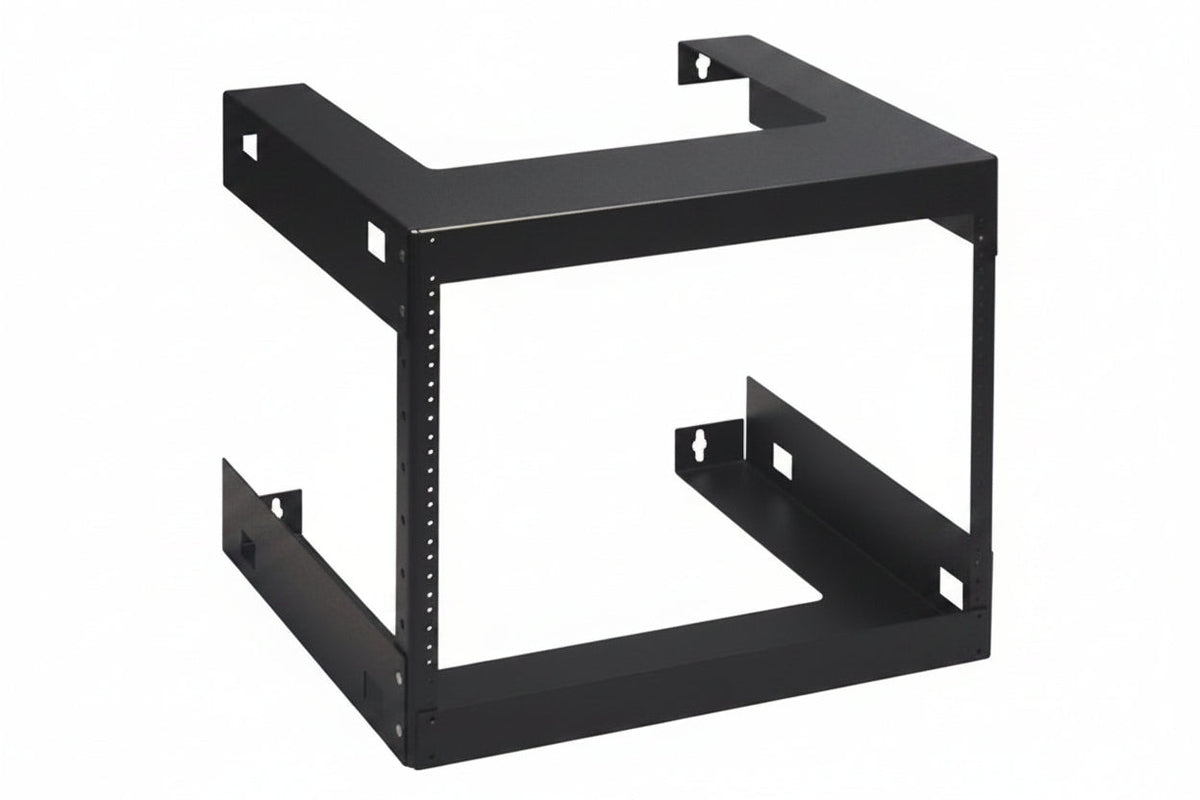

ICC ICCMSWMR08 18" Wall Mount Rack, 8U RMS

The ICC ICCMSWMR08 is an 18″ deep wall mount rack cabinet with 8 rack mount spaces (RMS), built for small data and telecom installations. It holds rack-mounted gear on the wall in a steel frame with a black powder coated finish, and it supports up to 125 lbs of equipment. It suits installers and businesses that need a compact, easy-to-assemble rack for networking or telecom equipment.

Key features

• Steel construction gives the rack a durable frame.
• Supports up to 125 lbs of mounted equipment.
• Offers 8 rack mount spaces, a size aimed at small data and telecom installations.
• Assembles easily, with assembly instructions included.
• Black powder coated finish complements rack mounted products.
• Part of a series also available in 15 and 30 RMS sizes.

Specifications

Brand: ICC

Model: ICCMSWMR08

Product Type: Rack Cabinet

Form Factor: Wall Mount

Mount Type: Wall Mount

Rack Mount Spaces: 8 RMS

Material: Steel

Color: Black

Maximum Weight Capacity: 125.00 lb

Rack Width: 19.0″

Rack Depth: 18.0″

Height: 17.80″

Width: 19.80″

Depth: 18.00″

Environmental Certification: RoHS

Environmentally Friendly: Yes

Country of Origin: CN

Package Contents: ICCMSWMR08 Wall Mount Rack Cabinet, #12 rack screws, assembly instructions #MRP-0400

Installation notes

Fasten the rack to a structural surface using hardware rated for the full load, including everything you plan to mount in it. Leave room around the cabinet for cable routing and access to the rear of the equipment.
