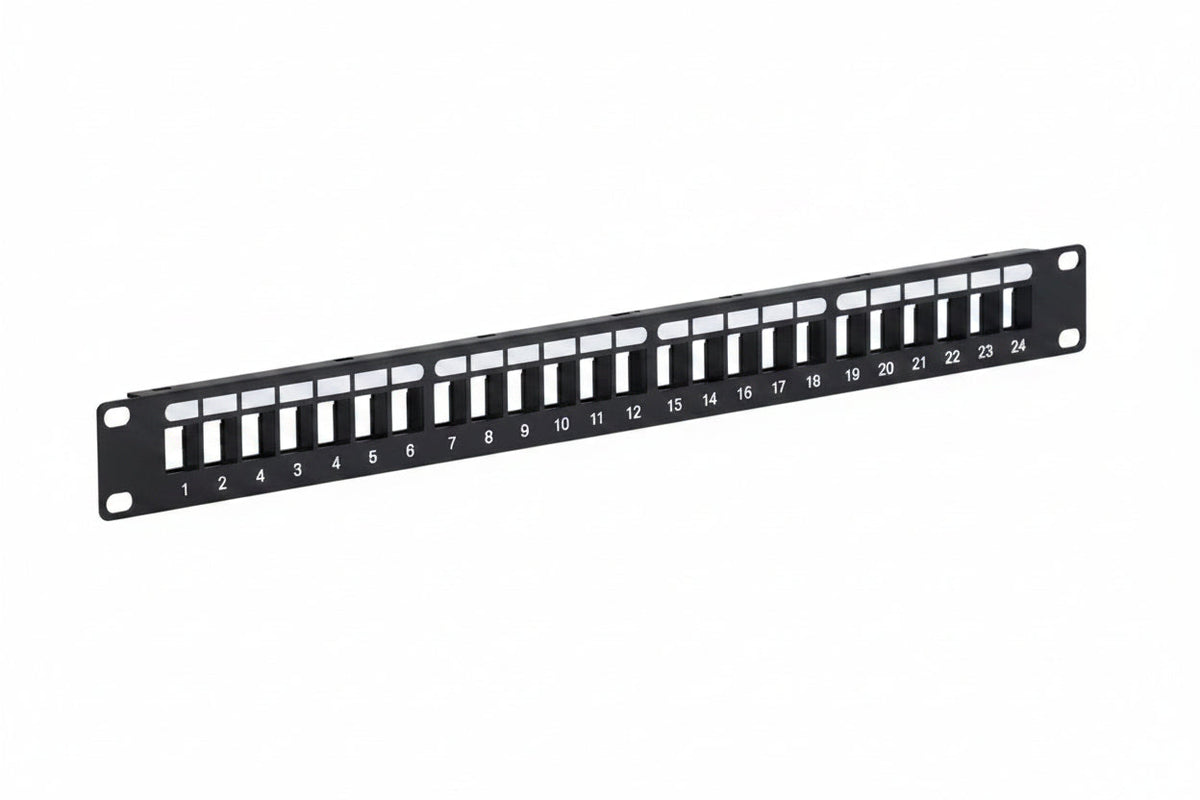

ICC IC107BP241 24-Port Blank Keystone 1U RMS Patch Panel with 19" Metal Rackmount Housing for Slim Profile Keystone Jacks

The ICC IC107BP241 is a 24-port blank keystone patch panel that takes up 1U of rack space. It holds slim-profile keystone jacks in a black steel housing, so installers can build out data, voice, audio and video connections in a single panel. Its flush mount design keeps the jacks level with the front face, which suits dense racks where a clean look and fewer cable snags matter.

Key features

• The panel is made from 16-gauge cold-rolled steel with a black powder coat finish for a rigid, stable fit in a rack.
• Keystone jacks sit flush with the front face, which reduces cable snags and keeps the installation neat.
• It accepts slim-profile keystone jacks, including CAT6A, CAT6, CAT5e, HDMI, RCA, USB and F-Type.
• The 24 ports fit in one rack unit, which helps in setups that need many connections in limited space.
• It is EIA-310-E compliant for standard 19-inch racks and cabinets, with pre-drilled holes for universal mounting.
• It is TAA compliant, UL Listed (E125268) and RoHS certified, and it meets Section 889 requirements.

Specifications

Brand: ICC

Model: IC107BP241

Product type: Blank Patch Panel

Number of ports: 24

Color: Black

Compatible rack unit: 1U

Compatible rack width: 19.0″

Form factor: Rack Mount

Mount type: Rack Mount

Length: 19.00″

Height: 0.50″

TAA compliant: Yes

UL Listed: Yes

Environmental certification: RoHS

Country of origin: TW

Packaged quantity: 1

Package contents: Flush Mount Blank Patch Panel, 4 x 6-Port High Density Bezel, 4 x #12-24 x 5/8″ Pan Head, Pilot Point Machine Screws

Installation notes

Mount the panel in the rack with the supplied #12-24 screws, then seat the keystone jacks in the bezels once the panel is secured. ICC's Keystone Connector Removal Tool (SKU: ICACSP481, sold separately) can make removing connectors easier in a dense panel.
