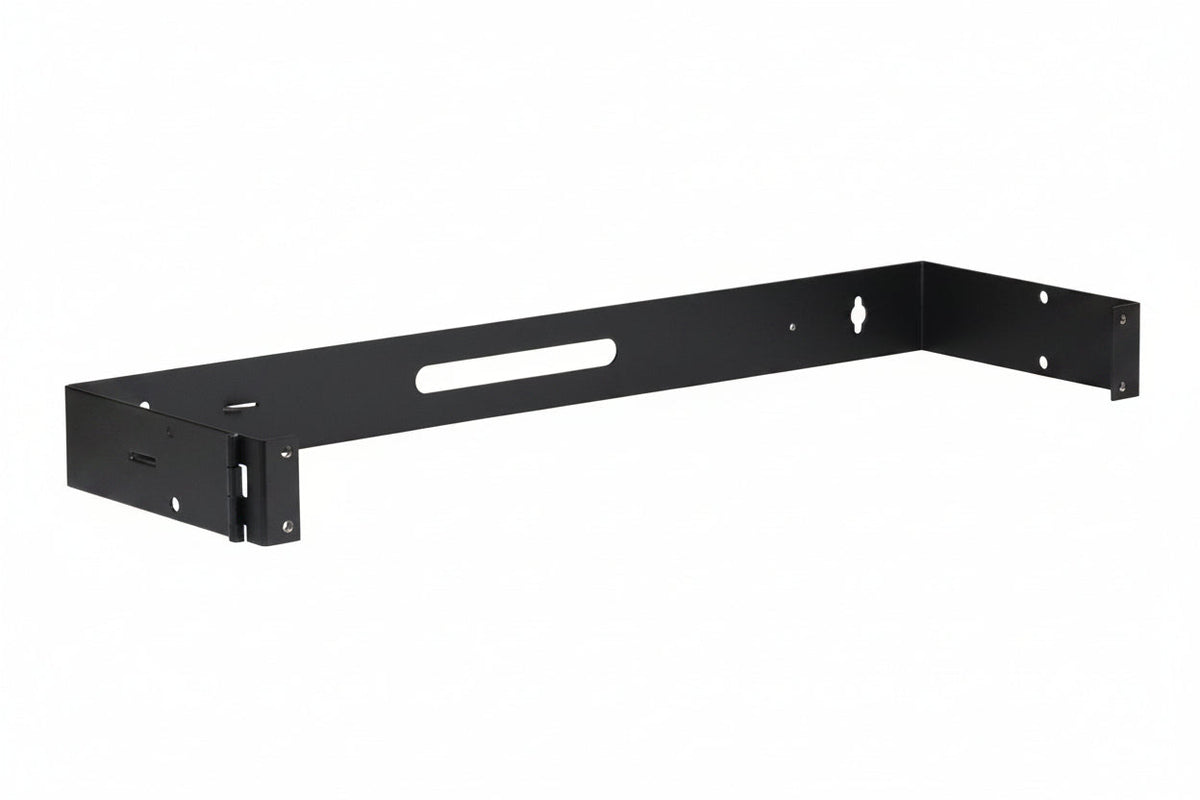

ICC ICCMSHB1RS 6" Wall-Mount Hinged Bracket, 1U RMS

The ICC ICCMSHB1RS (model ICC-MSHB1RS) is a black steel wall-mount hinged bracket that takes up 1 rack unit (1U). It holds voice and data equipment such as patch panels and lightweight active components, so it suits installers and businesses that need a compact wall-mounted rack. The hinged tab and rear openings make cable access easier during and after installation.

Key features

• Steel construction makes it a versatile base for different installation designs.
• The hinged design allows easy access during and after installation.
• Rear openings and a hinged tab simplify cable access.
• The 6″ depth suits patch panels and lightweight active components.
• Four #12 screws are included in the package.

Specifications

Brand: ICC

Model: ICCMSHB1RS

Product type: Cable Routing

Color: Black

Material: Steel

Width: 19.00″

Height: 1.75″

Depth: 41.66 cm

Rack depth: 6.0″

Rack units: 1 RMS

Weight: 10.00 lb

Environmental certification: RoHS

Country of origin: CN

Package contents: ICCMSHB1RS Wall Mount Hinged Bracket, 4 x #12 Screws

Installation notes

Fasten the bracket to a solid wall surface with the included screws, and make sure the wall can carry the weight of the bracket plus the equipment you plan to mount. Route cables through the rear openings and leave enough slack to swing the hinged section open for later service.
