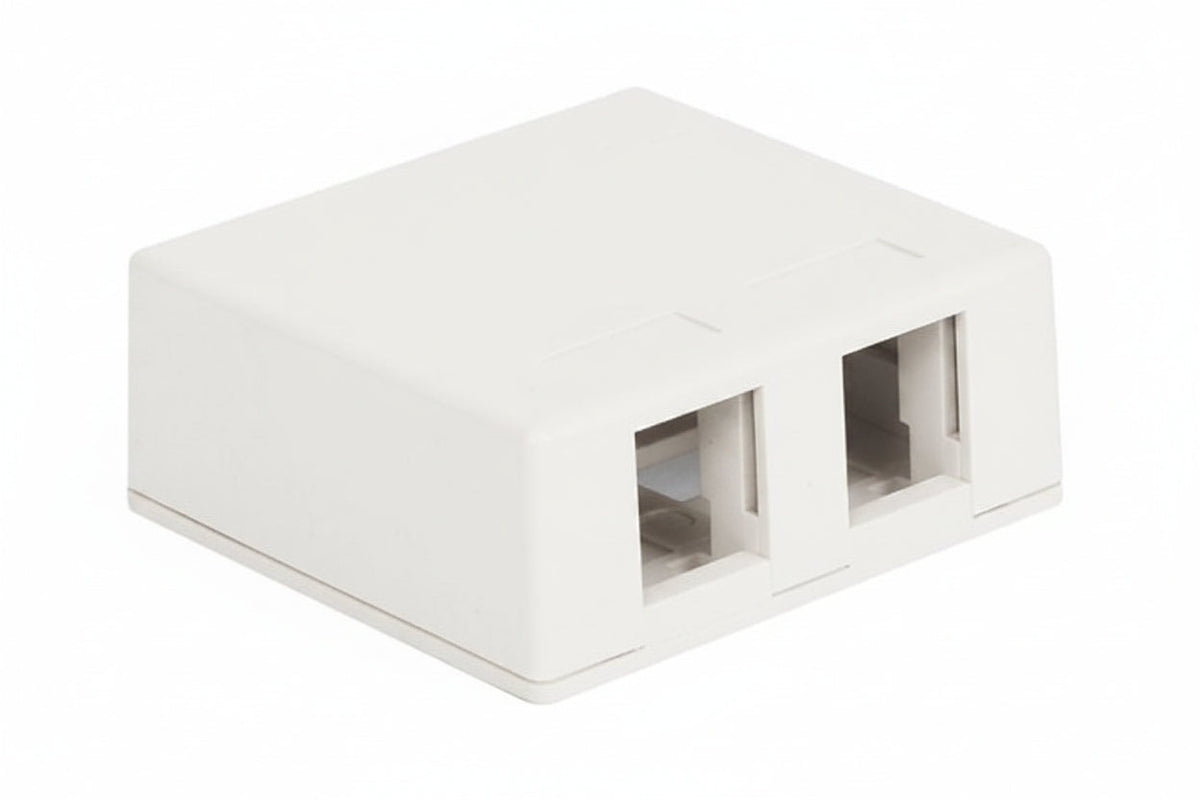

ICC IC107SB2WH Surface Mount Box, Ports, White

The ICC IC107SB2WH is a two-port surface-mount box in white ABS plastic that holds two modular connectors on a wall or other flat surface. It suits installers and homeowners who want a neat termination point without cutting into the wall or leaving loose cable on the floor. A recess for ID labels helps keep each port identified, and the box is UL listed.

Key features

• Mounts on the surface, which cuts down on loose wiring that can become a tripping hazard.
• Provides two sockets for modular connectors.
• Goes in with minimal labor.
• Has a white finish for a clean look.
• Is made of ABS plastic for durable protection.
• Includes a recess for ID labels.

Specifications

Brand: ICC

Model: IC107SB2WH

Product type: Mounting Box

Total number of sockets: 2

Color: White

Material: ABS

Height: 2.50″

Width: 2.30″

Depth: 1.00″

Weight: 1.30 lb

Environmental certification: RoHS

Environmentally friendly: Yes

Listing: UL listed

Packaged quantity: 1

Package contents: IC107SB2WH Surface Mounting Box; 1 x Surface Mount Box Base; 1 x Double Sided Adhesive Strip; 2 x Pan Head Sharp Point Tapping Screw; 1 x Installation Instructions Sheet

Installation notes

Choose a flat, clean, dry mounting surface, and use either the included adhesive strip or the tapping screws depending on the surface and how permanent the mounting needs to be. Label each port using the built-in recess once the cabling is terminated so the runs are easy to identify later.
