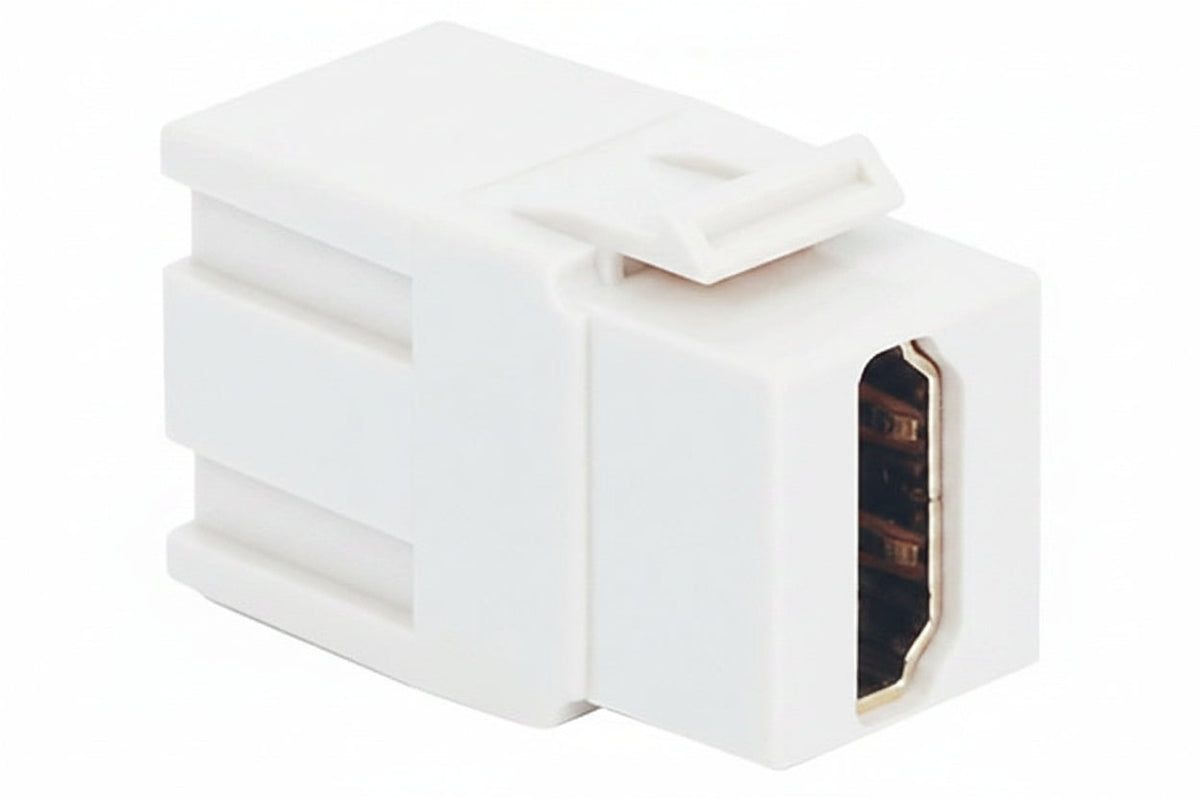

ICC IC107HDMWH HDMI Keystone Jack 4K at 60Hz, Female to Female HDMI Coupler, 180 Degree Insert for Wall Plate, HD Style, Single, White

The ICC IC107HDMWH is an HDMI keystone jack that couples two HDMI cables, female to female, so a run can end at a wall plate. It suits installers and homeowners building out home theater or commercial AV wiring who want a clean HDMI outlet in a white, HD-style insert. It supports 4K ultra HD video and carries copper foil shielding against EMI and RFI.

Key features

• Joins the audio and video connections at each end of the adapter.
• Supports 4K ultra HD video, along with 720p, 1080i, 1080p, 3D and HDCP.
• Carries 8 channels of digital audio on a single cable and is HDMI certified.
• Fits ICC classic and decorex style faceplates and inserts.
• Built to be rugged and durable for commercial or residential use.
• Copper foil shielding helps reject EMI and RFI.

Specifications

Brand: ICC

Model: IC107HDMWH

Product type: HDMI Module

Adapter type: HDMI

Connector type: HDMI

Color: White

Contact plating: Gold

Shielding: Copper foil shielding for rejection of EMI and RFI

Environmental certification: RoHS

Environmentally friendly: Yes

TAA compliant: No

Packaged quantity: 1

Weight: 0.03 lb

Installation notes

Snap the jack into a compatible ICC faceplate or insert and leave enough slack behind the wall plate so the HDMI cable is not bent sharply at the connector. Test the full run with the source and display before closing up the wall, keeping in mind that typical maximum HDMI cable distance is 33 ft (10 meters).
