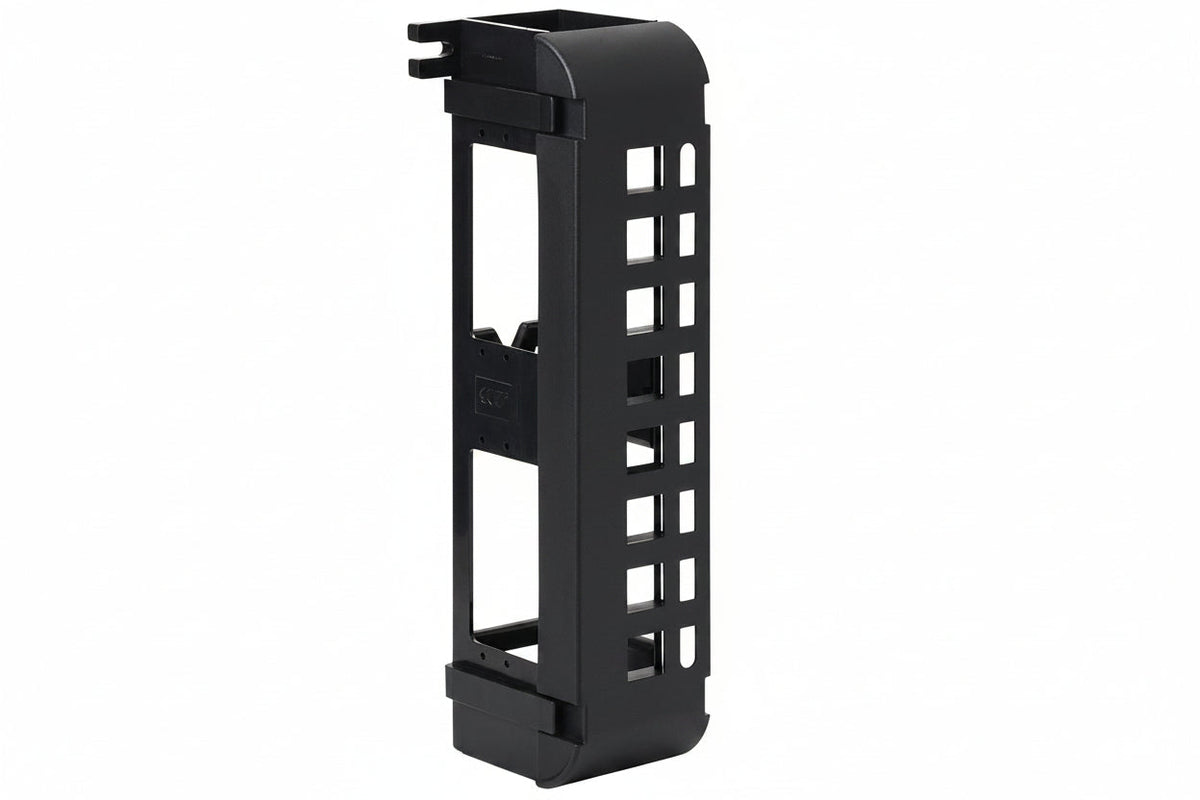

ICC IC107BP8VB Blank Wall Mount Patch Panel with Ports and Zero-U for EZ and HD Style

The ICC IC107BP8VB is a black, wall-mount blank patch panel with eight ports, built to distribute voice, data, audio, video and fiber optic connections. It suits installers and businesses who want a flush, finished-looking termination point that can be configured with snap-in modules. The two-piece design pairs the panel with a wall-mount bracket, and the flush vertical layout gives a rigid fit without needing color ID caps.

Key features

• Supports distribution of voice, data, audio, video and fiber optic signals.
• Two-piece design pairs the patch panel with a wall-mount bracket.
• Accepts a wide variety of snap-in modules, so the layout can be configured to the job.
• Flush mount design adds stability and a neat finished appearance.
• Provides eight ports across two 4-port bezels.

Specifications

Brand: ICC

Model: IC107BP8VB

Product name: Flush Vertical Blank Patch Panel

Product type: Blank Patch Panel

Number of ports: 8

Form factor: Wall Mount

Mount type: Wall Mount

Color: Black

Height: 10.00″

Width: 3.30″

Depth: 2.10″

Environmental certification: RoHS

Environmentally friendly: Yes

TAA compliant: Yes

Country of origin: TW

Package contents: Flush Vertical Blank Patch Panel, 2 x 4-Port Bezel, 1 x 89U Mounting Bracket

Installation notes

Fasten the mounting bracket to the wall first, then attach the patch panel so it sits flush and rigid. Terminate and label your cabling before snapping modules into the bezels, and leave enough slack behind the panel for tidy routing.
