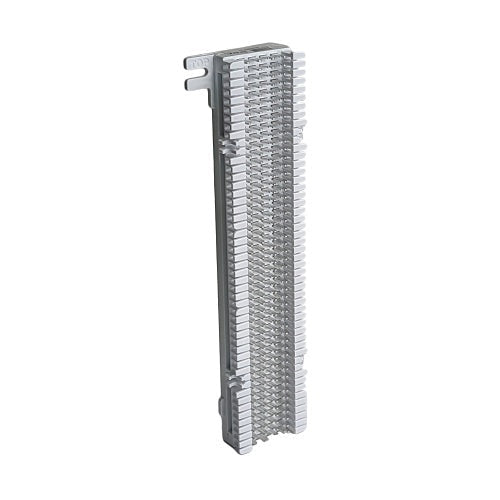

ICC IC066NB050 66M Wiring Block 50-Pair without Bracket, 66M1-50 Punch Down Block for Telephone System, Punch Down Cabling and Wire Termination, 10"H x 3.5"W x 1"D, White

The ICC IC066NB050 is a 66M-style, 50-pair punch-down wiring block for terminating telephone and data cabling. It suits installers and integrators building voice and data systems, including government and institutional jobs that call for TAA-compliant parts. It is a wall-mount block that needs no bracket, and it is made from UL 94V-0 flame-retardant, high-impact plastic.

Key features

• The high-impact plastic is built to withstand 3.0–20.0 ft-lbs/in for demanding environments.
• It is UL Listed (E125268) and made from UL 94V-0 flame-retardant plastic.
• It is UL 1863 compliant and TAA compliant for government and institutional installations.
• IDC contacts have 100µ″ tin plating, hold up through 200 punch-down cycles and accept 22–26 AWG wire.
• The wall-mount design needs no bracket, which keeps setup simple for telephone and data applications.

Specifications

Brand: ICC

Model: IC066NB050

Product type: Wire Block

Form factor: Wall Mount

Mount type: Wall Mount

Material: High Impact Flame Retardant Plastic

Width: 3.50″

Height: 10.50″

Weight: 0.53 lb

Environmental certification: RoHS

Country of origin: TW

Packaged quantity: 1

Package type: Bag

Accessories (sold separately): Bridging Clips IC066BRCLP, Cover IC066CV050, 89B Mounting Bracket ICMB89B0WH, 66 Punch Down Tool ICACSPDT00

Installation notes

Fasten the block to a solid wall surface at a height that leaves room to work the full row of terminations. Use a 66 punch-down tool to seat each conductor, and label the pairs as you terminate them so the field is easy to trace later.
